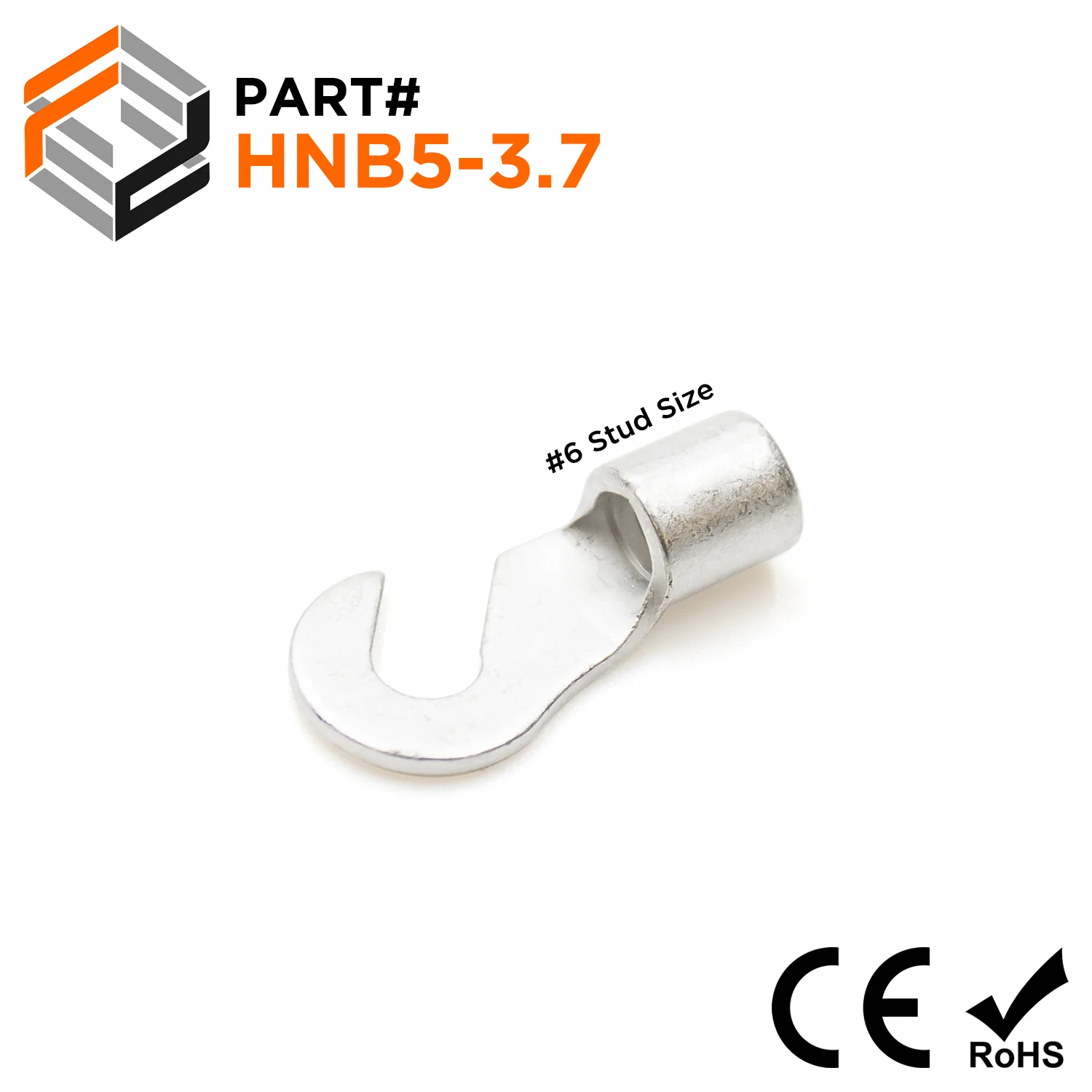

HNB5-3.7 - 12 to 10 AWG Non Insulated Hook Terminals, #6 Stud, UL Recognized, 100 Pieces
HomeStore

HNB5-3.7 - 12 to 10 AWG Non Insulated Hook Terminals, #6 Stud, UL Recognized, 100 Pieces

HNB5-3.7 - 12 to 10 AWG Non Insulated Hook Terminals, #6 Stud, UL Recognized, 100 Pieces

$16.95
HNB5-3.7 - 12 to 10 AWG Non Insulated Hook Terminals, #6 Stud, UL Recognized, 100 Pieces—
$16.95

The Story

NON INSULATED HOOK TERMINALS

Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.

INFORMATION & SPECIFICATIONS:

Wire Range: 12-10 AWG
Stud Size: #6 Stud
T: 0.03" (1.00mm)
L: 0.74" (18.9mm)
F: 0.37" (9.5mm)
E: 0.23" (6.0mm)
W: 0.37" (9.5mm)
D: 0.22" (5.6mm)
D1: 0.13" (3.4mm)
D2: 0.14" (3.7mm)
Terminal Material: Tin-Plated Copper
Seam: Brazed
Temperature Rating: 105°C - 600 Volts
AMP Rating: 9-17AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:
None:


Documents

Click to view product spec sheet:


Videos

Click below to check out our YouTube channel!

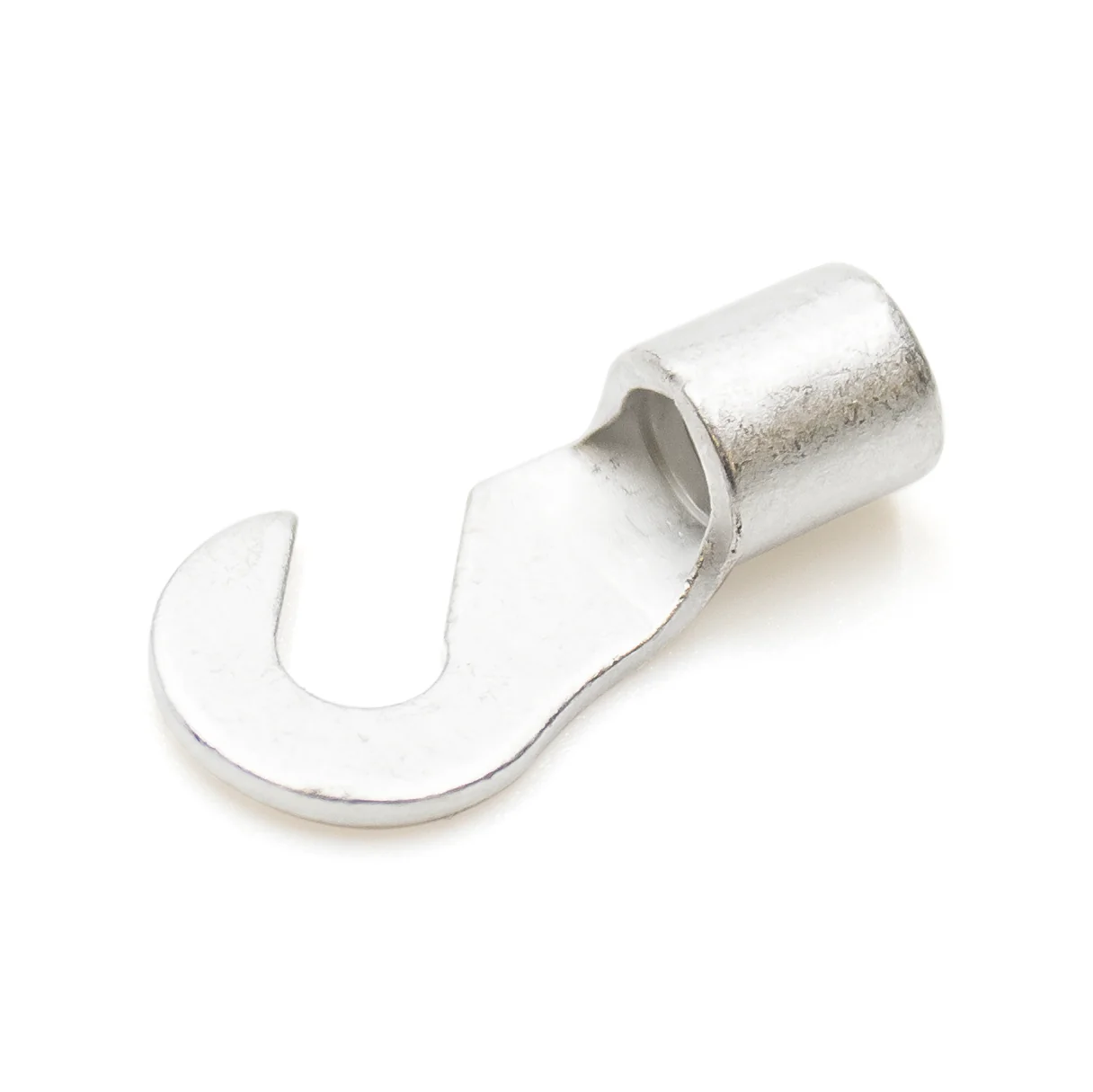

HNB5-3.7 - 12 to 10 AWG Non Insulated Hook Terminals, #6 Stud, UL Recognized, 100 Pieces - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

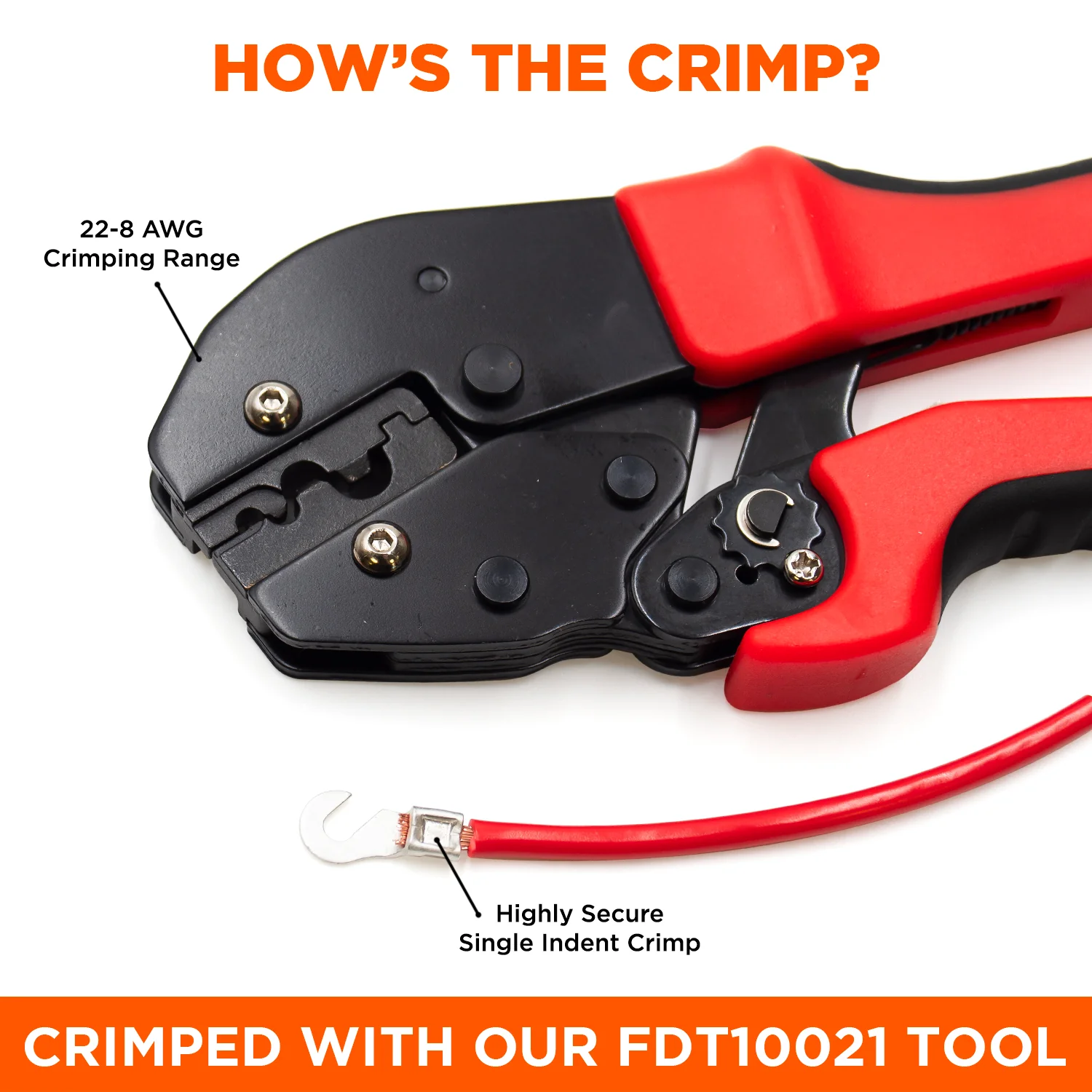

HNB5-3.7 - 12 to 10 AWG Non Insulated Hook Terminals, #6 Stud, UL Recognized, 100 Pieces - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

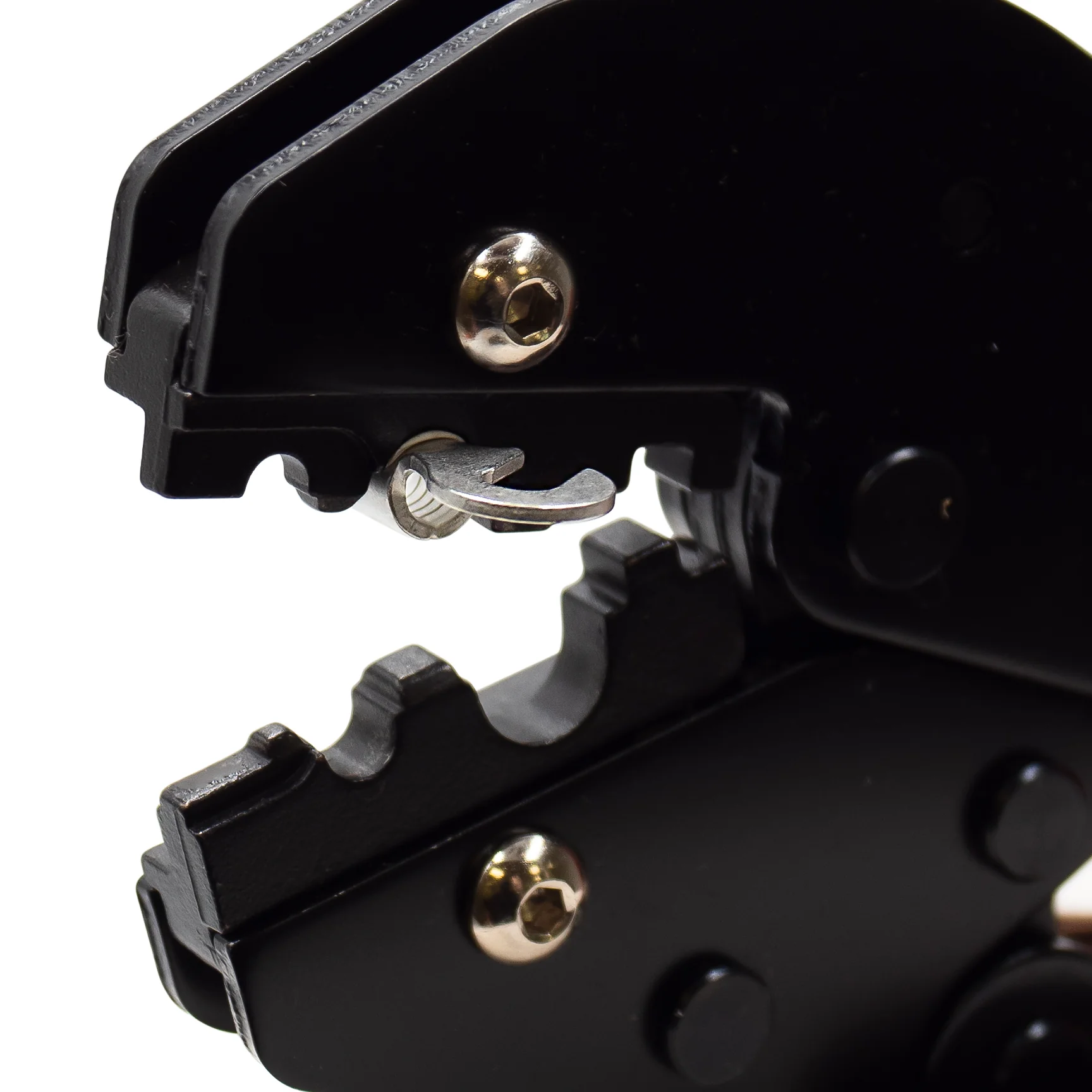

HNB5-3.7 - 12 to 10 AWG Non Insulated Hook Terminals, #6 Stud, UL Recognized, 100 Pieces - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

NON INSULATED HOOK TERMINALS

Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.

INFORMATION & SPECIFICATIONS:

Wire Range: 12-10 AWG
Stud Size: #6 Stud
T: 0.03" (1.00mm)
L: 0.74" (18.9mm)
F: 0.37" (9.5mm)
E: 0.23" (6.0mm)
W: 0.37" (9.5mm)
D: 0.22" (5.6mm)
D1: 0.13" (3.4mm)
D2: 0.14" (3.7mm)
Terminal Material: Tin-Plated Copper
Seam: Brazed
Temperature Rating: 105°C - 600 Volts
AMP Rating: 9-17AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes
