$1.28

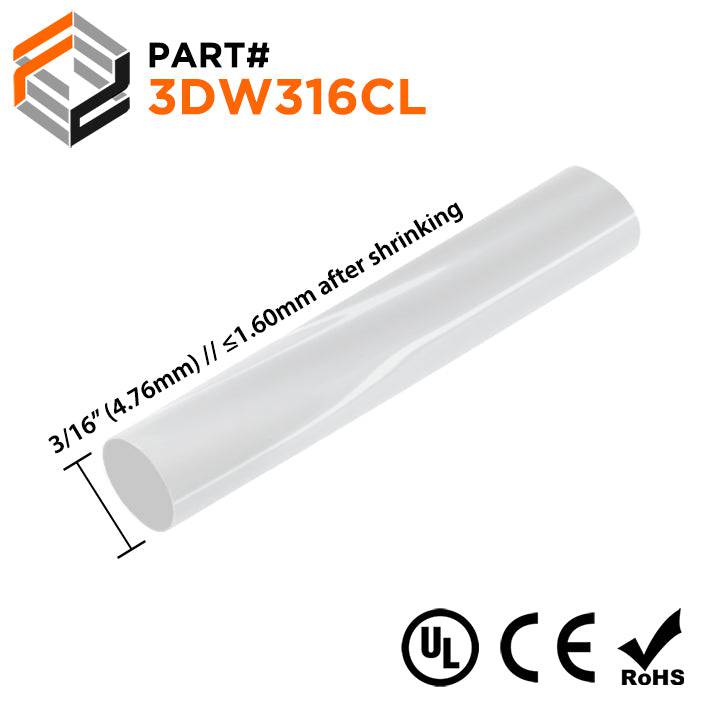

3DW316CL - Double Wall Heat Shrink Tubing - 3/16" - 3:1 Shrink Ratio - 4 Foot Strip / Clear—
$1.28
The Story
Flexible, thick adhesive lined dual wall heat shrinkable tube is manufactured by co-extrusion of polyolefin and hot-melt adhesive. Used to protect bundles wires and metal tubes against water and moisture.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Size (Before Shrinking): | 3/16" (4.76mm) |
| Size (After Shrinking): | ≤1.60mm |
| Wire Size: | 1.8-4.6mm (16-12 AWG) |
| Color: | Clear |
| Shrink Ratio: | 3:1 |
| Material: | Flexible Polyolefin |
| Operating Temperature: | -67°F to 275°F (-55°C to 135°C) |
| Voltage Rating: | 2500V |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
Flexible, thick adhesive lined dual wall heat shrinkable tube is manufactured by co-extrusion of polyolefin and hot-melt adhesive. Used to protect bundles wires and metal tubes against water and moisture.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Size (Before Shrinking): | 3/16" (4.76mm) |
| Size (After Shrinking): | ≤1.60mm |
| Wire Size: | 1.8-4.6mm (16-12 AWG) |
| Color: | Clear |
| Shrink Ratio: | 3:1 |
| Material: | Flexible Polyolefin |
| Operating Temperature: | -67°F to 275°F (-55°C to 135°C) |
| Voltage Rating: | 2500V |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
