4-WAY CONNECTOR TERMINAL SPLICES

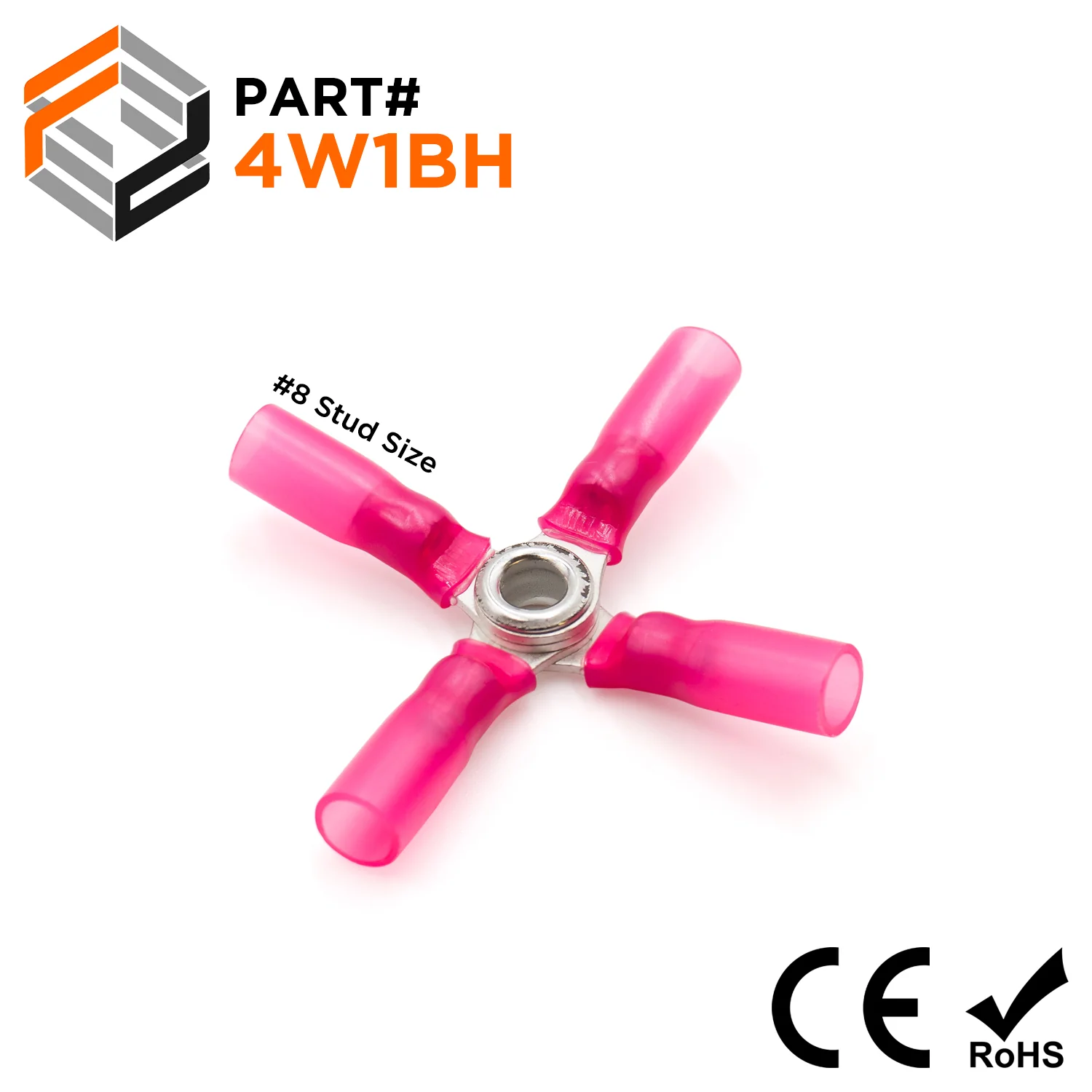

Heat Shrinkable 4-Way Connectors (also known as Terminal Splices) securely connect four wires with one terminal. Constructed of four ring terminals riveted together through the stud holes. The nylon insulation prevents incidental metal to metal contact that can cause shorts. Requires one crimp per wire.


DIMENSIONS & FEATURES:

Wire Range: 22 to 16 AWG
Color: Red
E: 0.728" (18.5mm)
F: 0.315" (8.0mm)
D1: 0.067" (1.7mm)
D2: 0.169" (4.3mm)
Terminal Material: Tin-Plated Copper
Insulation Material: Heat Shrink Nylon
Stud Size: #8 Stud
Shrink Temperature: 150°C
Voltage Rating: 600 Volts
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:



Description

4-WAY CONNECTOR TERMINAL SPLICES

Heat Shrinkable 4-Way Connectors (also known as Terminal Splices) securely connect four wires with one terminal. Constructed of four ring terminals riveted together through the stud holes. The nylon insulation prevents incidental metal to metal contact that can cause shorts. Requires one crimp per wire.


DIMENSIONS & FEATURES:

Wire Range: 22 to 16 AWG
Color: Red
E: 0.728" (18.5mm)
F: 0.315" (8.0mm)
D1: 0.067" (1.7mm)
D2: 0.169" (4.3mm)
Terminal Material: Tin-Plated Copper
Insulation Material: Heat Shrink Nylon
Stud Size: #8 Stud
Shrink Temperature: 150°C
Voltage Rating: 600 Volts
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:
