The Story

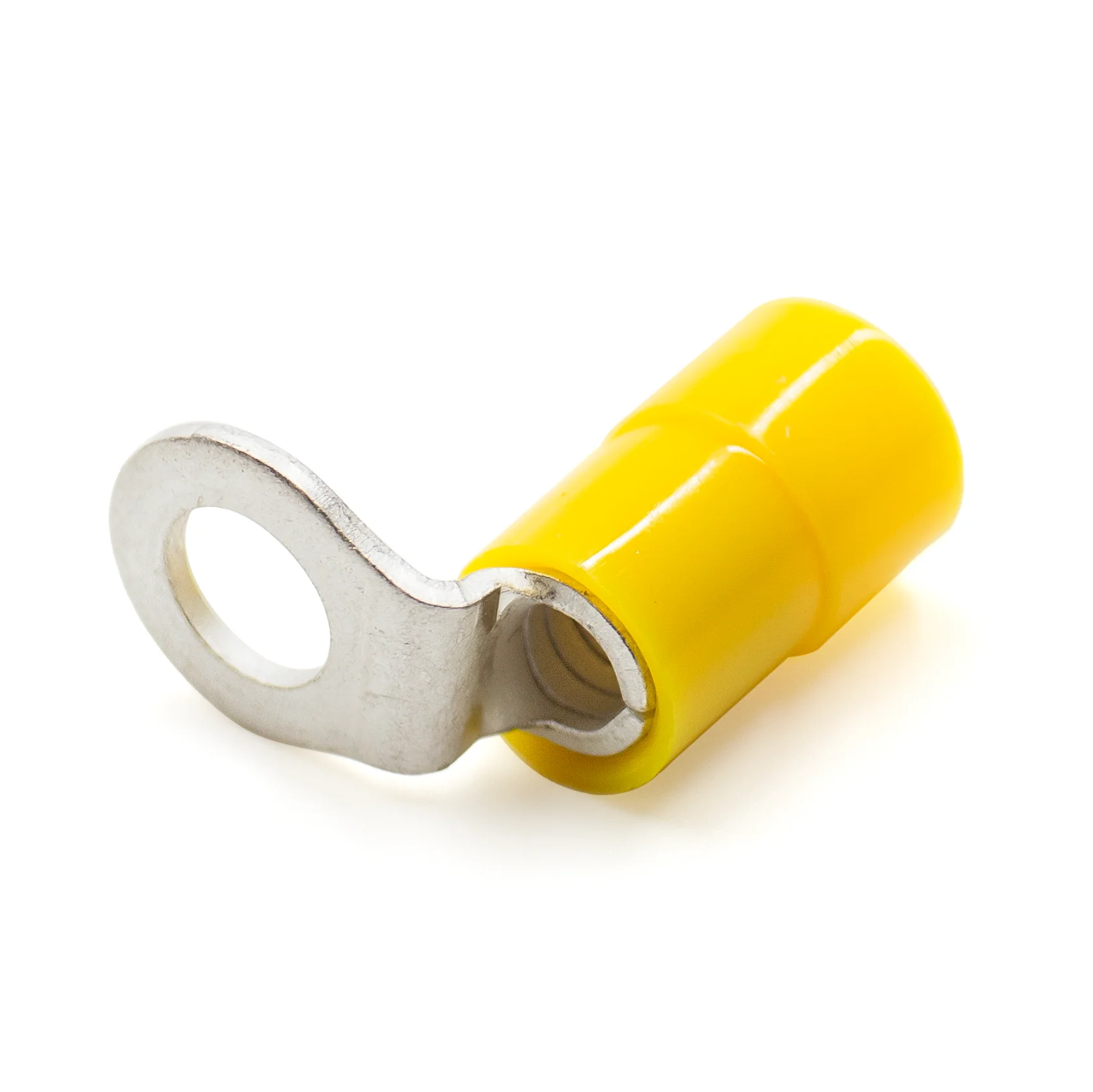

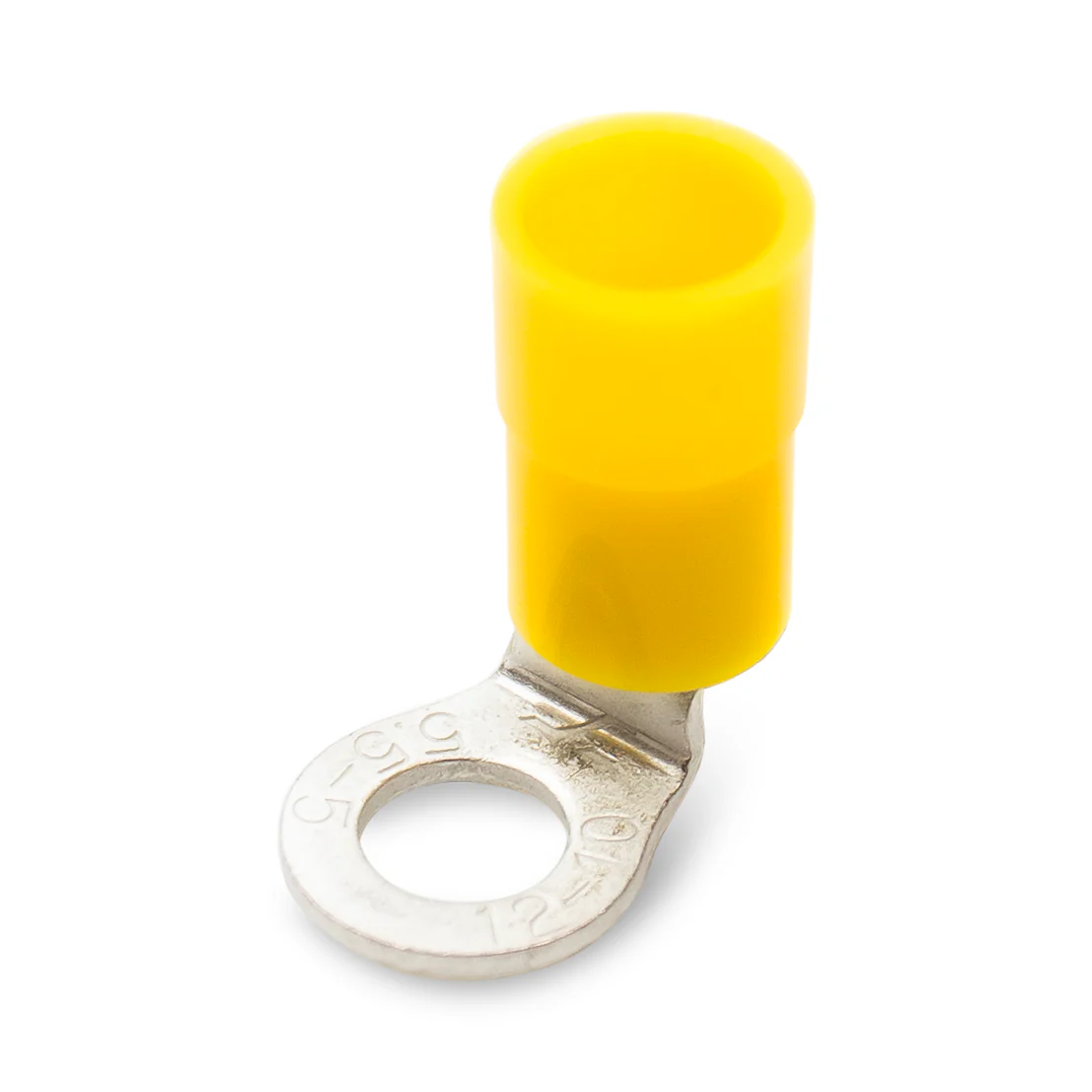

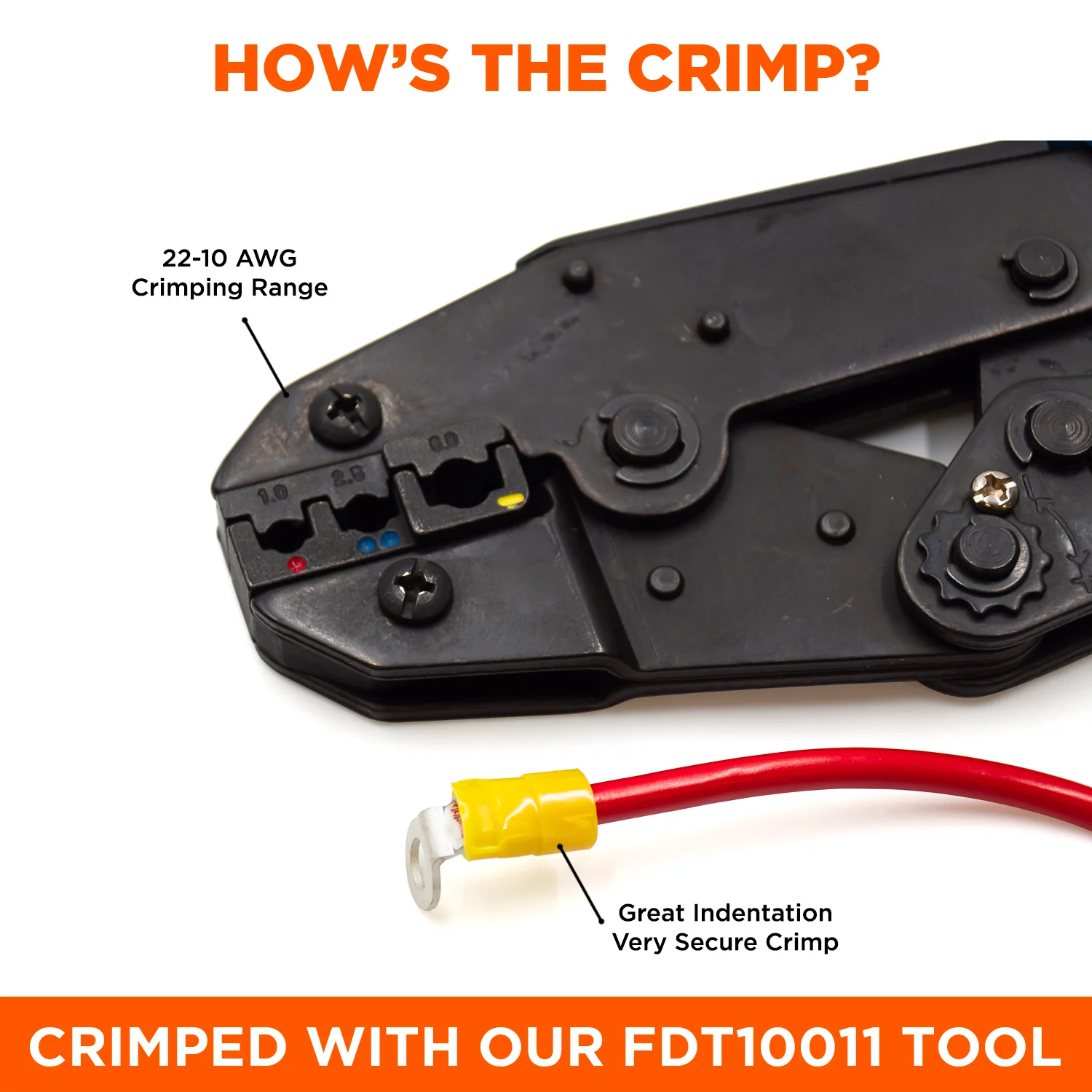

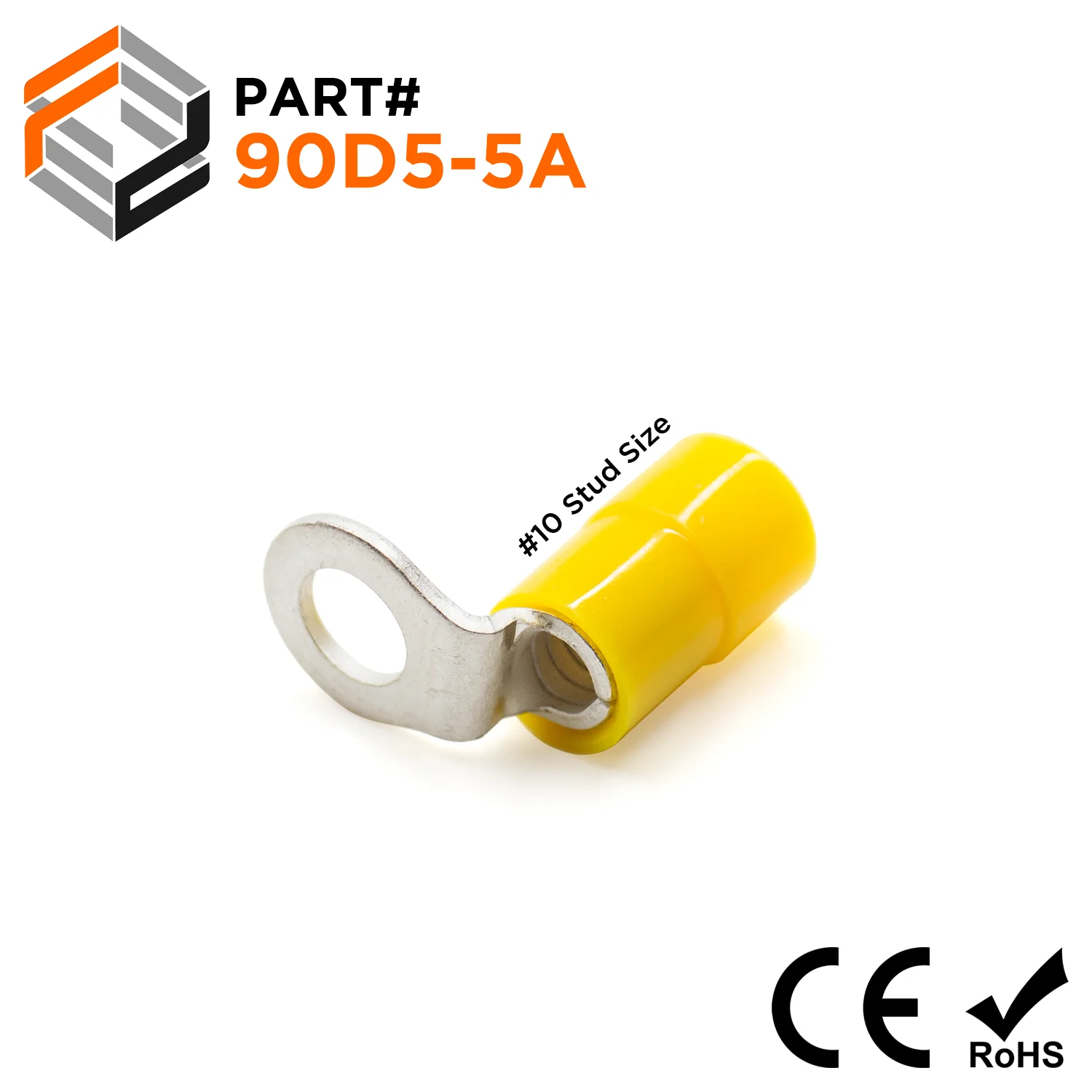

Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #10 Stud |
| Color: | Yellow |
| L: | 16.5mm (0.649") |
| B: | 9.5mm (0.374") |
| E: | 13.0mm (0.511") |
| D: | 6.4mm (0.251") |
| D1: | 3.4mm (0.133") |
| D2: | 5.4mm (0.212") |
| Flammability Rating: | UL 94 V-2 |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105°C) |
| Max Electrical Current: | 48Â AMP |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Click here to check out our YouTube channel:
