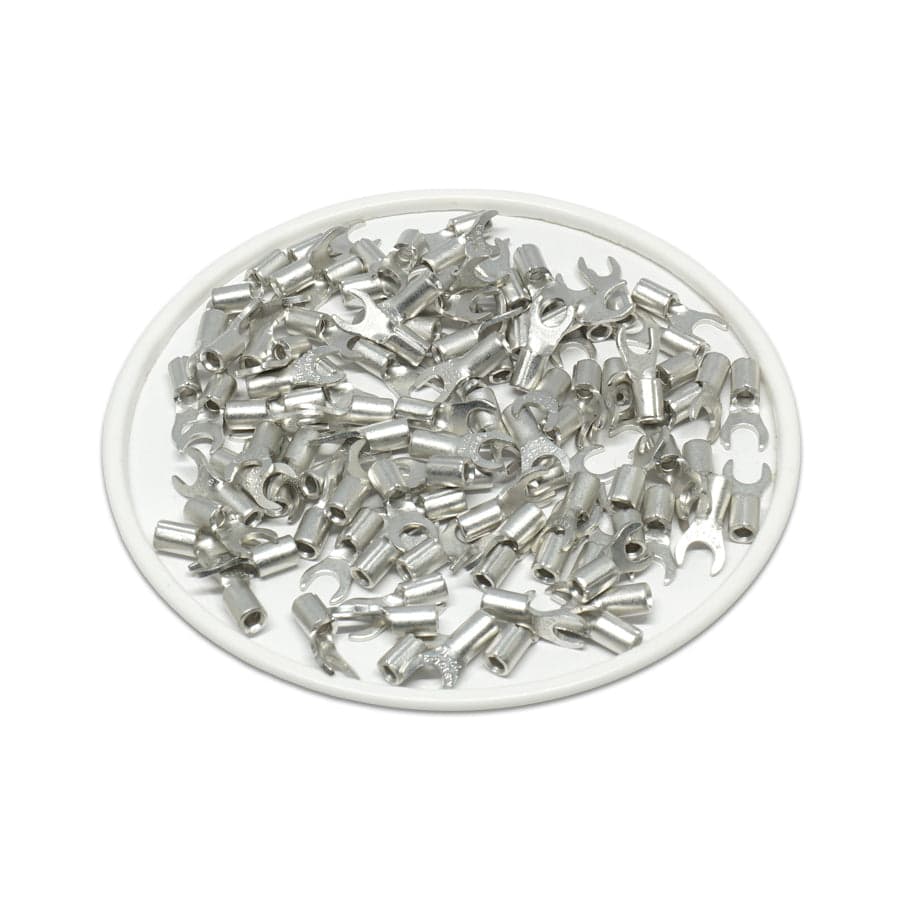

-70%22-16 AWG Non Insulated Fork Terminals, #4 Stud, UL Approved, 100 Pieces - ANB1-32—
$7.94
$2.38The Story
NON INSULATED FORK TERMINALS
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.
DIMENSIONS & FEATURES:
| Wire Size: | 22-16Â AWG |
| Stud Size: | #4 Stud |
| D2: | 3.2mm (0.13") |
| W: | 5.5mm (0.22") |
| F: | 5.0mm (0.20") |
| L: | 11.6mm (0.46") |
| E: | 4.8mm (0.19") |
| D: | 3.4mm (0.13") |
| D1: | 1.7mm (0.07") |
| T: | 0.75mm (0.03") |
| Material: | Tin Plated Copper |
| Seam: | Brazed |
| Electrical Rating: | 105°C - 600 Volts |
| Electrical Current: | 18Â AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
TECHNICAL DRAWING:
