16-14 AWG Non Insulated Fork Terminals, #10 Stud, UL Approved, 100 Pieces - ANB2-5
HomeStore

16-14 AWG Non Insulated Fork Terminals, #10 Stud, UL Approved, 100 Pieces - ANB2-5

16-14 AWG Non Insulated Fork Terminals, #10 Stud, UL Approved, 100 Pieces - ANB2-5

$4.20

Original: $14.00

-70%
16-14 AWG Non Insulated Fork Terminals, #10 Stud, UL Approved, 100 Pieces - ANB2-5—

$14.00

$4.20

The Story

NON INSULATED FORK TERMINALS

Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #10 Stud
D2: 5.3mm (0.21")
W: 9.5mm (0.37")
F: 7.4mm (0.29")
L: 15.6mm (0.61")
E: 4.8mm (0.19")
D: 4.1mm (0.16")
D1: 2.3mm (0.09")
T: 0.8mm (0.03")
Material: Tin Plated Copper
Seam: Brazed
Electrical Rating: 105°C - 600 Volts
Electrical Current: 30 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

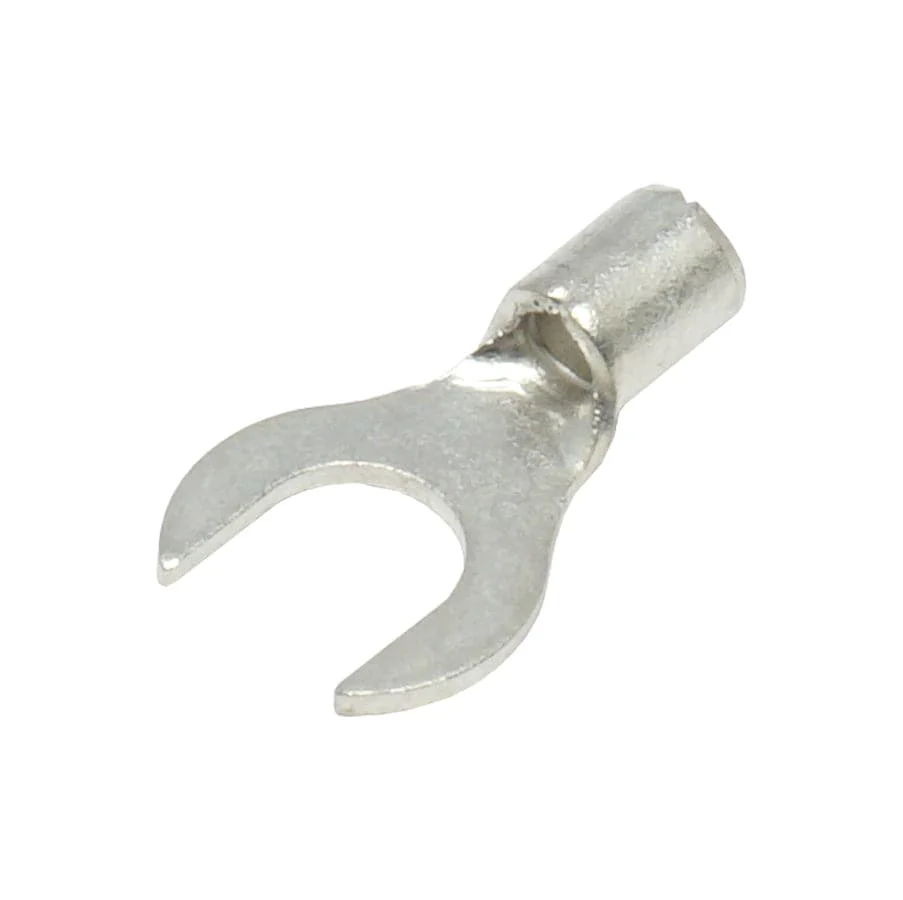

16-14 AWG Non Insulated Fork Terminals, #10 Stud, UL Approved, 100 Pieces - ANB2-5 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

NON INSULATED FORK TERMINALS

Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #10 Stud
D2: 5.3mm (0.21")
W: 9.5mm (0.37")
F: 7.4mm (0.29")
L: 15.6mm (0.61")
E: 4.8mm (0.19")
D: 4.1mm (0.16")
D1: 2.3mm (0.09")
T: 0.8mm (0.03")
Material: Tin Plated Copper
Seam: Brazed
Electrical Rating: 105°C - 600 Volts
Electrical Current: 30 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
