$0.49
Original: $1.64

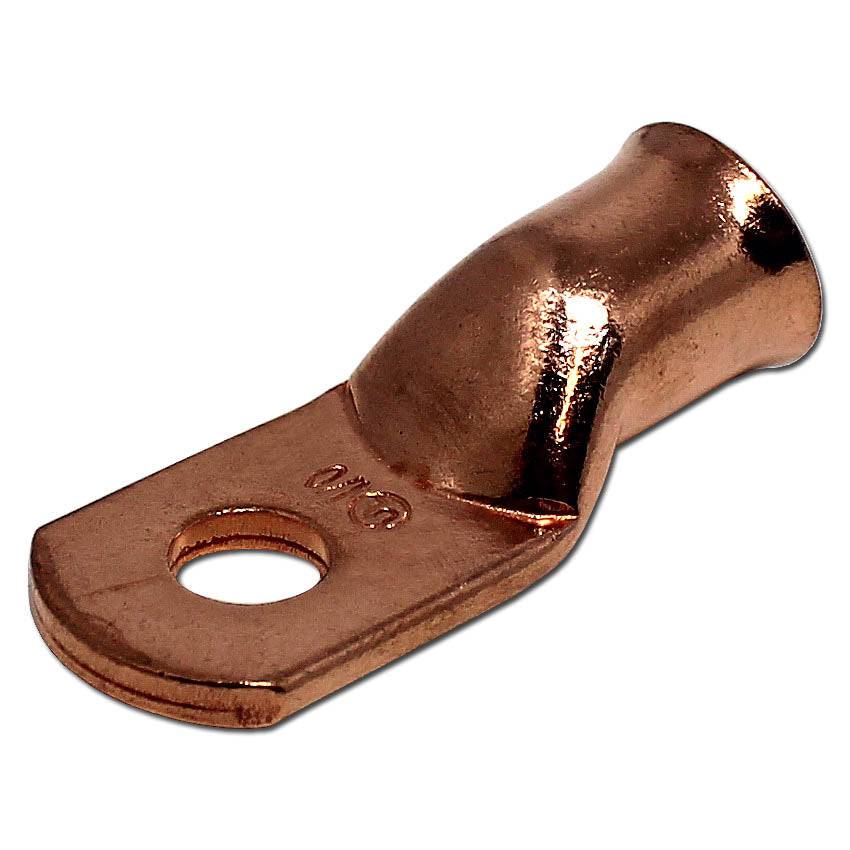

-70%BCL10516 - 1/0 AWG Copper Battery Cable Lugs, Terminal Lugs, 5/16" Stud, 1 Pieceā
$1.64
$0.49The Story
COPPER BATTERY CABLE LUGS
Our Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable.
- 100% Pure Copper Ā ā
- Thick & Durable ā
- UL Approved Ā ā
- RoHS & REACH Compliant ā
- CE Certified ā
DIMENSIONS & FEATURES:
| Wire Size: | 1/0 AWG |
| L: | 46.9mm (1.85") |
| L1: | 10.5mm (0.43") |
| D: | 18.4mm (0.73") |
| D1: | 13.0mm (0.51") |
| D2: | 10.4mm (0.41") |
| B: | 17.5mm (0.69") |
| E: | 8.1mm (0.32") |
| F: | 2.5mm (0.10") |
| Terminal Material: | Copper |
| Stud Size: | 5/16" |
| Temperature Rating: | 90Ā°C |
| Voltage Rating: | 35 KV |
| UL Recogonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
