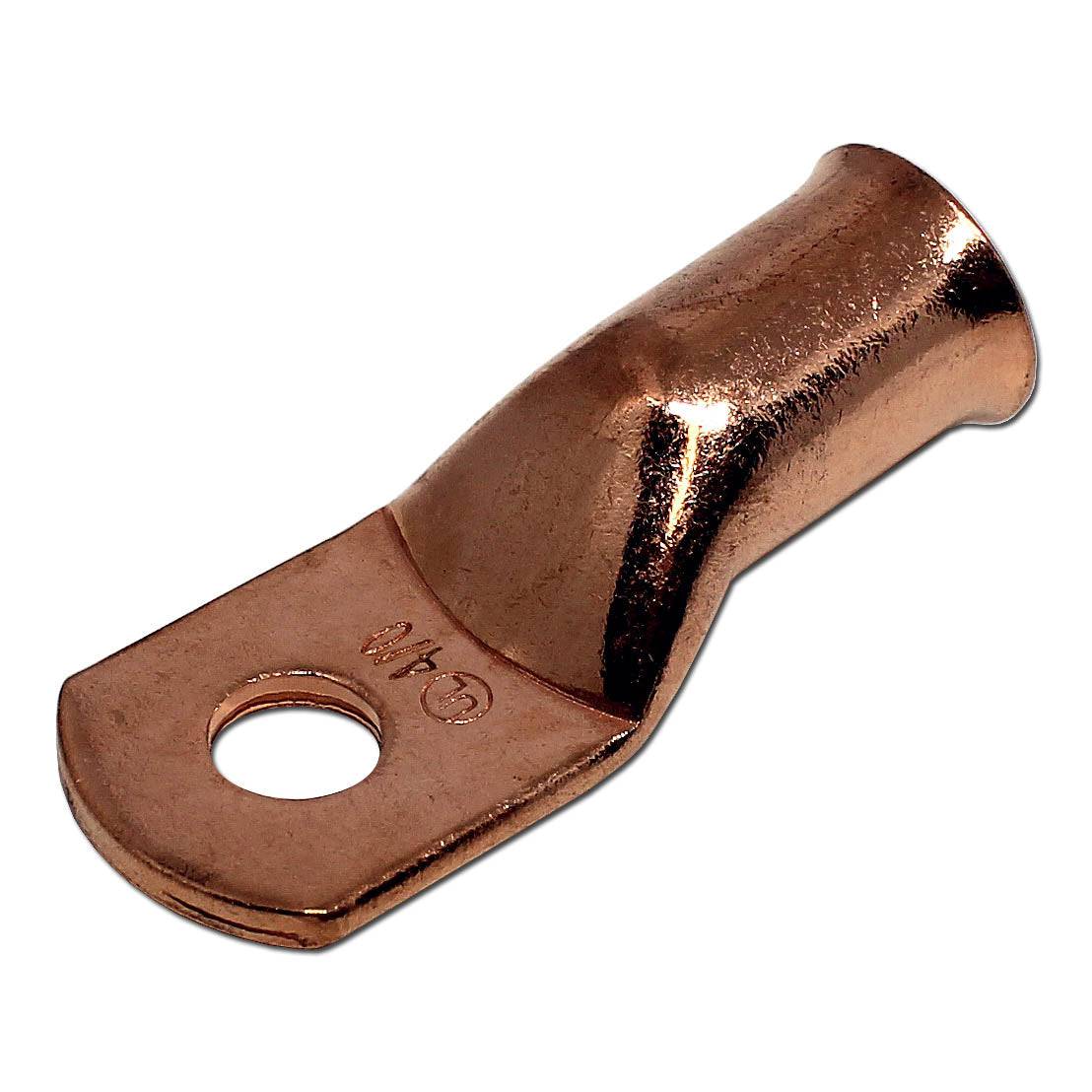

COPPER BATTERY CABLE LUGS
Our Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable.
- 100% Pure Copper Ā ā
- Thick & Durable ā
- UL Approved Ā ā
- RoHS & REACH Compliant ā
- CE Certified ā
DIMENSIONS & FEATURES:
| Wire Size: | 4/0 AWG |
| L: | 61.2mm (2.41") |
| L1: |
13.7mm (0.54") |
| D: | 25.8mm (1.02") |
| D1: | 17.4mm (0.69") |
| D2: | 14.2mm (0.56") |
| B: | 19.1mm (0.75") |
| E: | 6.6mm (0.26") |
| F: | 2.5mm (0.10") |
| Terminal Material: | Copper |
| Stud Size: | 1/4" |
| Temperature Rating: |
90Ā°C |
| Voltage Rating: | 35KV |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

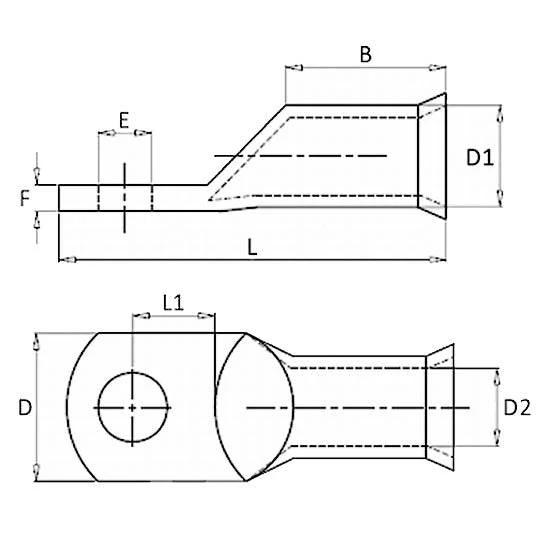

DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
