$0.22The Story

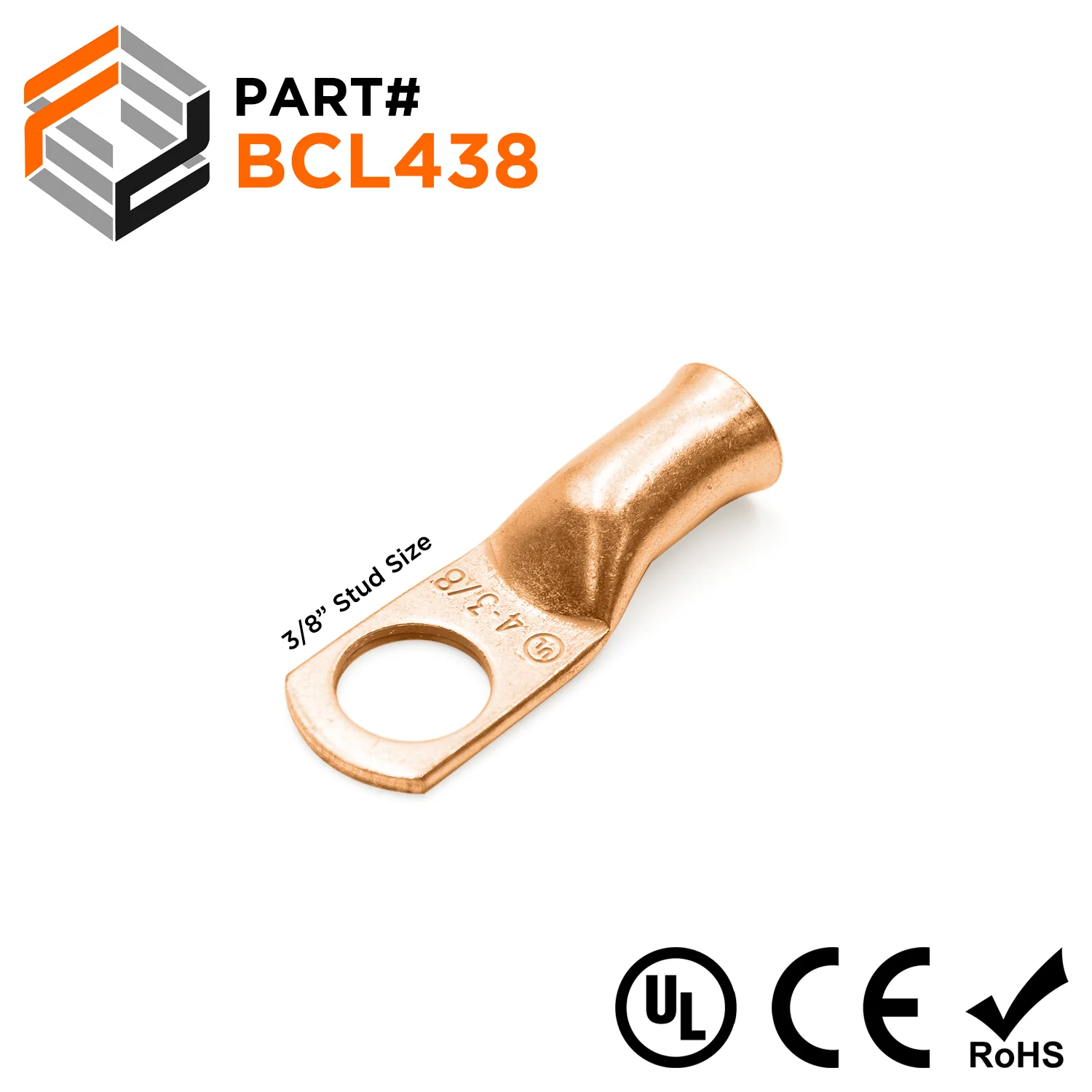

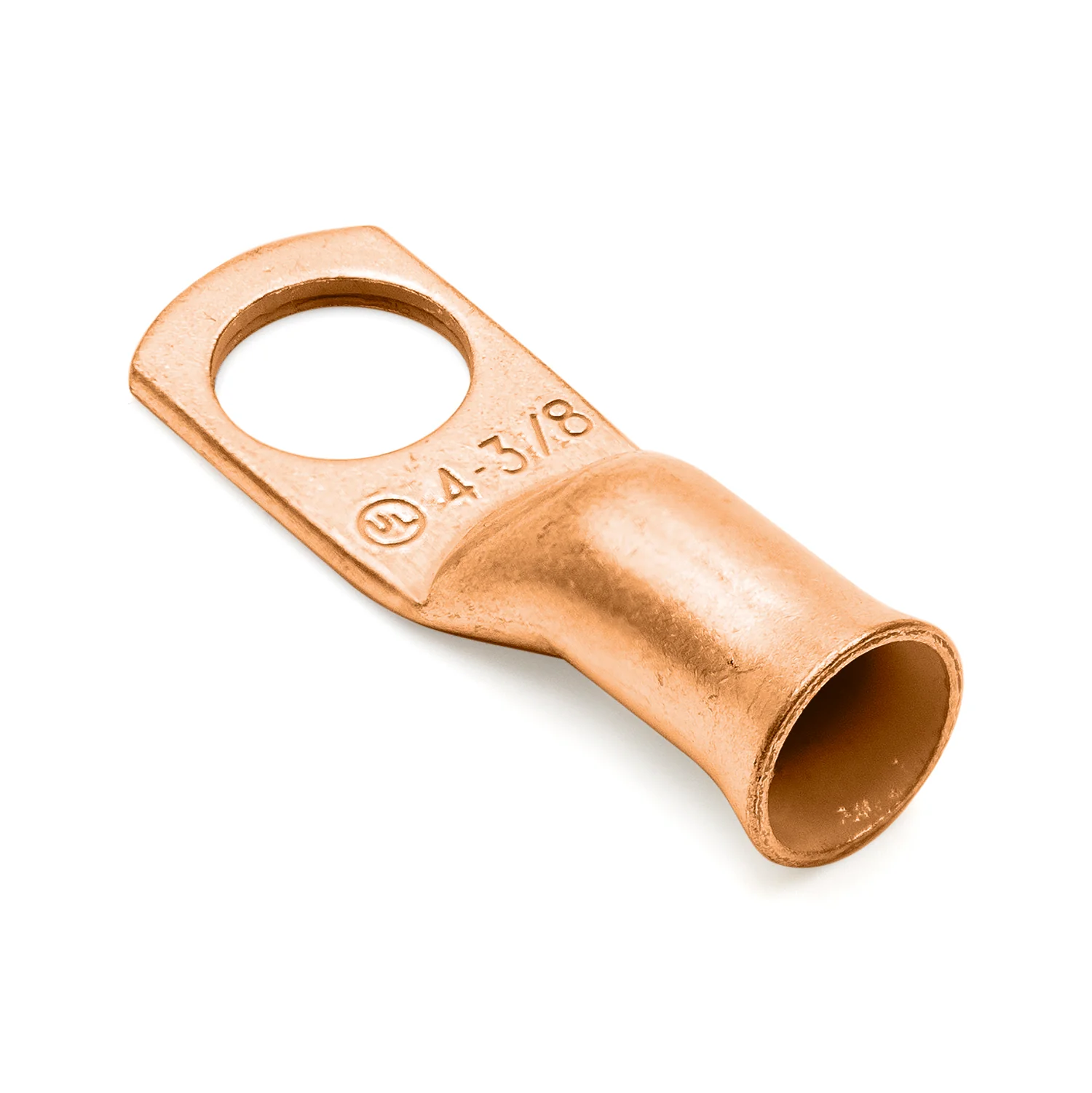

COPPER BATTERY CABLE LUGS
Our Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable.
- 100% Pure Copper Ā ā
- Thick & Durable ā
- UL Approved Ā ā
- RoHS & REACH Compliant ā
- CE Certified ā
DIMENSIONS & FEATURES:
| Wire Size: | 4 AWG |
| L: | 38.9mm (1.53") |
| L1: | 9.9mm (0.39") |
| D: | 13.8mm (0.54") |
| D1: | 9.1mm (0.36") |
| D2: | 7.1mm (0.26") |
| B: | 13.5mm (0.53") |
| E: | 10.4mm (0.41") |
| F: | 2.1mm (0.09") |
| Terminal Material: | Copper |
| Stud Size: | 3/8" |
| Temperature Rating: |
90Ā°C |
| Voltage Rating: | 35KV |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
Ā
