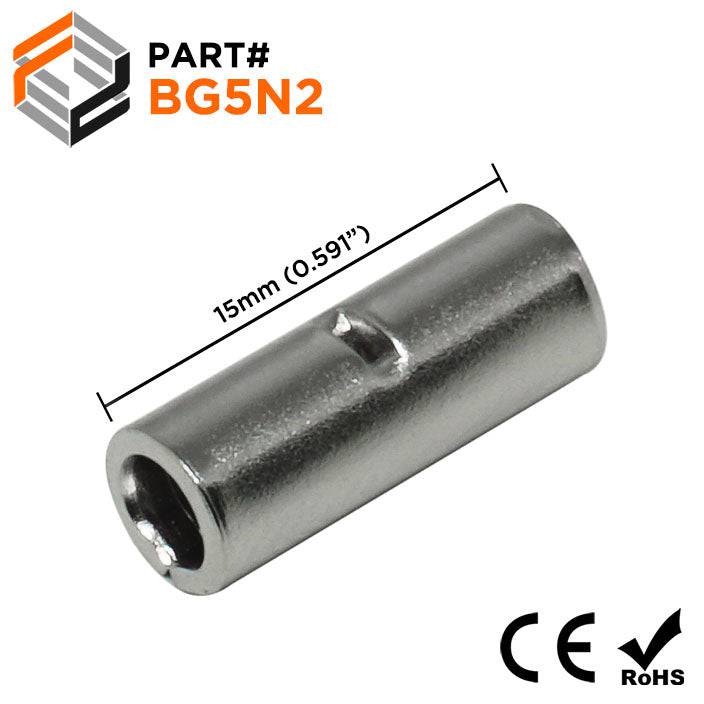

-70%BG5N2 - 12 to 10 AWG High Temp Butt Splice Connectors, Steel, 900°F, 100 Pieces—
$10.36
$3.11The Story
Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively,
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| L: | 15mm (0.591") |
| D: |
5.6mm (0.220") |
| D1: | 3.4mm (0.134") |
| Barrel: | Seamless |
| Configuration: | Straight |
| Material: | Nickel Plated Steel |
| Max Operating Temp: | 900°F (482°C) |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
