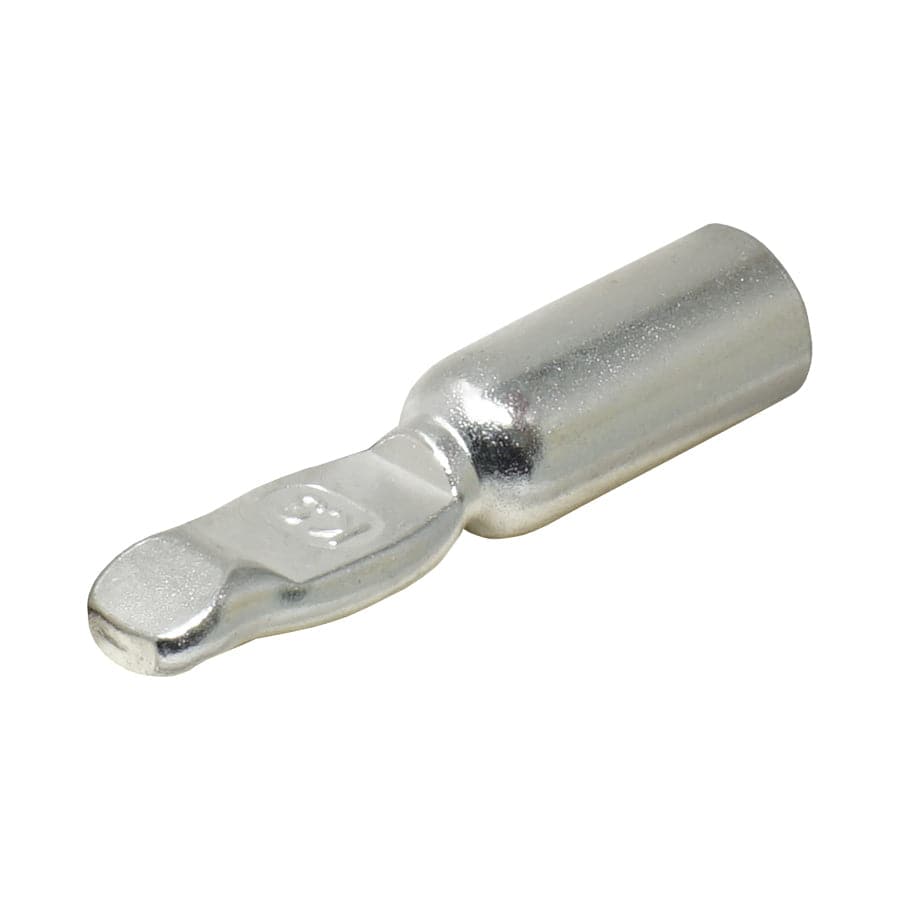

-70%BMC8AG - Silver Plated Powerpole Battery Modular Connector - 8 AWG - 70 AMP—
$1.06
$0.32The Story
Modular power connectors are made of copper with an electro silver-plated finish for enhanced durability. They are designed for use with molded case circuit breakers, panel board equipment, and meter sockets. They provide reliable low resistance non-gendered termination of both aluminum and copper conductors.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 8 AWG |
| L | 1.19" (30.3mm) |
| E | 0.47" (12.0mm) |
| D1: | 0.19" (4.9mm) |
| D: | 0.28" (7.04mm) |
| Terminal Material: | Copper |
| Terminal Plating: | Silver |
| Current Rating: | 70AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
