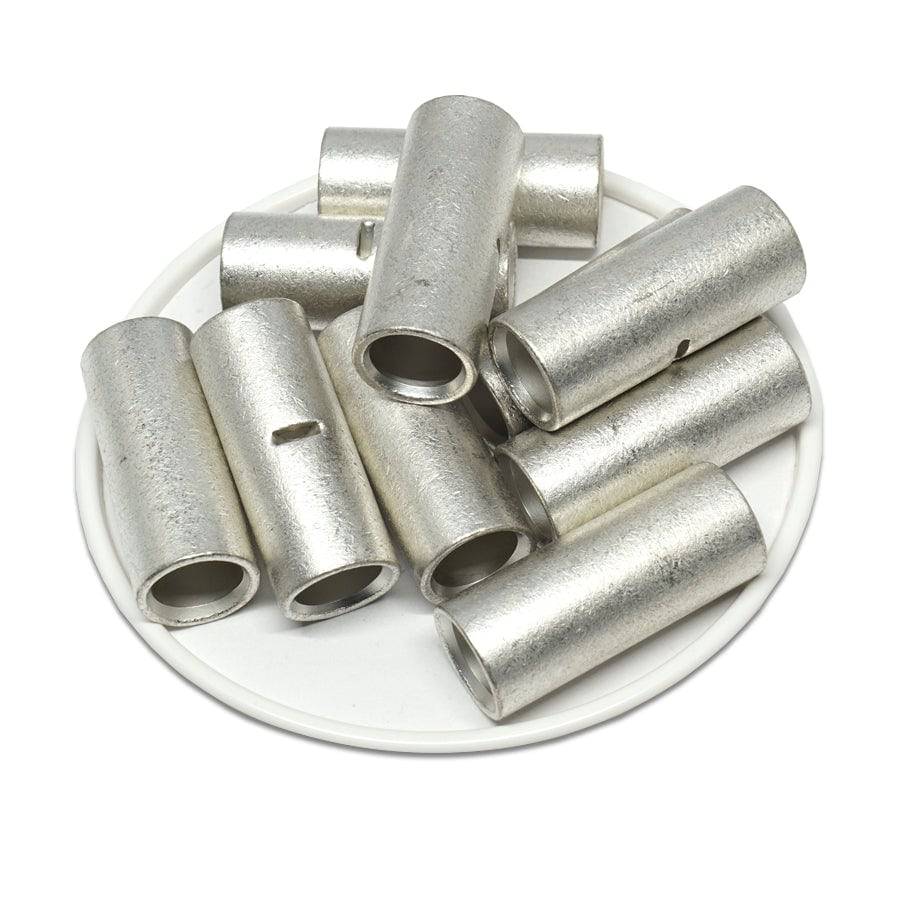

2 AWG Non Insulated Butt Splice Connectors, 1 1/4" Length, UL Approved, 10 Pieces - BNT38—
$20.87
The Story
NON INSULATED BUTT SPLICE CONNECTORS

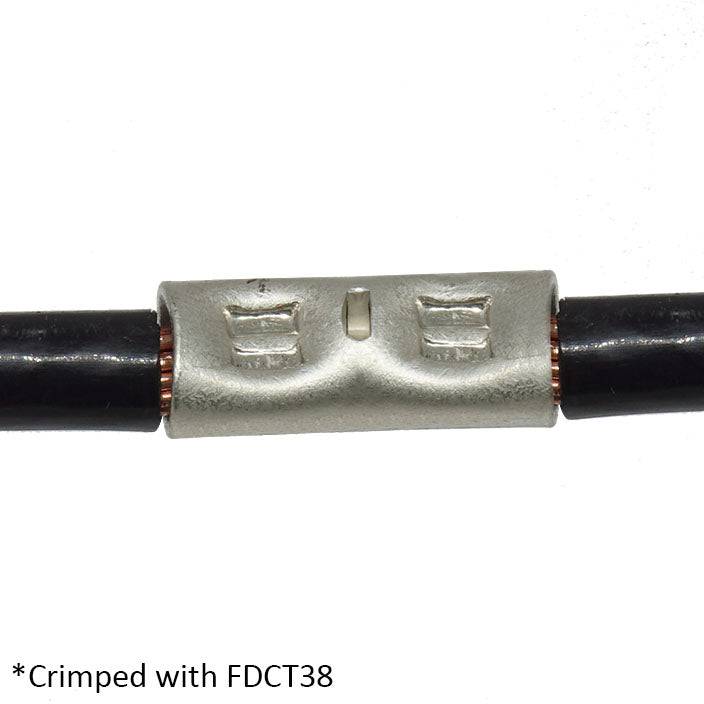

Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively. For use with copper wires only.Dimensions & Features:
| Wire Size: | 2 AWG |
| L: | 32mm (1.26") |
| D: |
13.2mm (0.52") |
| D1: | 9.5mm (0.37") |
| Barrel: | Seamless |
| Configuration: | Straight |
| Material: | Tin Plated Copper |
| Max Electrical Current: | 170 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Burndy:Â YSV2C-L
Tyco AMP:Â 35189
Weidmuller:Â 1493060000
Documents
Click to view product spec sheet:
