$17.02

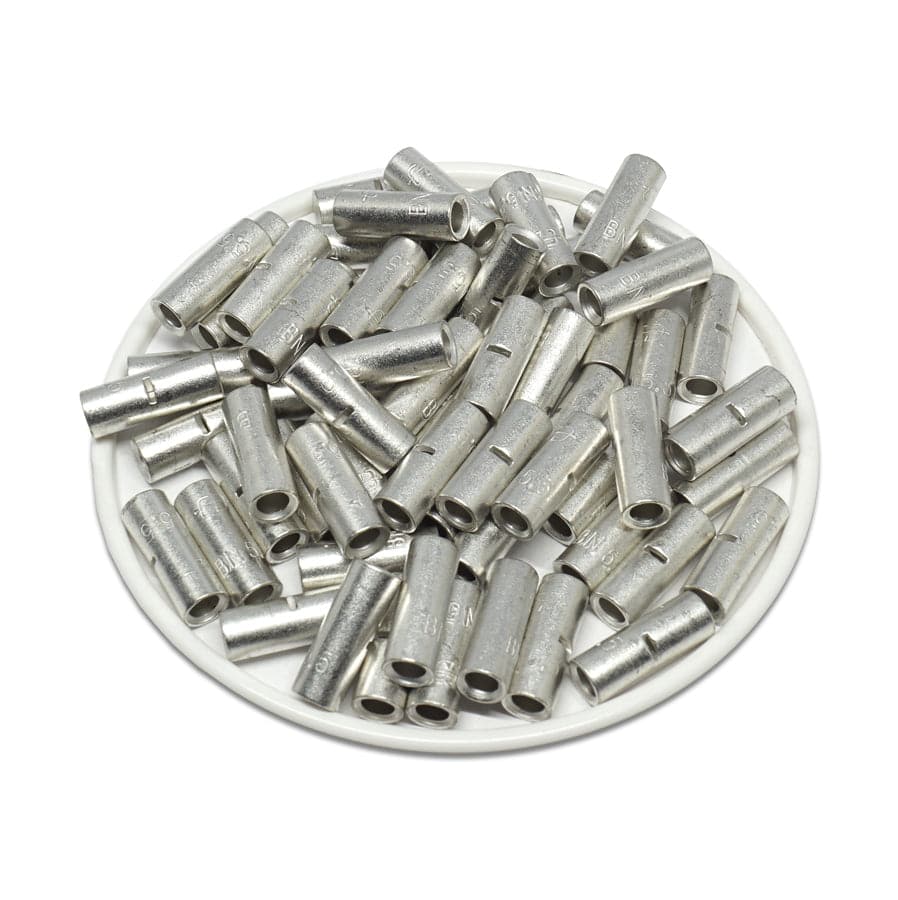

BNT5 - 12-10 AWG Non Insulated Butt Splice Connectors, 9/16" Length, UL Approved, 100 Pieces—
$17.02
The Story
NON INSULATED BUTT SPLICE CONNECTORS

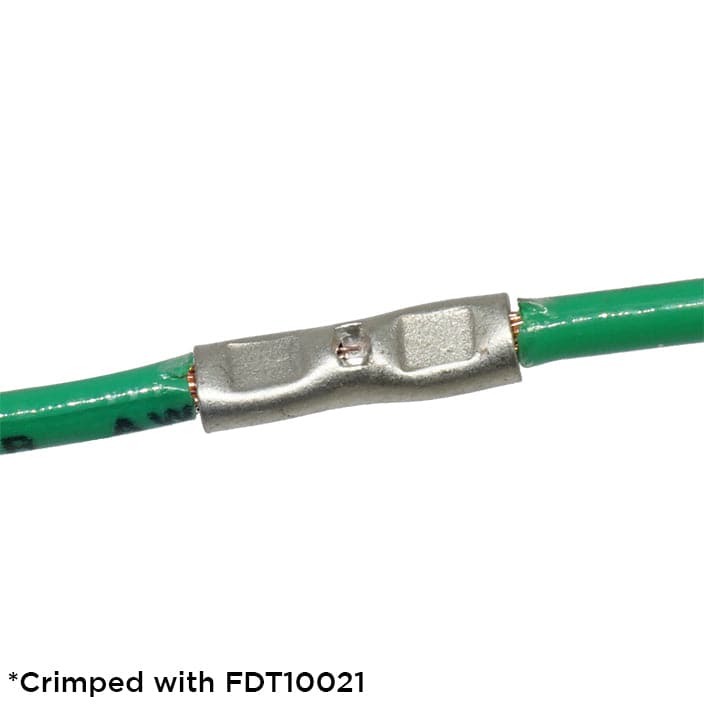

Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively. For use with copper wires only.Dimensions & Features:
| Wire Size: | 12-10Â AWG |

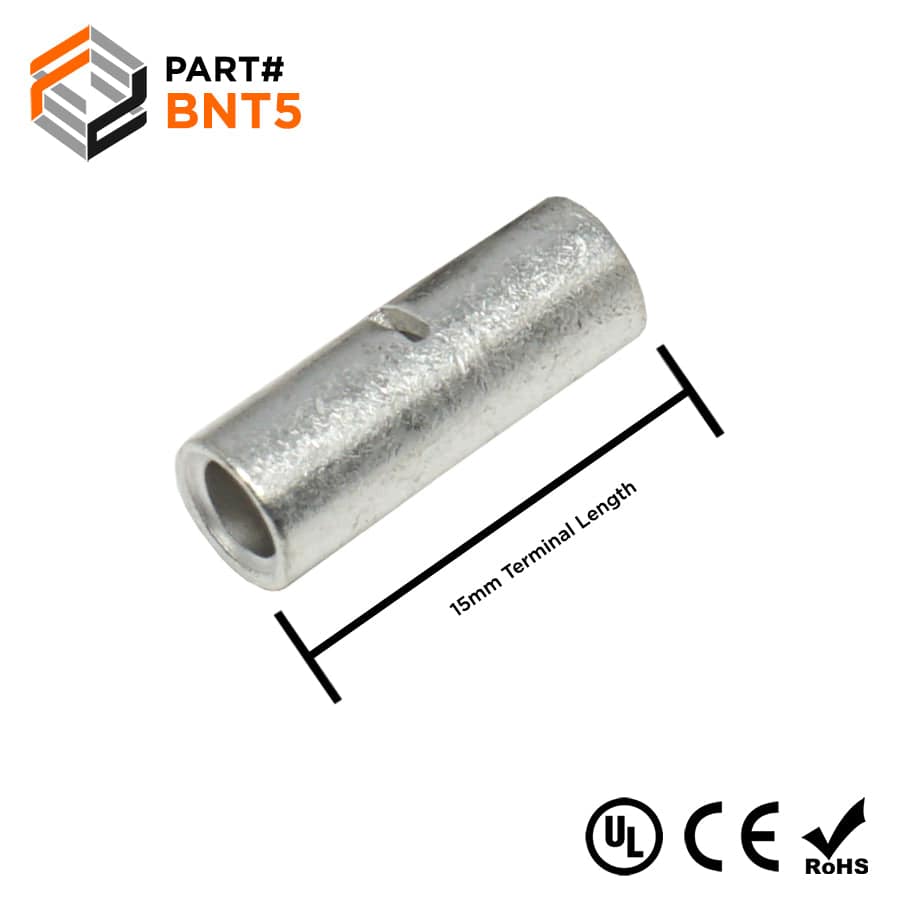

| L: | 15mm (0.59") |
| D: |
5.4mm (0.21") |
| D1: | 3.4mm (0.13") |
| Barrel: | Seamless |
| Configuration: | Straight |
| Material: | Tin Plated Copper |
| Max Electrical Current: | 50Â AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:3M:Â M10BCX
Burndy:Â YSV10
Elecdirect:Â B7C
Panduit:Â BS10-L
Thomas Betts:Â 2C-10
Tyco AMP:Â 32151
Weidmuller:Â 1493020000
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
