$29.50

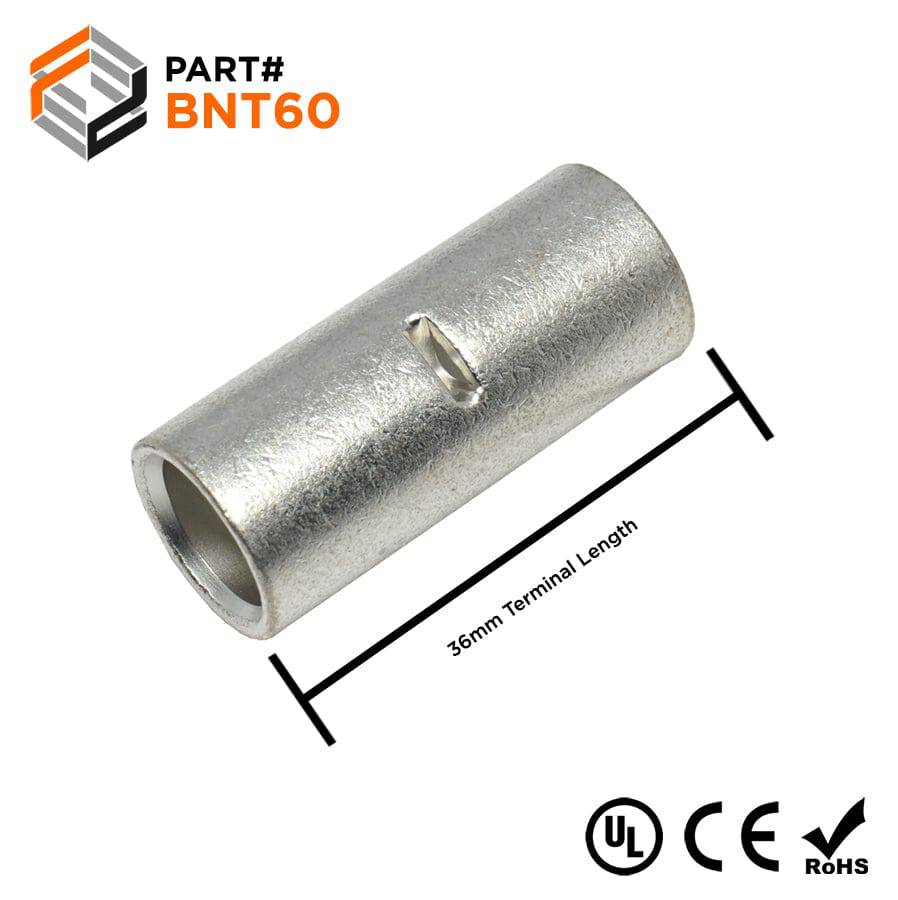

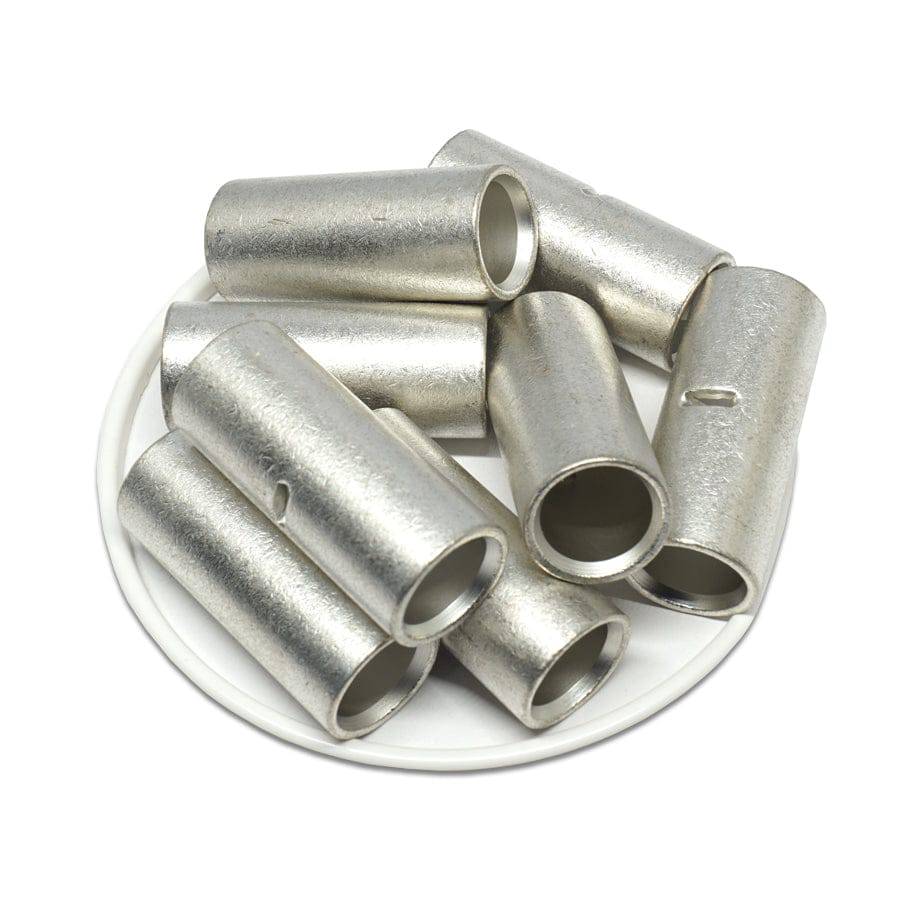

BNT60 - 1/0 AWG Non Insulated Butt Splice Connectors, 1 7/16" Length, UL Approved, 10 Pieces—
$29.50
The Story
NON INSULATED BUTT SPLICE CONNECTORS
Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively. For use with copper wires only.
Dimensions & Features:
| Wire Size: | 1/0Â AWG |
| L: | 36mm (1.41") |
| D: |
15.3mm (0.60") |
| D1: | 11.4mm (0.44") |
| Barrel: | Seamless |
| Configuration: | Straight |
| Material: | Tin Plated Copper |
| Max Electrical Current: | 230Â AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
