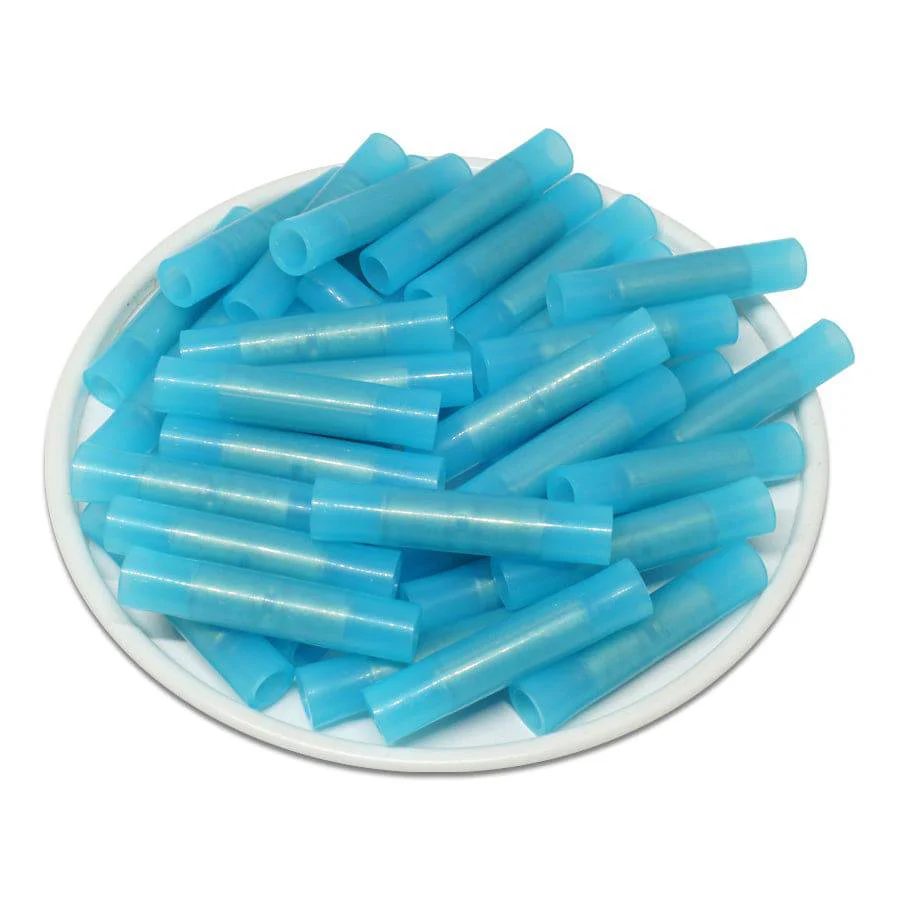

BNY2 - 16 to 14 AWG Nylon Insulated Butt Splice Connectors, 100 Pieces—
$13.46
The Story
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
3M:Â MNG14BCX
McMaster-Carr:Â 7227K23
Panduit:Â BSN14-C
Thomas Betts:Â 2RB14
Tyco AMP:Â 320562
Dimensions & Features:
| Wire Size: | 16-14Â AWG |
| Color: | Blue |
| L: | 27.3mm (1.07") |
| D: |
3.8mm (0.15") |
| D1: | 2.3mm (0.09") |
| Barrel: | Butted Seam |
| Configuration: | Straight |
| Material: | Tin Plated Copper |
| Insulation: | Nylon |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 30Â AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:3M:Â MNG14BCX
McMaster-Carr:Â 7227K23
Panduit:Â BSN14-C
Thomas Betts:Â 2RB14
Tyco AMP:Â 320562
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
