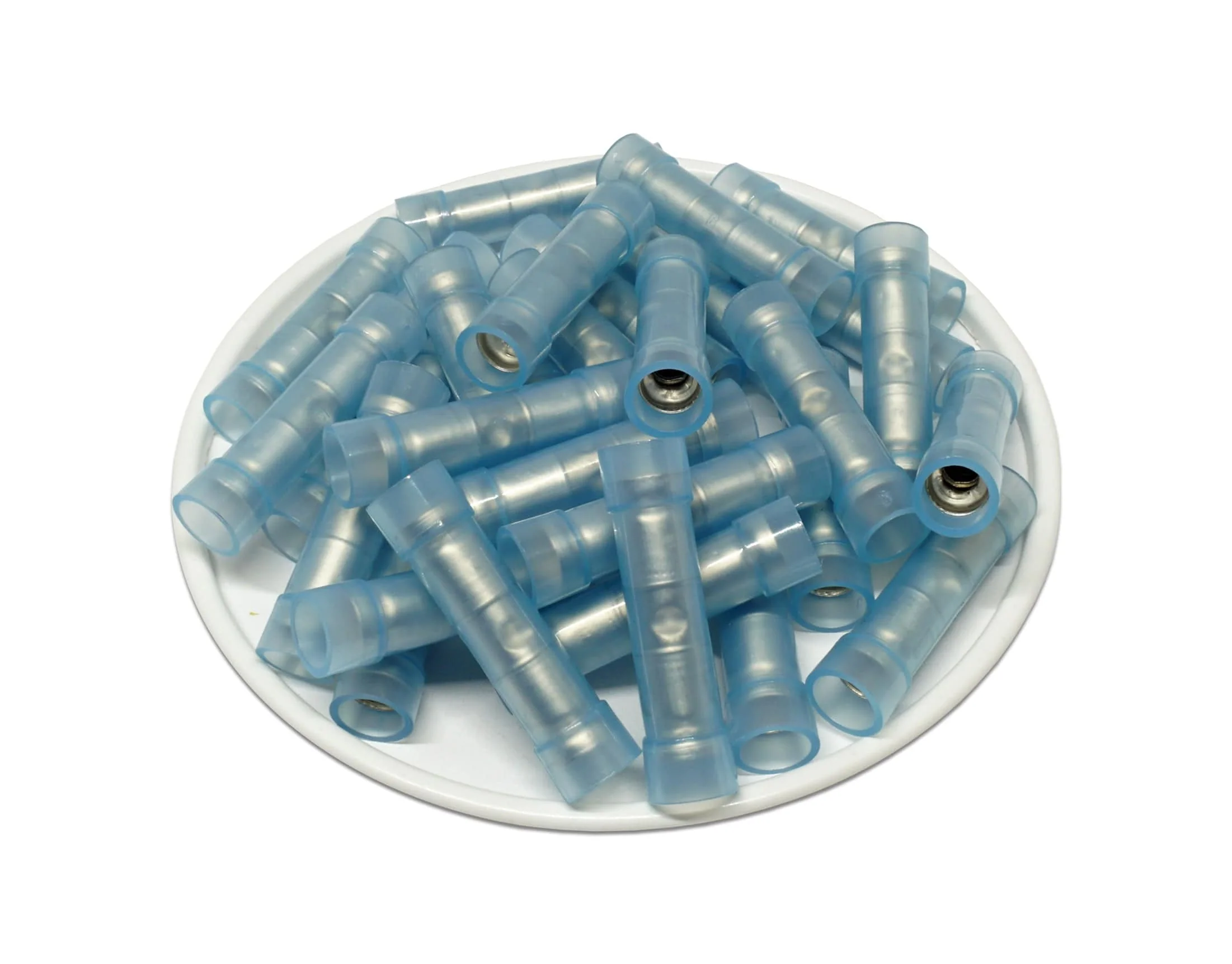

WBNYDF2 -16 to 14 AWG Nylon Insulated Window Butt Splice Connectors, Flared, 100 Pieces
HomeStore

WBNYDF2 -16 to 14 AWG Nylon Insulated Window Butt Splice Connectors, Flared, 100 Pieces

WBNYDF2 -16 to 14 AWG Nylon Insulated Window Butt Splice Connectors, Flared, 100 Pieces

$6.31

Original: $21.04

-70%
WBNYDF2 -16 to 14 AWG Nylon Insulated Window Butt Splice Connectors, Flared, 100 Pieces—

$21.04

$6.31

The Story

Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
L: 27mm (1.06")
D:
 5.2mm (0.21")
D1: 2.3mm (0.09")
Barrel: Butted Seam
Configuration: Flared
Material: Tin Plated Copper
Insulation: Nylon
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 30 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

3M: MNG14BCX
McMaster-Carr: 7227K23
Panduit: BSN14-C
Thomas Betts: 2RB14
Tyco AMP: 320562
