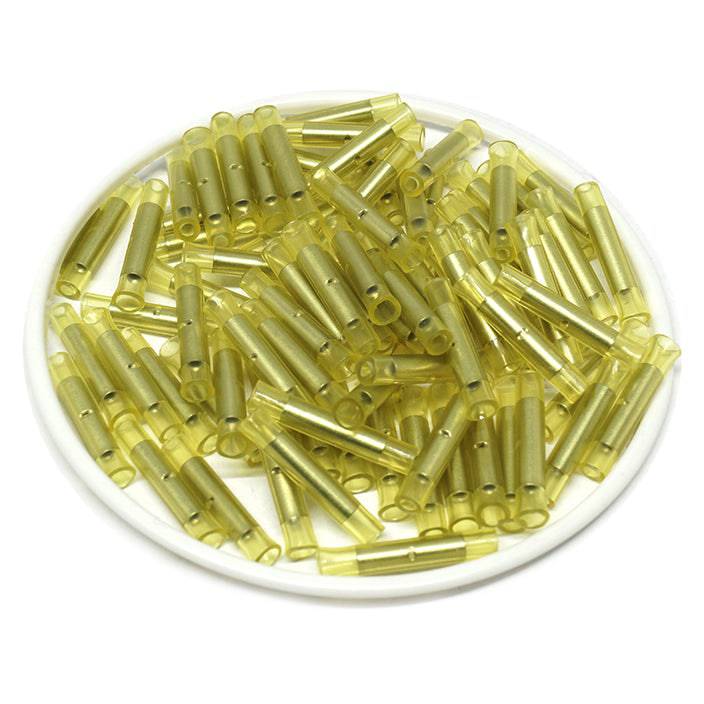

-70%BNYT05 - 26 to 22 AWG Nylon Insulated Butt Splice Connectors, 100 Pieces—
$8.34
$2.50The Story
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 26-22 AWG |
| Color: | Yellow |
| L: | 20mm (0.79") |
| D: |
2.0mm (0.08") |
| D1: | 1.3mm (0.05") |
| Barrel: | Seamless |
| Configuration: | Straight |
| Material: | Tin Plated Copper |
| Insulation: | Nylon |
| Stripping Length (min/max): | 5-8mm Per Side |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 9Â AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
