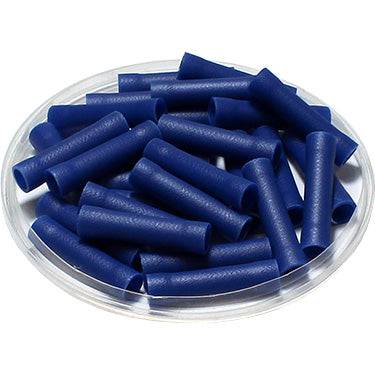

-70%BV2 - 16 to 14 AWG Vinyl PVC Insulated Butt Splice Connectors, Flared, 100 Pieces—
$10.49
$3.15The Story
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
Automation Direct:Â BM-00260
Dimensions & Features:
| Wire Size: | 16-14Â AWG |
| Color: | Blue |
| L: | 24.6mm (0.97") |
| D: |
4.5mm (0.18") |
| D1: | 2.5mm (0.10") |
| Barrel: | Seamless |
| Configuration: | Flared |
| Material: | Tin Plated Copper |
| Insulation: | Vinyl |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 30Â AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Automation Direct:Â BM-00260
