$5.34

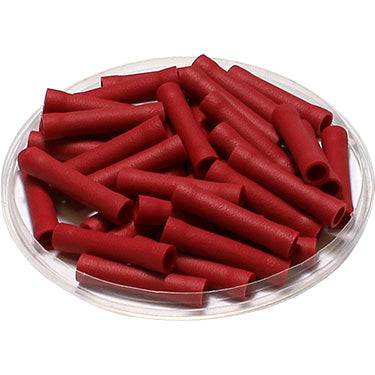

BVS1 - 22 to 16 AWG Vinyl PVC Insulated Butt Splice Connectors, Flared, 100 Pieces—
$5.34
The Story
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 22-16Â AWG |
| Color: | Red |
| L: | 24.6mm (0.97") |
| D: | 4.0mm (0.16") |
| D1: | 1.7mm (0.07") |
| Material: | Brass |
| Max Electrical Rating: | 75°C - 300 Volts |
| Max Electrical Current: | 10A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
