DBNYB1-10 - Nylon Insulated Flat Blade Terminal - 22-16 AWG
HomeStore

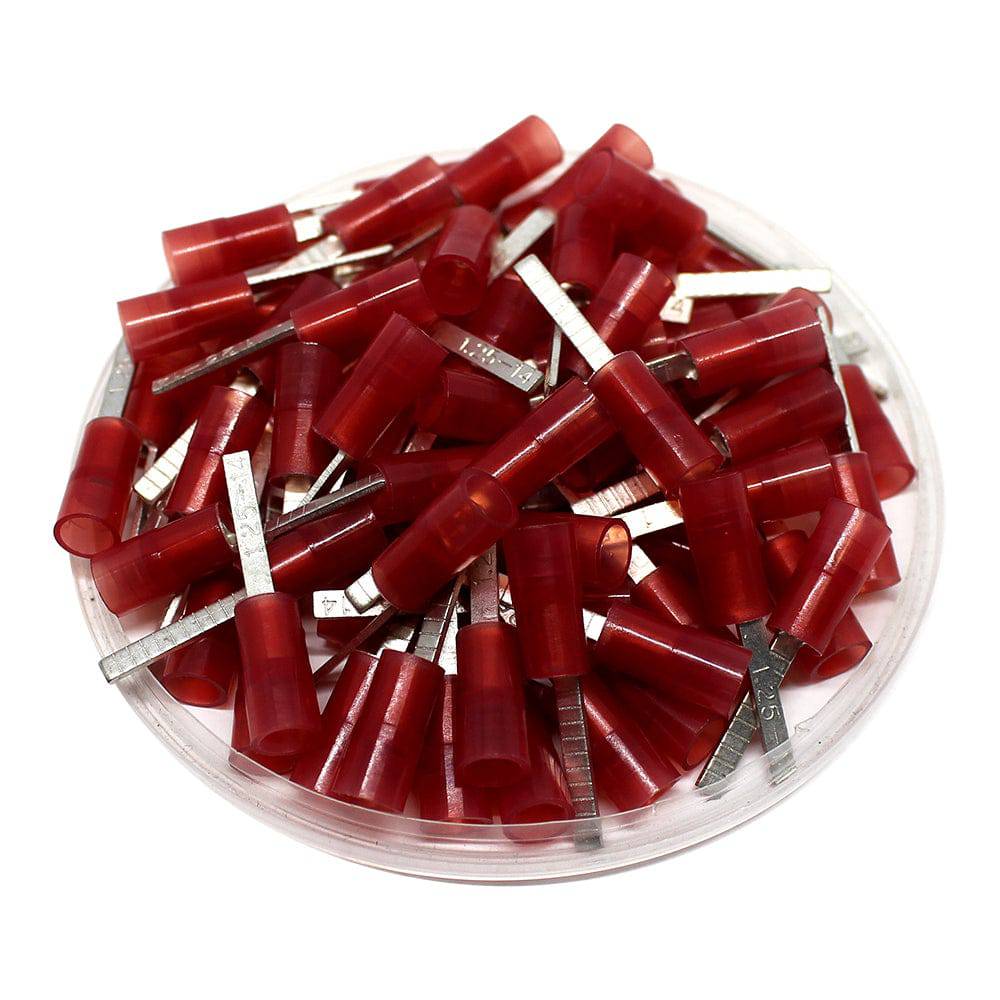

DBNYB1-10 - Nylon Insulated Flat Blade Terminal - 22-16 AWG

DBNYB1-10 - Nylon Insulated Flat Blade Terminal - 22-16 AWG

$2.11

Original: $7.02

-70%
DBNYB1-10 - Nylon Insulated Flat Blade Terminal - 22-16 AWG—

$7.02

$2.11

The Story

A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:
  • Timers
  • Motors
  • Valves
  • Relays
  • Mechanical Switches
  • Wire to Wire Harnesses


    • Dimensions & Features:

    Wire Range: 22-16AWG
    Insulation: Nylon
    Color: Red
    Type: Butted Seam
    Max Electrical Rating: 105oC
    Max Electrical Voltage: 600 Volts
    Max Electrical Current: 18AMP
    T: 0.7mm (0.03")
    L: 20.8mm (0.82")
    F: 10.0mm (0.39")
    E: 11.0mm (0.43")
    W: 2.3mm (0.09")
    D: 4.0mm (0.16")
    D1: 1.7mm (0.07")
    UL Recognized: Yes
    RoHS Compliant: Yes
    CE Certified: Yes

    Product Drawing:


    Cross References

    Cross Reference Parts:
    None
