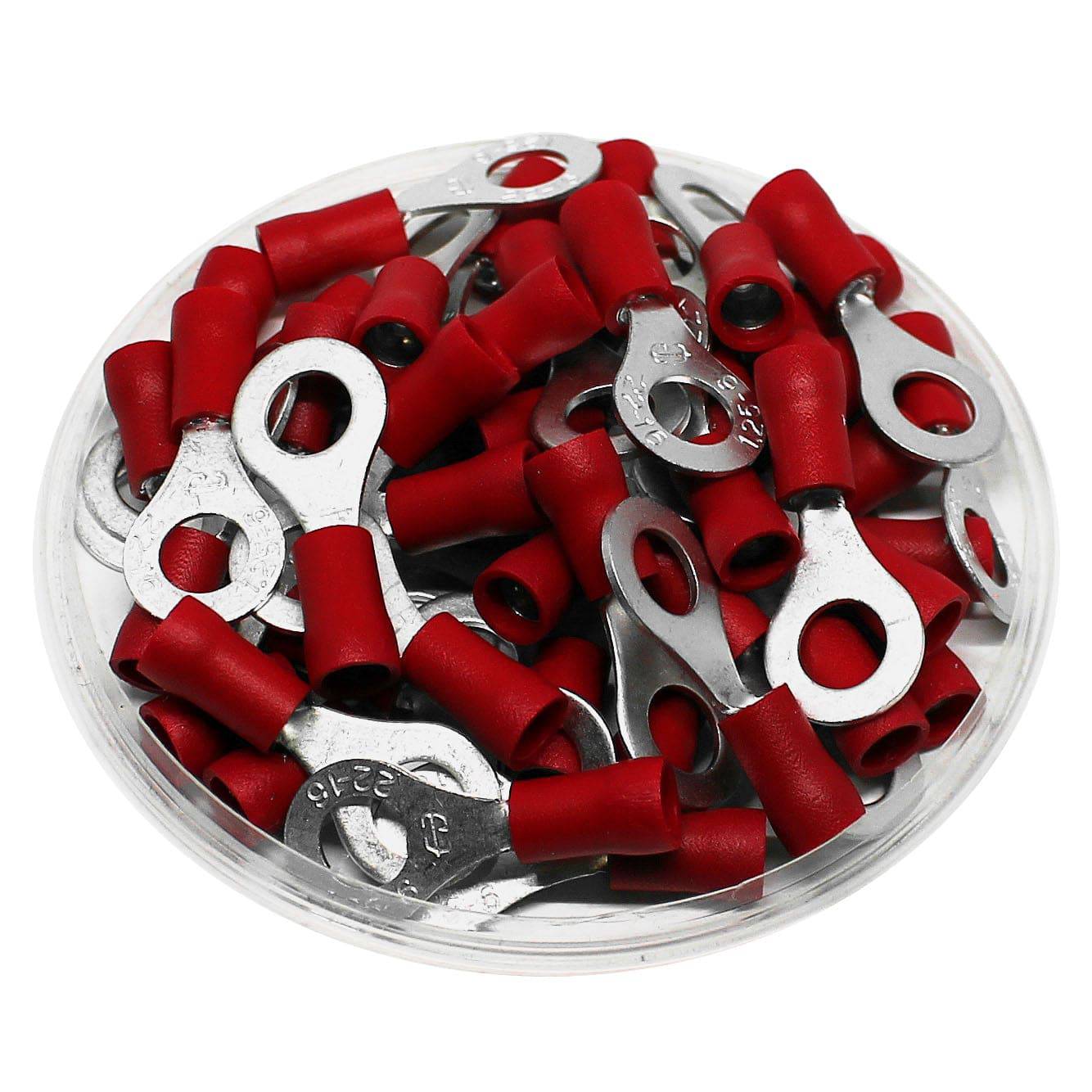

DRVBL6-1 - Vinyl Ring Terminal Brazed Seam 22-16 AWG Red 100/pk - Stud 1/4"
HomeStore

DRVBL6-1 - Vinyl Ring Terminal Brazed Seam 22-16 AWG Red 100/pk - Stud 1/4"

DRVBL6-1 - Vinyl Ring Terminal Brazed Seam 22-16 AWG Red 100/pk - Stud 1/4"

$13.89
DRVBL6-1 - Vinyl Ring Terminal Brazed Seam 22-16 AWG Red 100/pk - Stud 1/4"—
$13.89

The Story

Ring tongue design offers a tight and secure connection in high vibration areas, Vinyl insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.


Dimensions & Features:

T: 0.8mm (0.03")
L: 20mm (0.79")
E: 10mm (0.39")
W: 11mm (0.43")
D 4mm (0.16")
D1: 1.6mm (0.06")
D2: 6.5mm (0.26")
Color: Red
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105oC)
Max Electrical AMP: 18AMP
Stud Size: 1/4"
Crimp: Double
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross References:

Grainger: 18RA-14

Documents

Click to view product spec sheet:

Videos

Click here to check out our YouTube channel:
