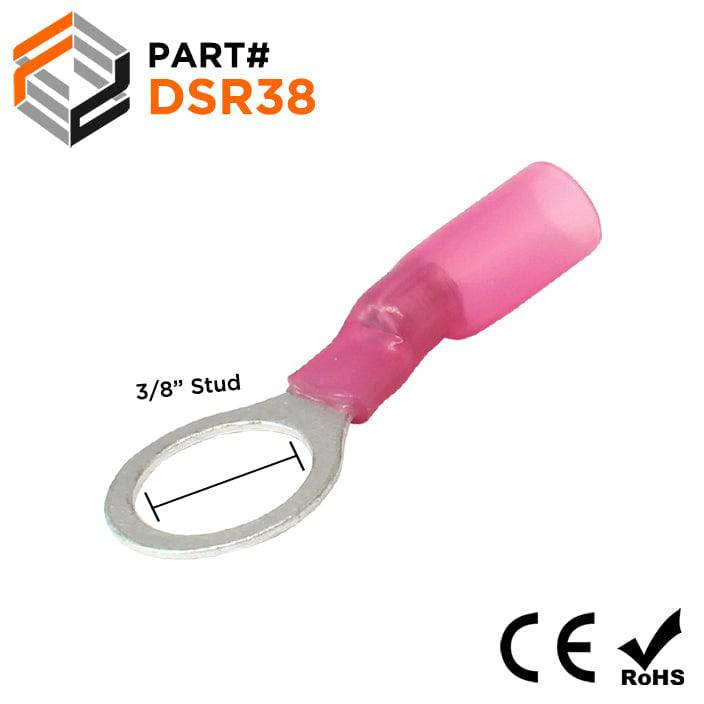

22 to 16 AWG Heat Shrink Ring Terminals, 3/8" Stud, Polyolefin, 25 Pieces - DSR38
HomeStore

22 to 16 AWG Heat Shrink Ring Terminals, 3/8" Stud, Polyolefin, 25 Pieces - DSR38

22 to 16 AWG Heat Shrink Ring Terminals, 3/8" Stud, Polyolefin, 25 Pieces - DSR38

$1.47

Original: $4.90

-70%
22 to 16 AWG Heat Shrink Ring Terminals, 3/8" Stud, Polyolefin, 25 Pieces - DSR38—

$4.90

$1.47

The Story

HEAT SHRINKABLE RING TERMINALS: POLYOLEFIN

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 22 to 16 AWG
Stud Size: 3/8"
Color:  Red
D: 4.8mm (0.19")
D1: 1.6mm (0.06")
D2: 10.5mm (0.41")
B: 13.6mm (0.54")
E: 21.0mm (0.83")
L: 38.0mm (1.50")
Terminal Material: Tin-Plated Copper
Insulation Material: Polyethylene
Temperature Rating: -67oF to 221oF (-55oC to 125oC)
UL Approved: Yes
CE Certified:  Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
