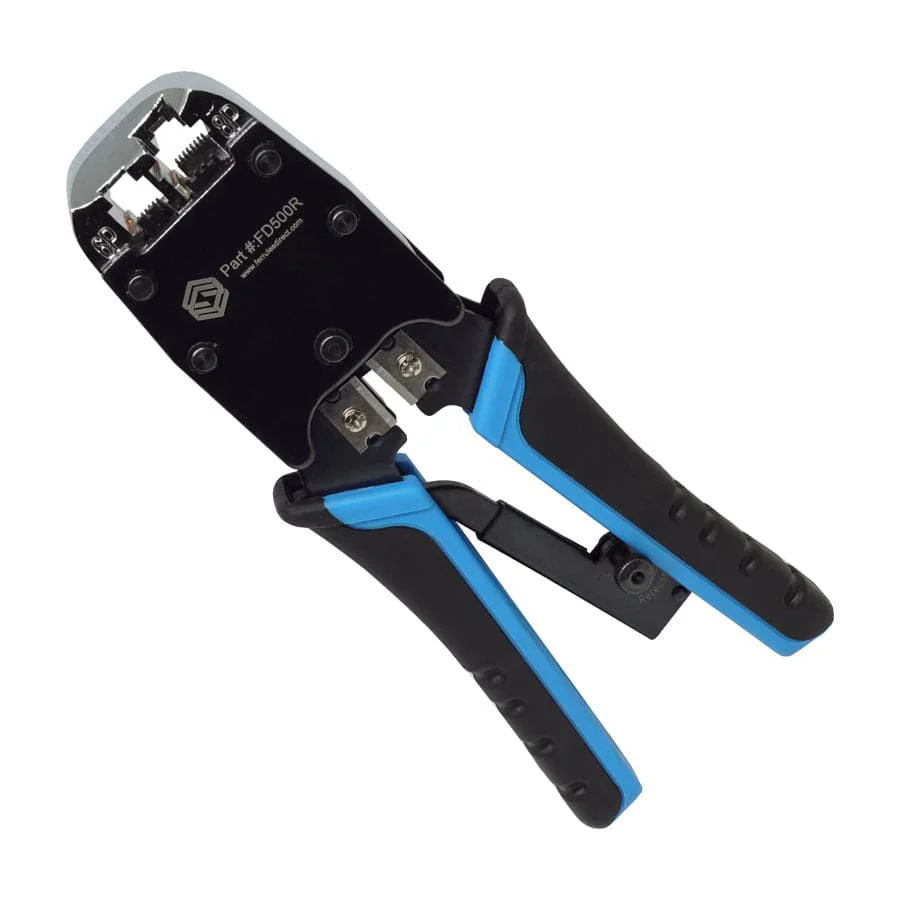

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece

$6.00

Original: $19.99

-70%

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece—

$19.99

$6.00

The Story

Fast, reliable modular-crimp connector installation for voice and data applications.

This all-in-one tool, cuts, strips, and crimps paired-conductor cables (round STP/UTP and flat-satin phone cable), AKA twisted pair cables.

Cutter, Stripper, Crimper all-in-one tool

Ergonomically designed plastic handles with rubber grips

Suitable modular connectors: 4, 6, 8

Dimensions & Features:

Cable Parameters:	28-22 AWG (0.08-0.34 mm²) flat or round; solid or stranded telephone & data.
Modular Connectors:	8P8C/RJ-45, 6P6C/RJ-12, 6P4C/RJ-11
Tool Material:	Hardened steel body with black oxide finish
Tool Finish:	Burnished
Handle Material:	Ergonomically designed plastic handles with rubber grips
Crimping Mechanism:	Ratchet

1. Put the network cable into the stripping port of the tool, rotate it two times, then pull it out.

2. Cut off the PVC jacket and untwist the wires so that they look as follows.

3. Trim the tips of the wires with the cutting side of the tool to make the tips neat.

4. Arrange the wires in the proper sequence and push them into the connector to the deepest position.

5. Insert the connector into the proper slot of the tool, align the chip position, and press down.

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:

Videos

Watch below to see how to use the FD500R to create an ethernet cable!
(FD500R model has updated since this recording)

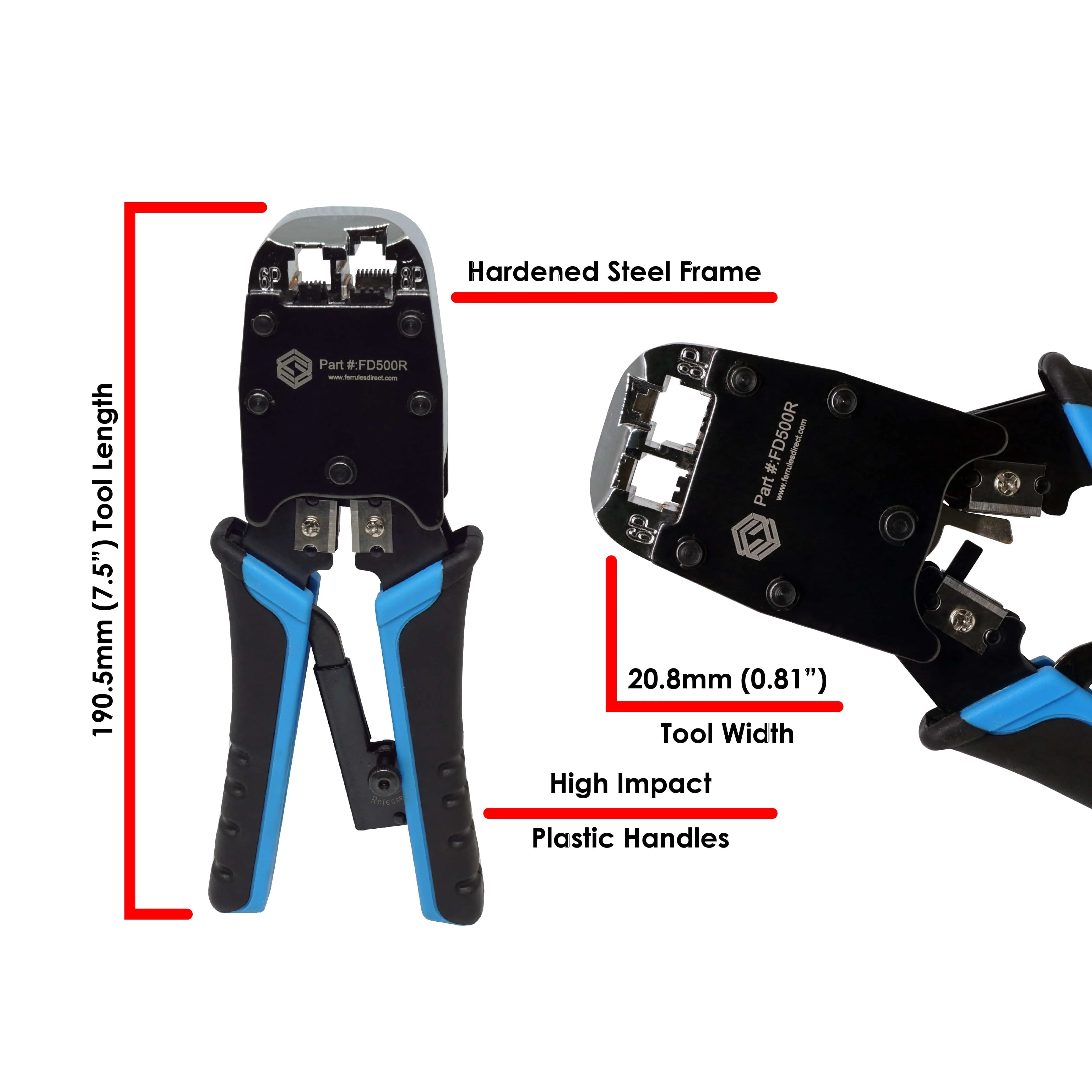

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

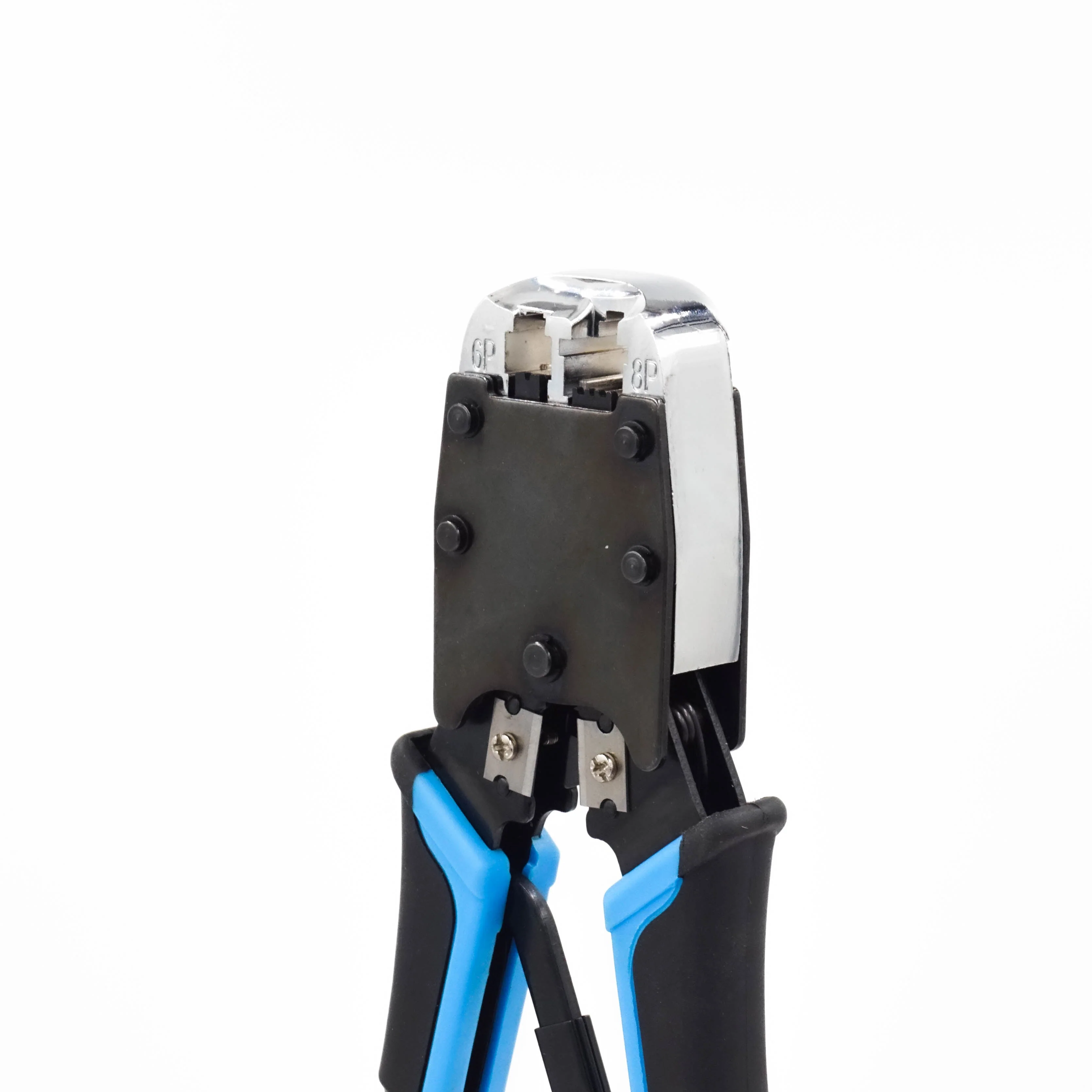

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

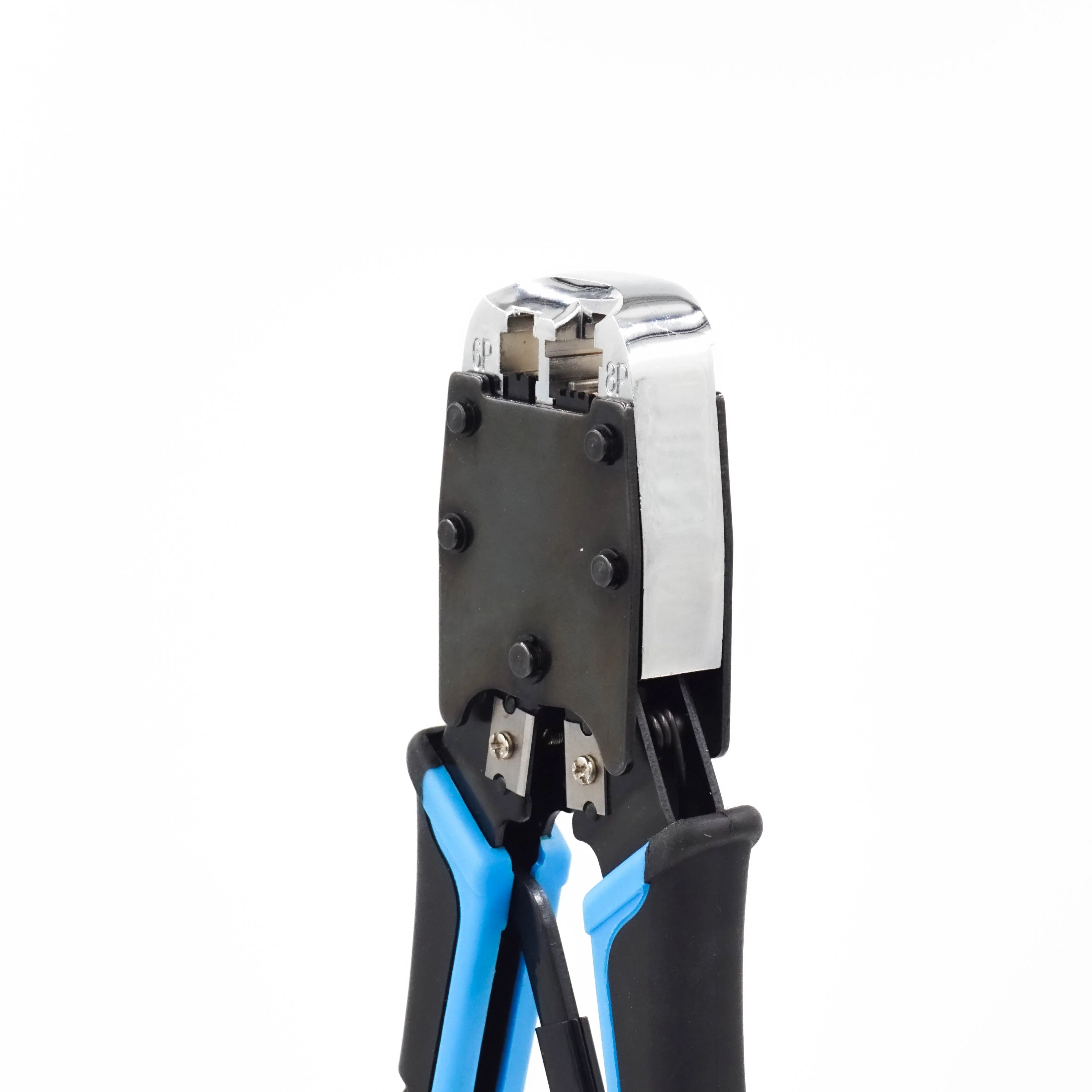

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

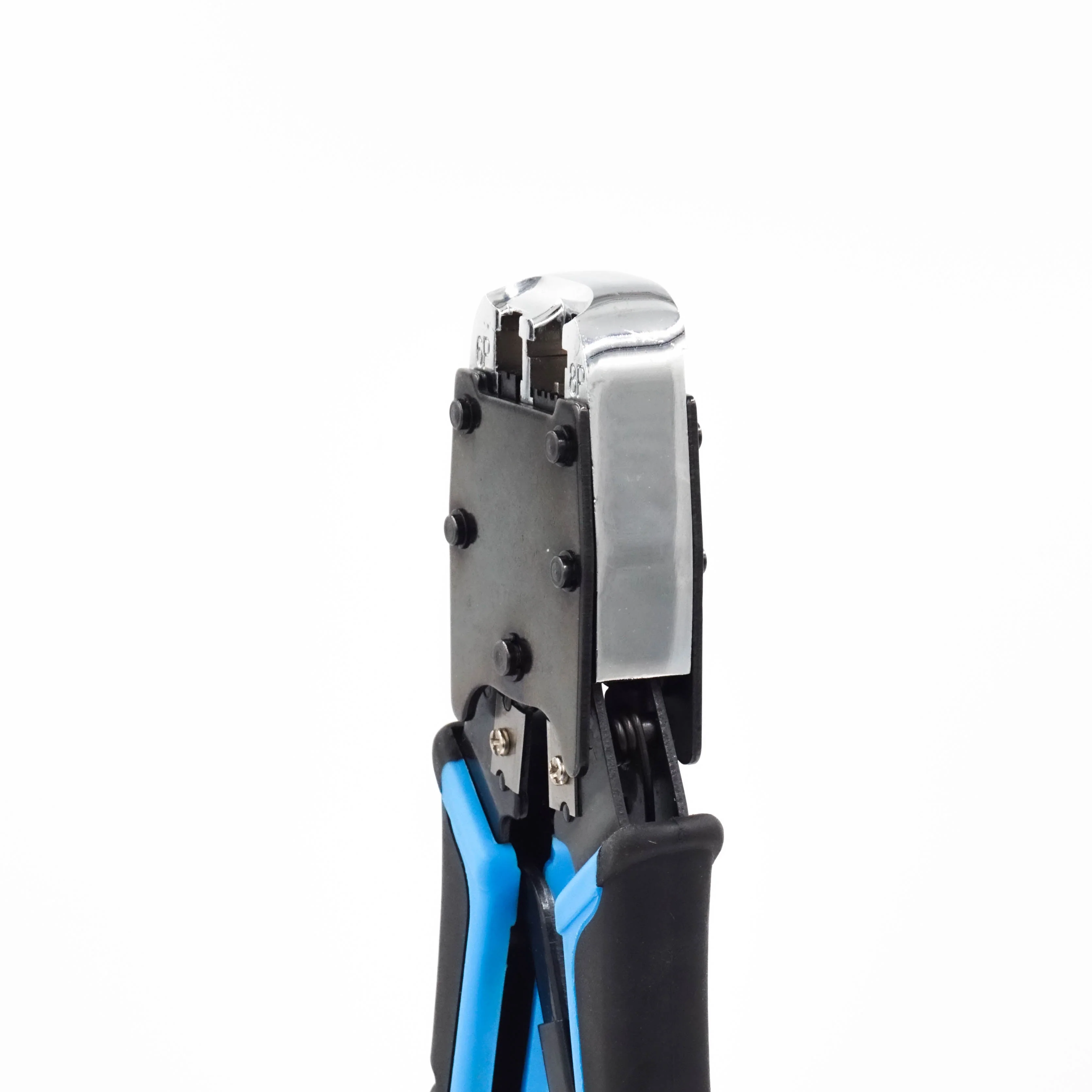

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

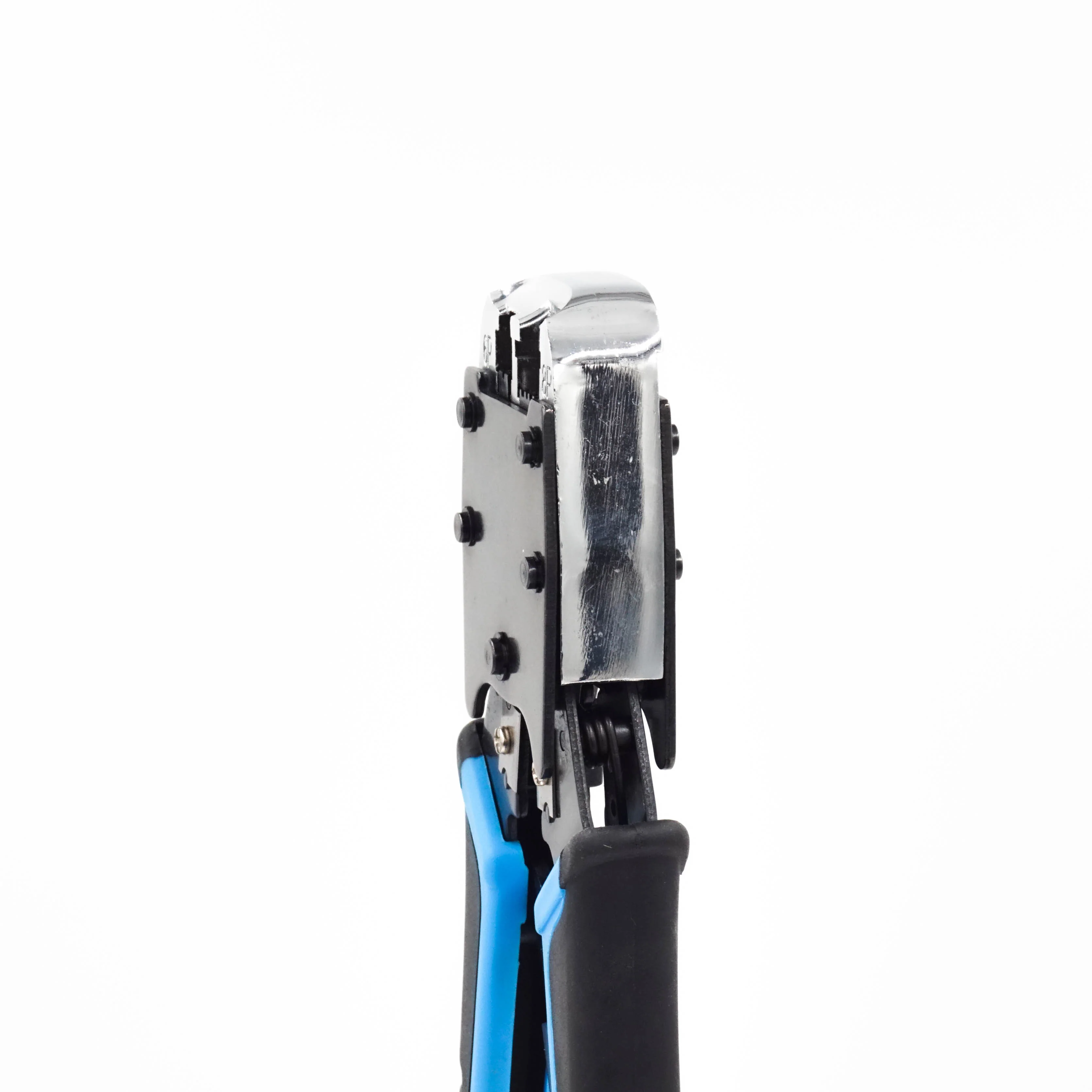

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

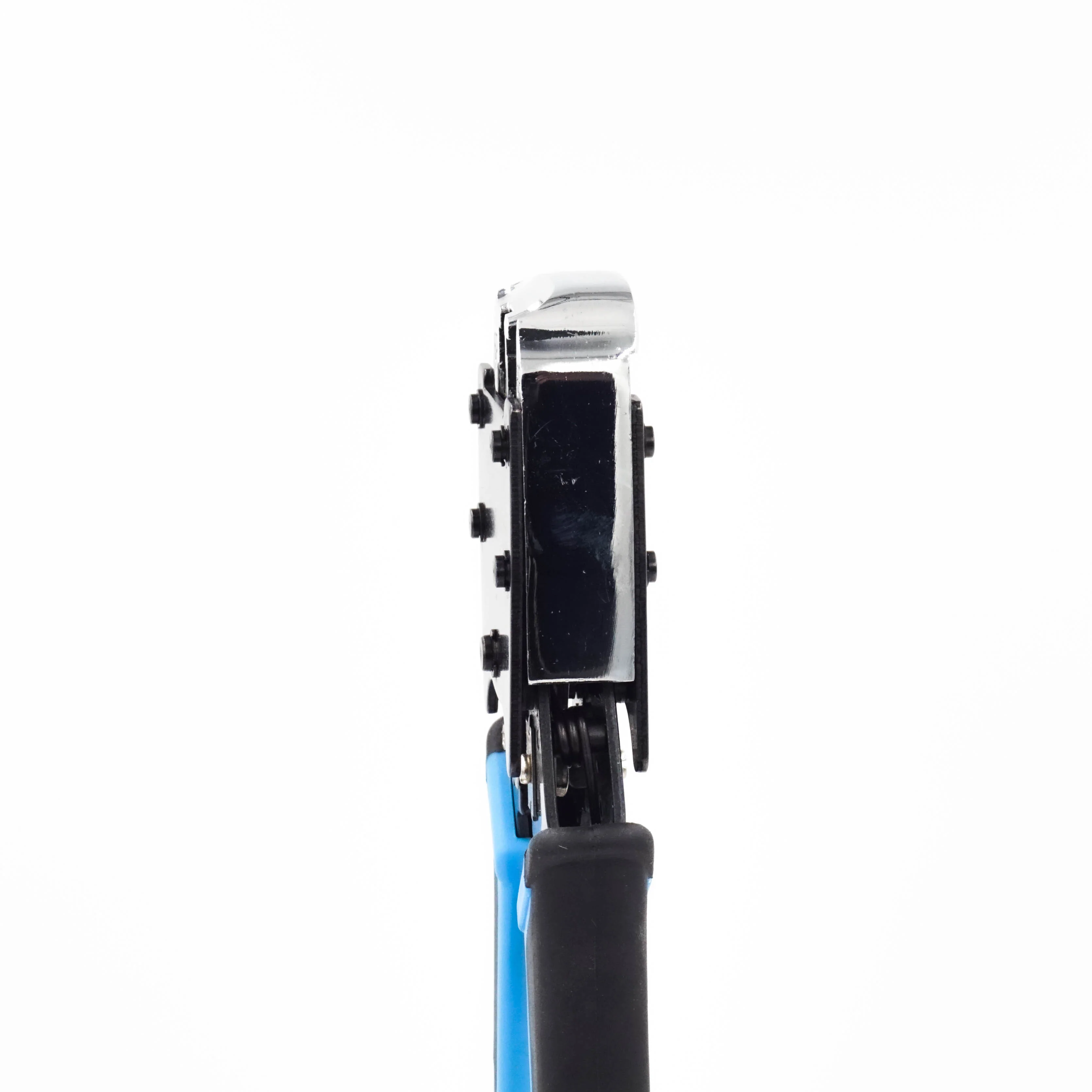

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

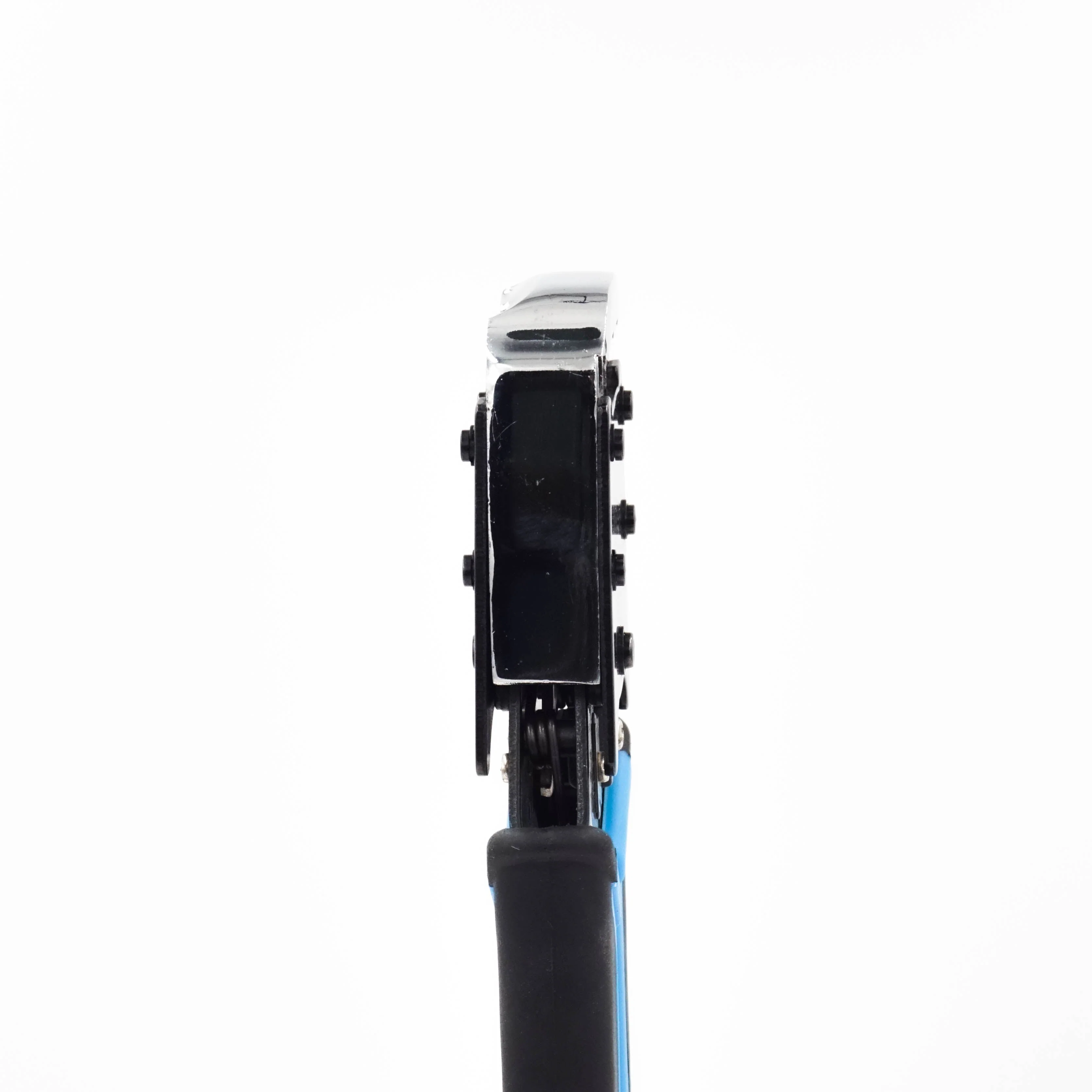

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

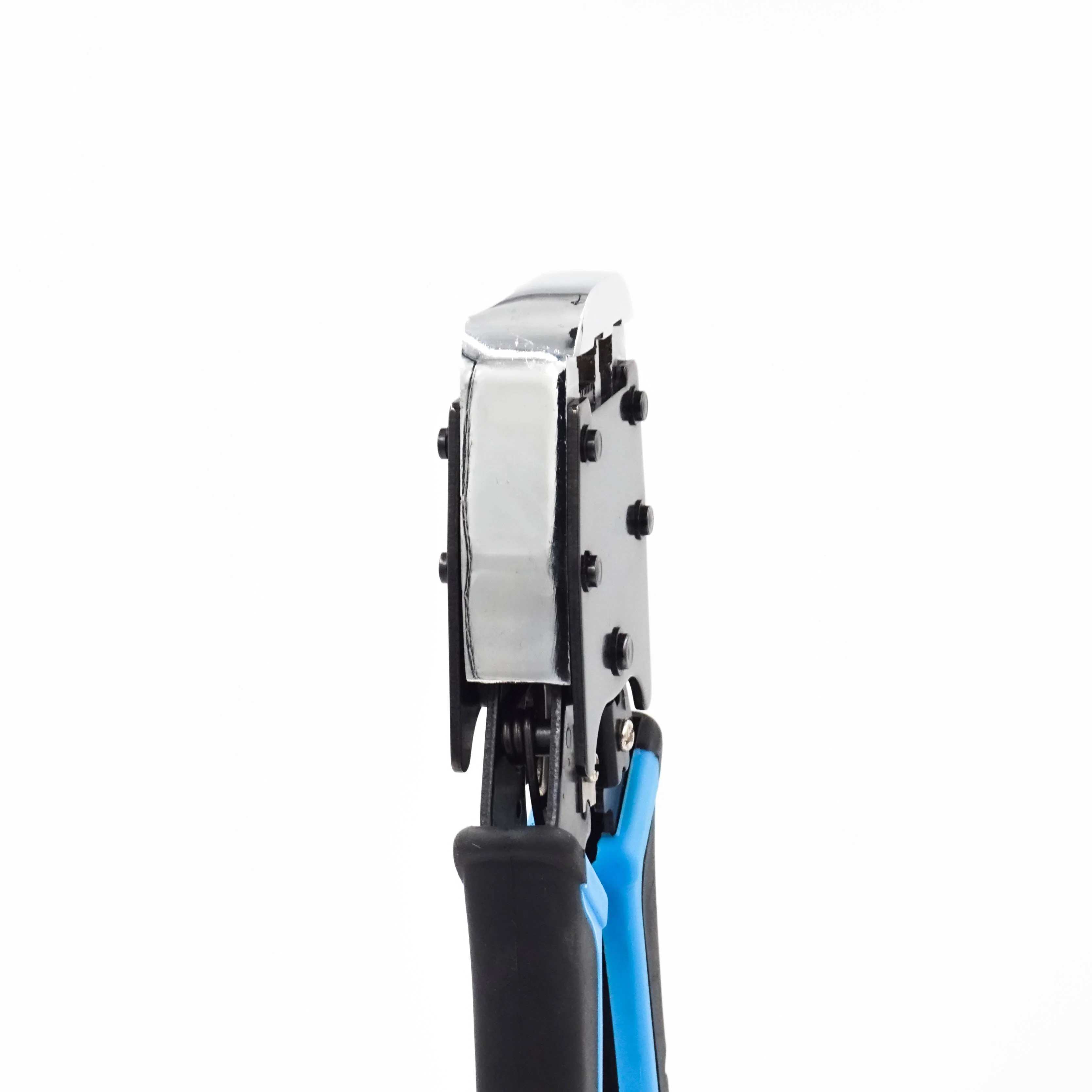

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

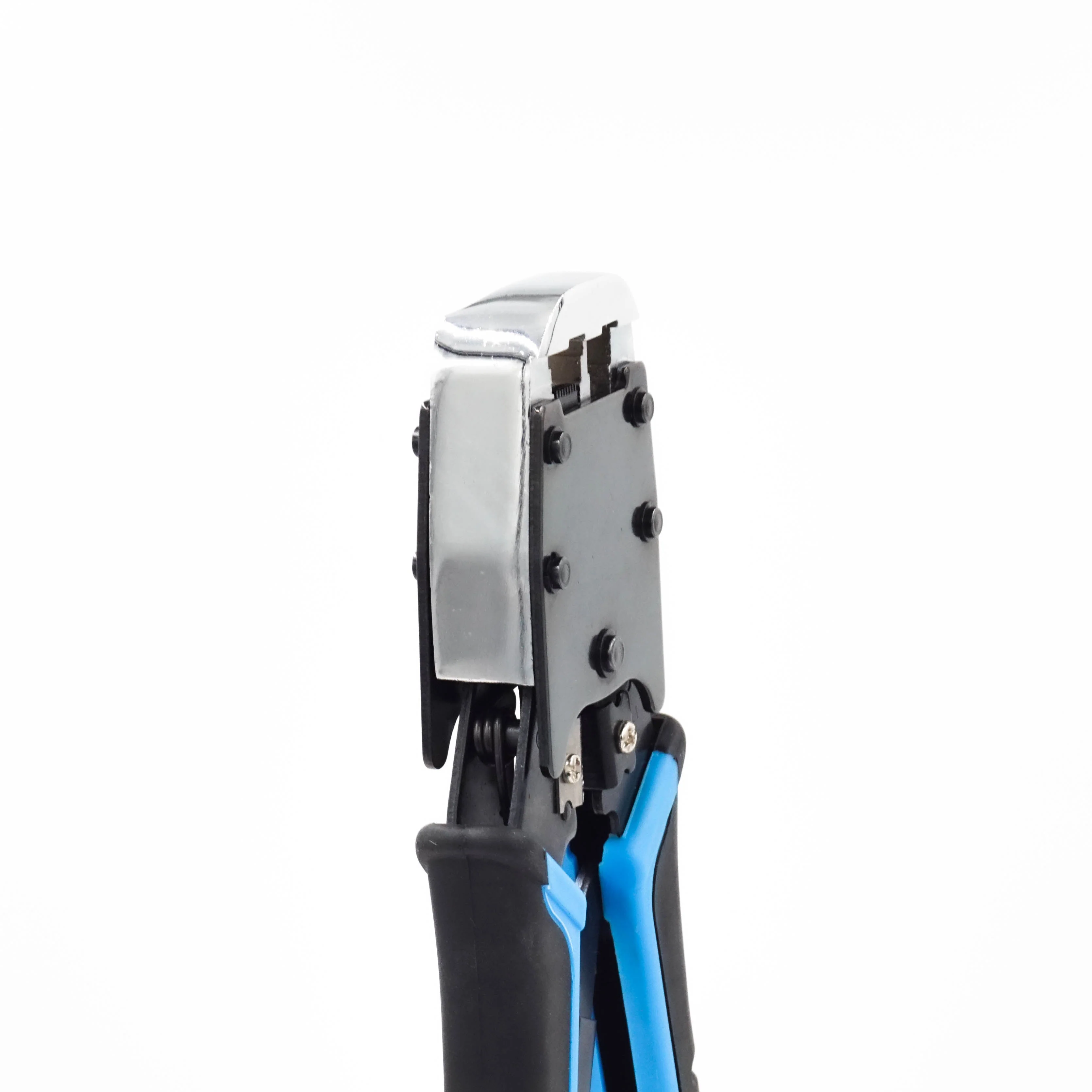

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

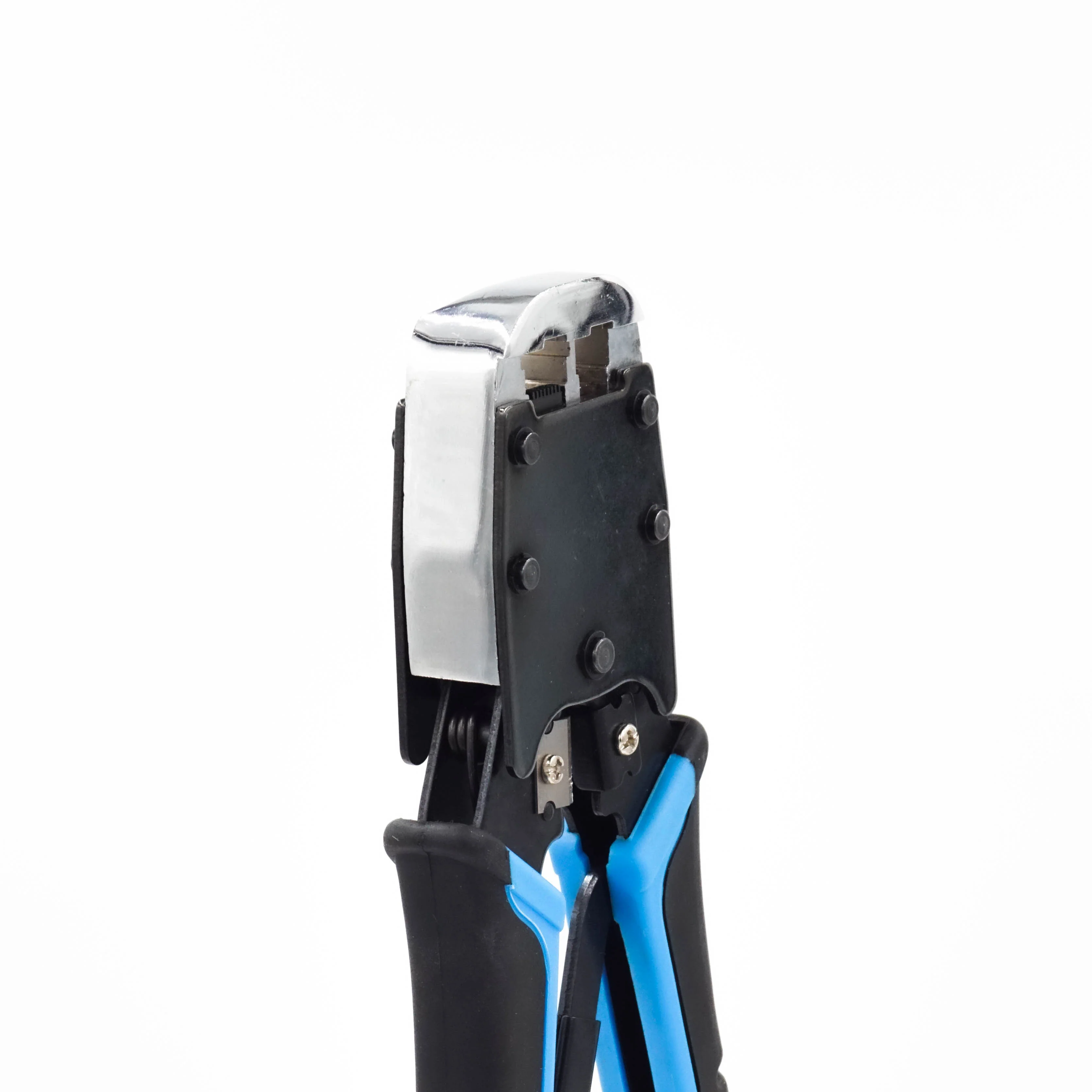

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

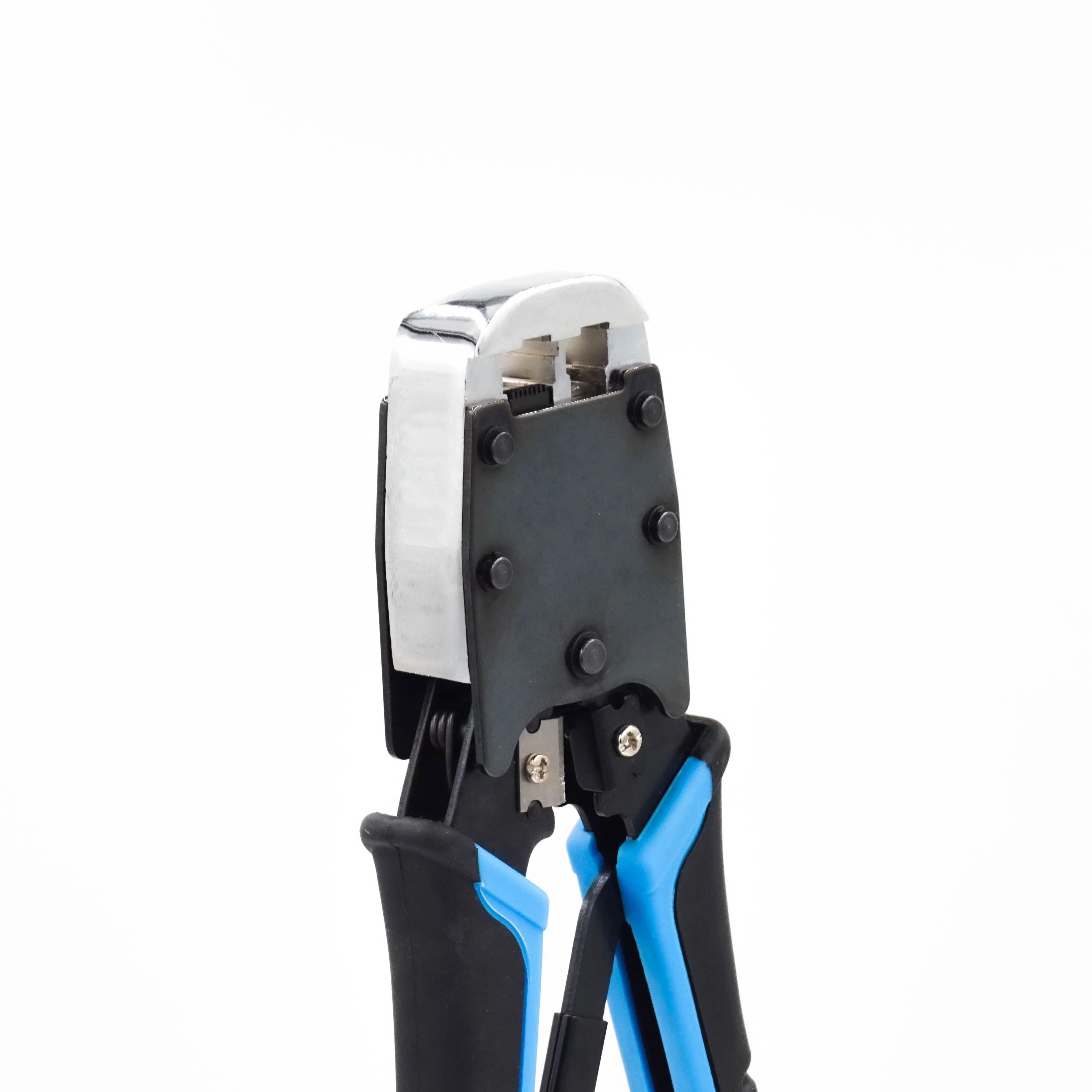

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

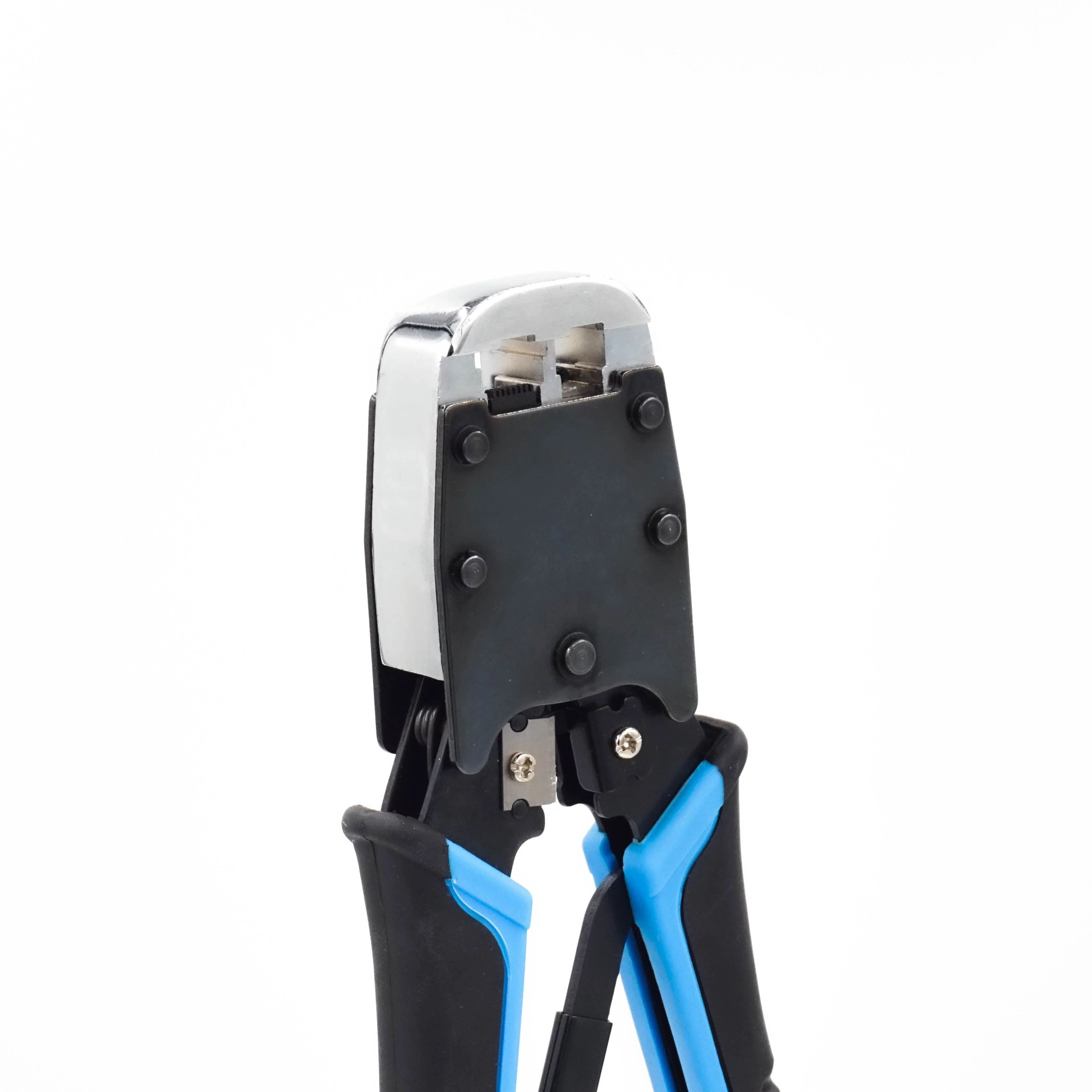

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

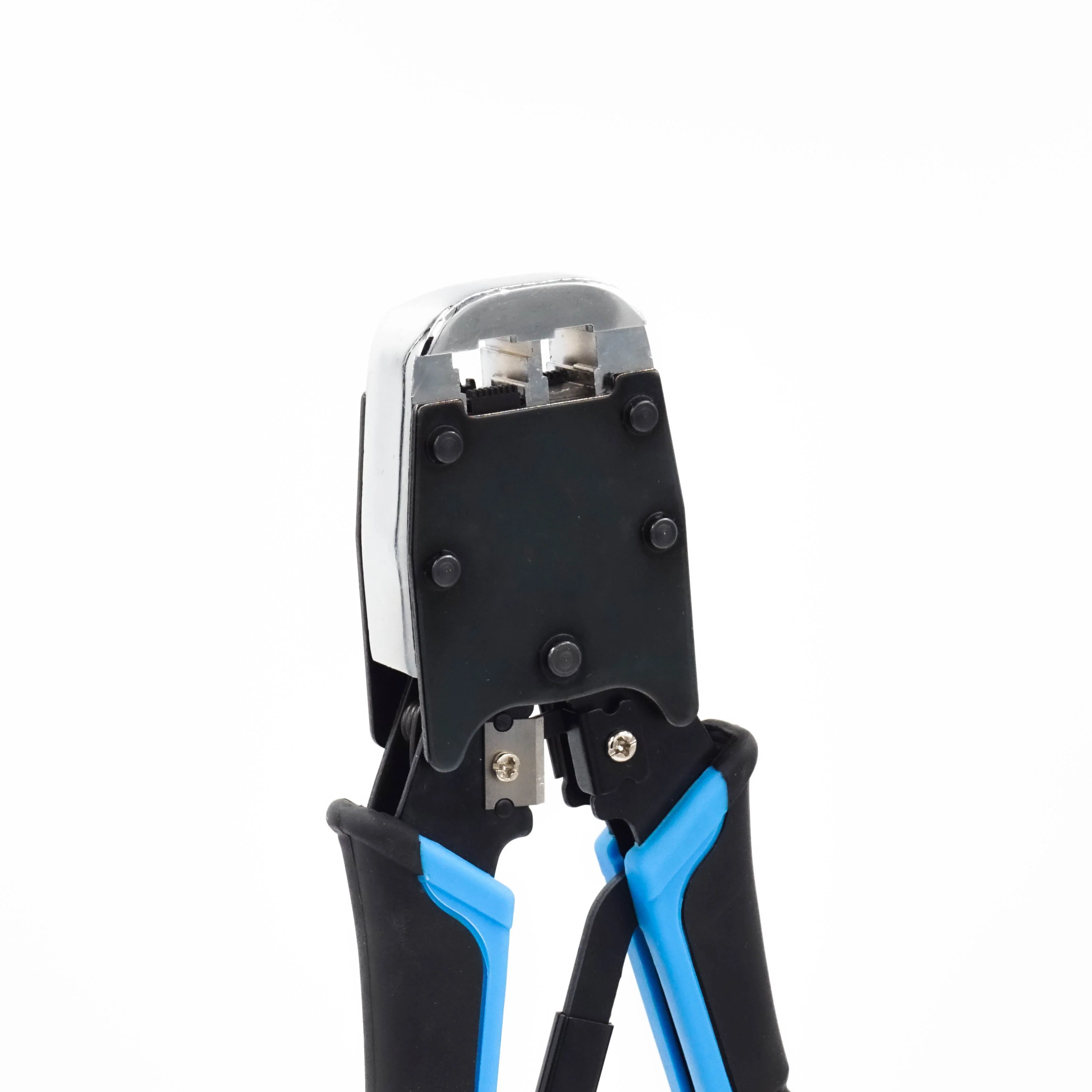

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 14

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

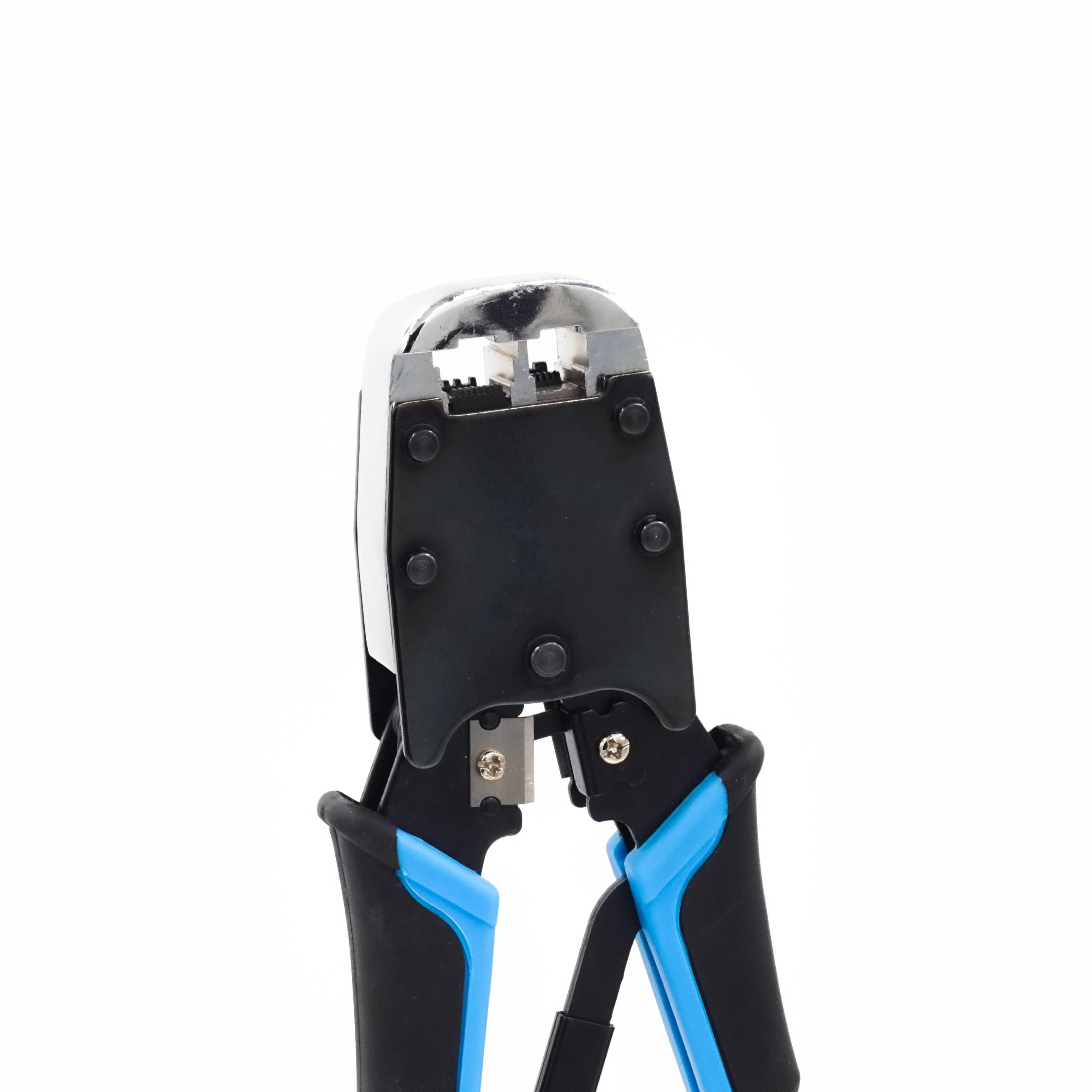

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 15

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

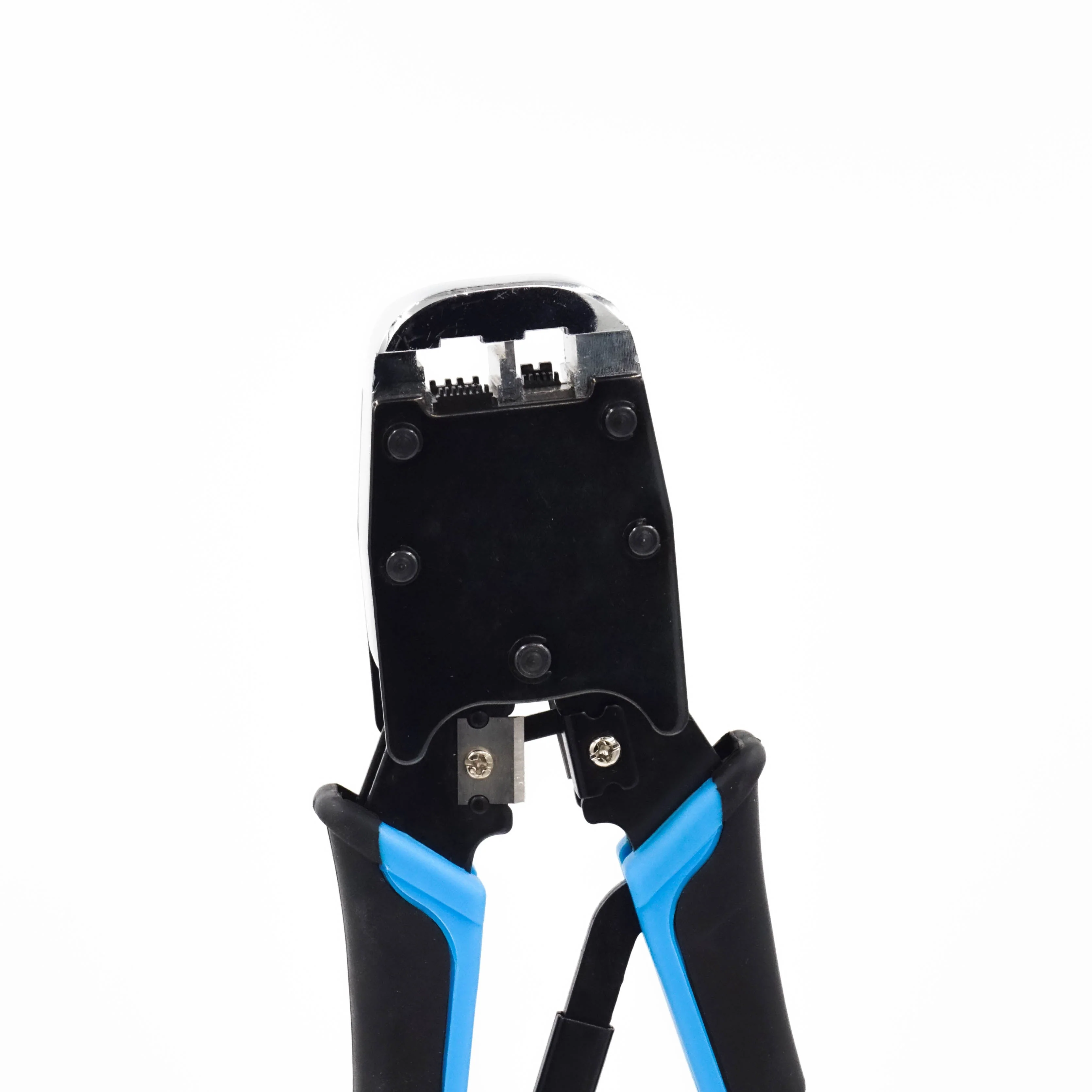

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 16

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

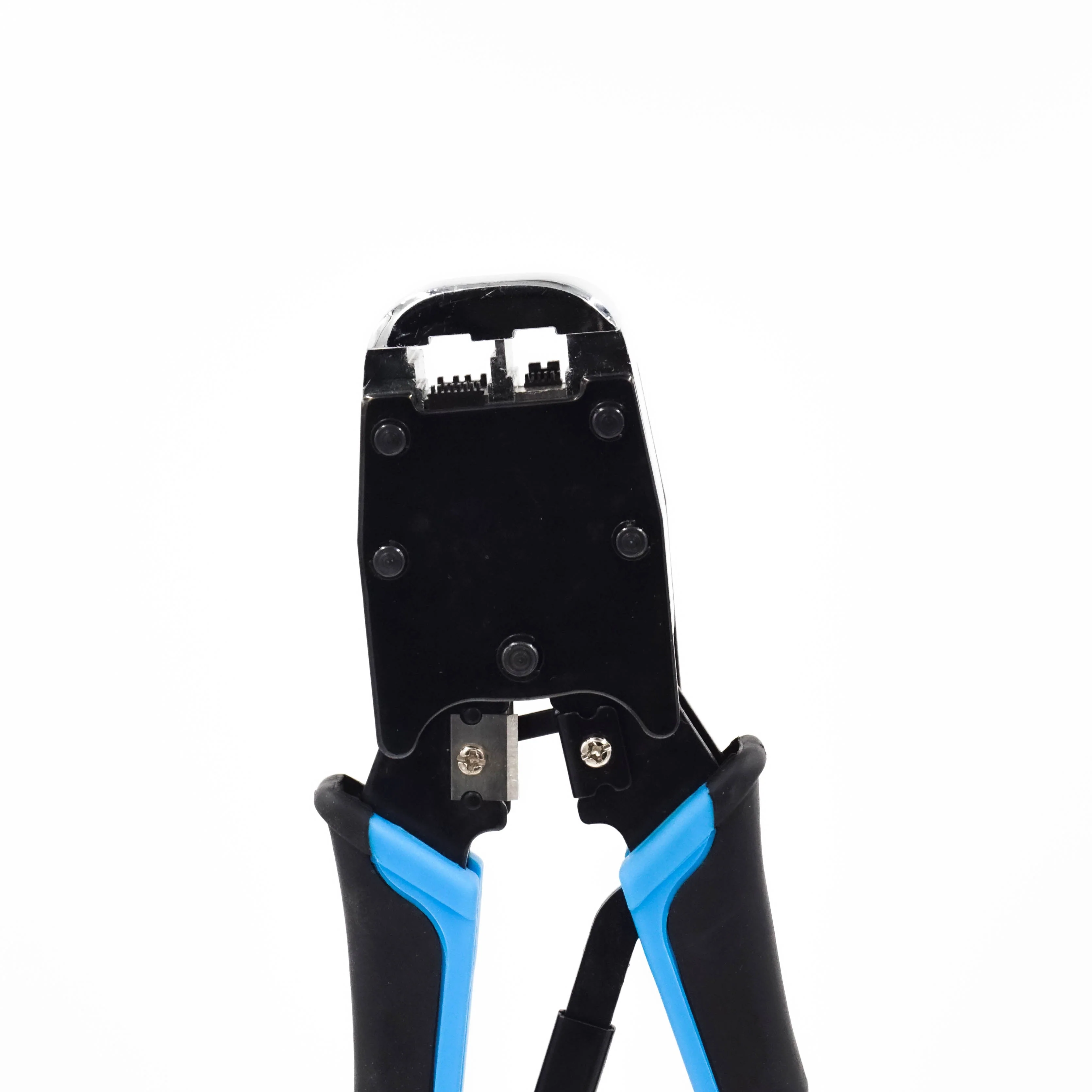

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 17

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

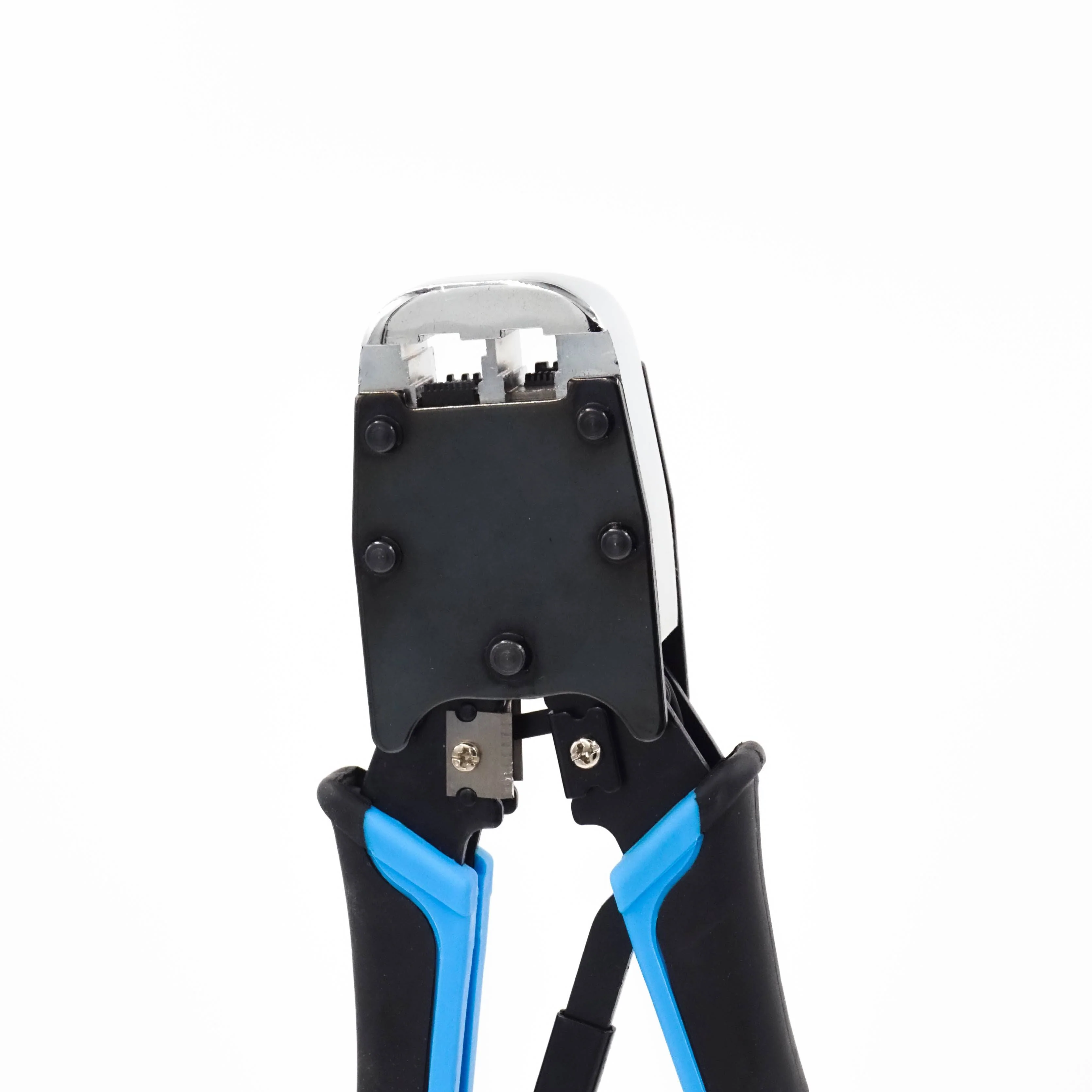

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 18

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

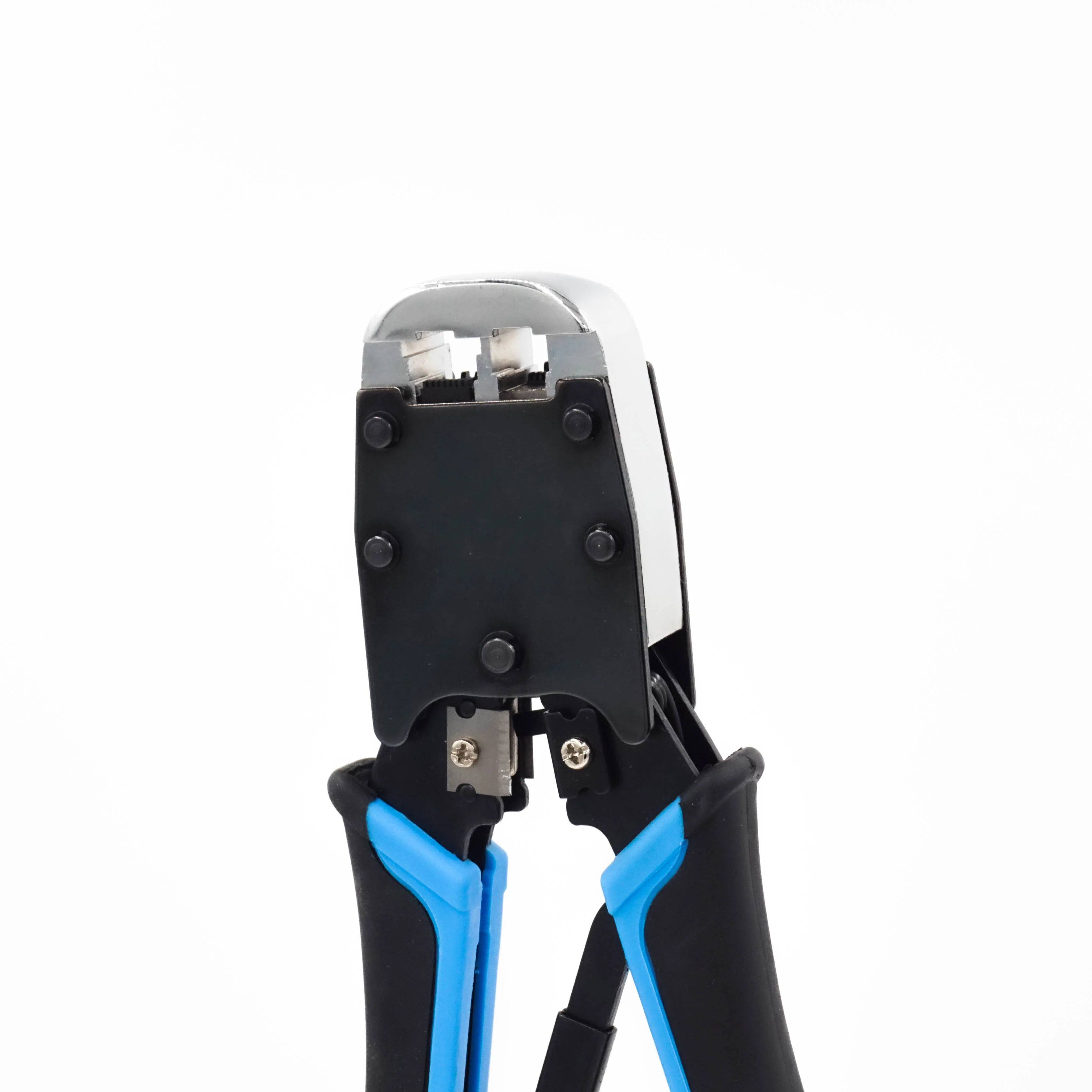

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 19

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

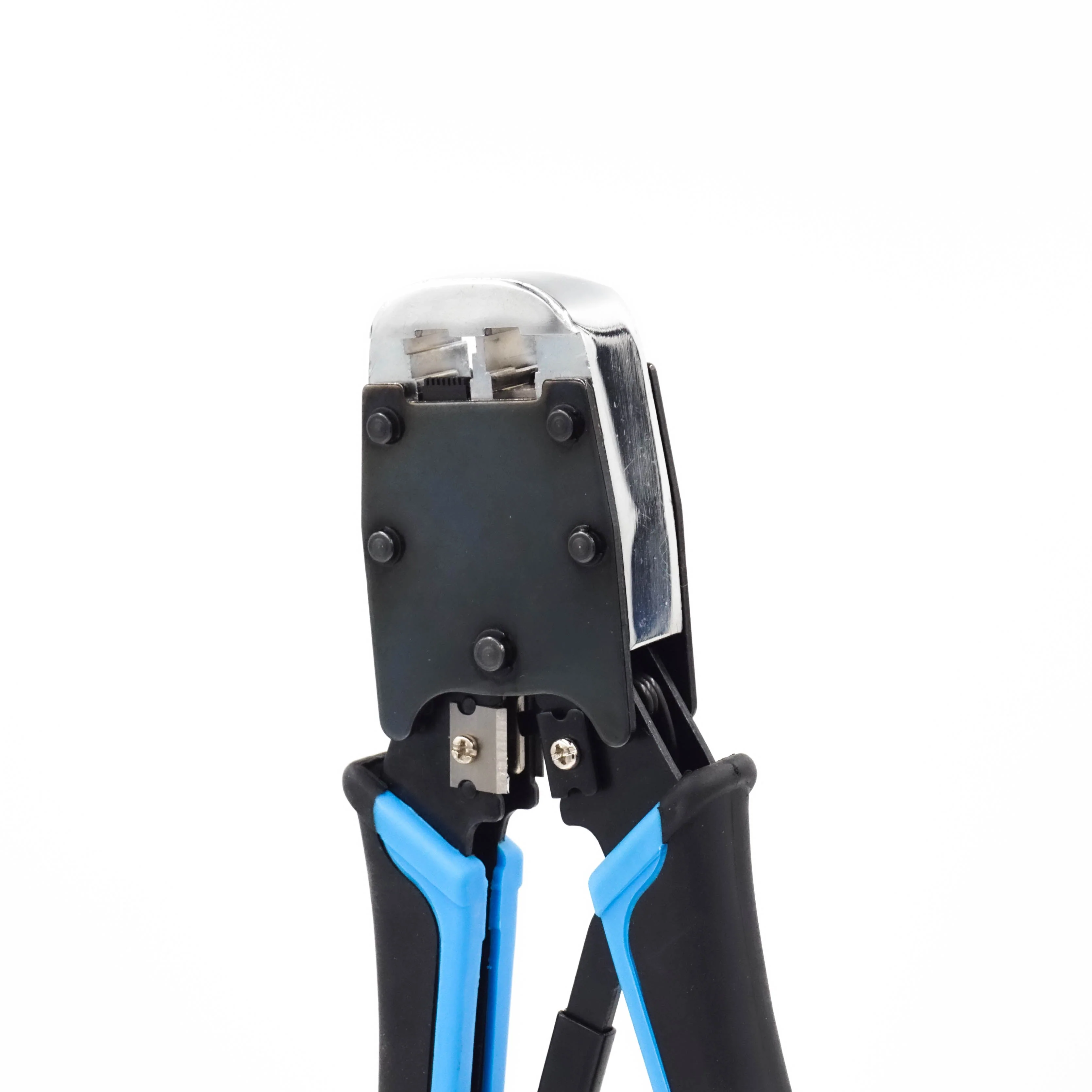

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 20

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 21

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

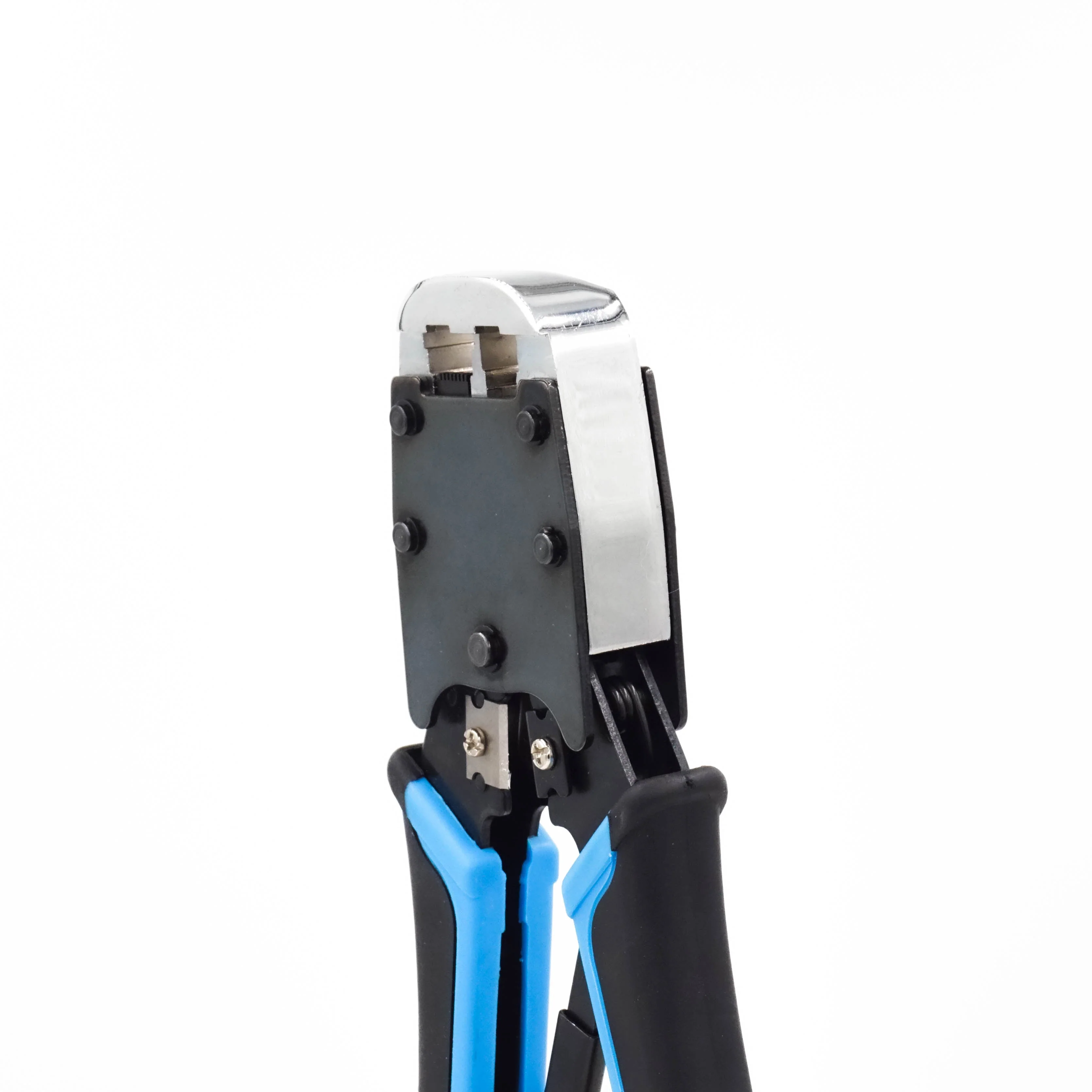

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 22

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

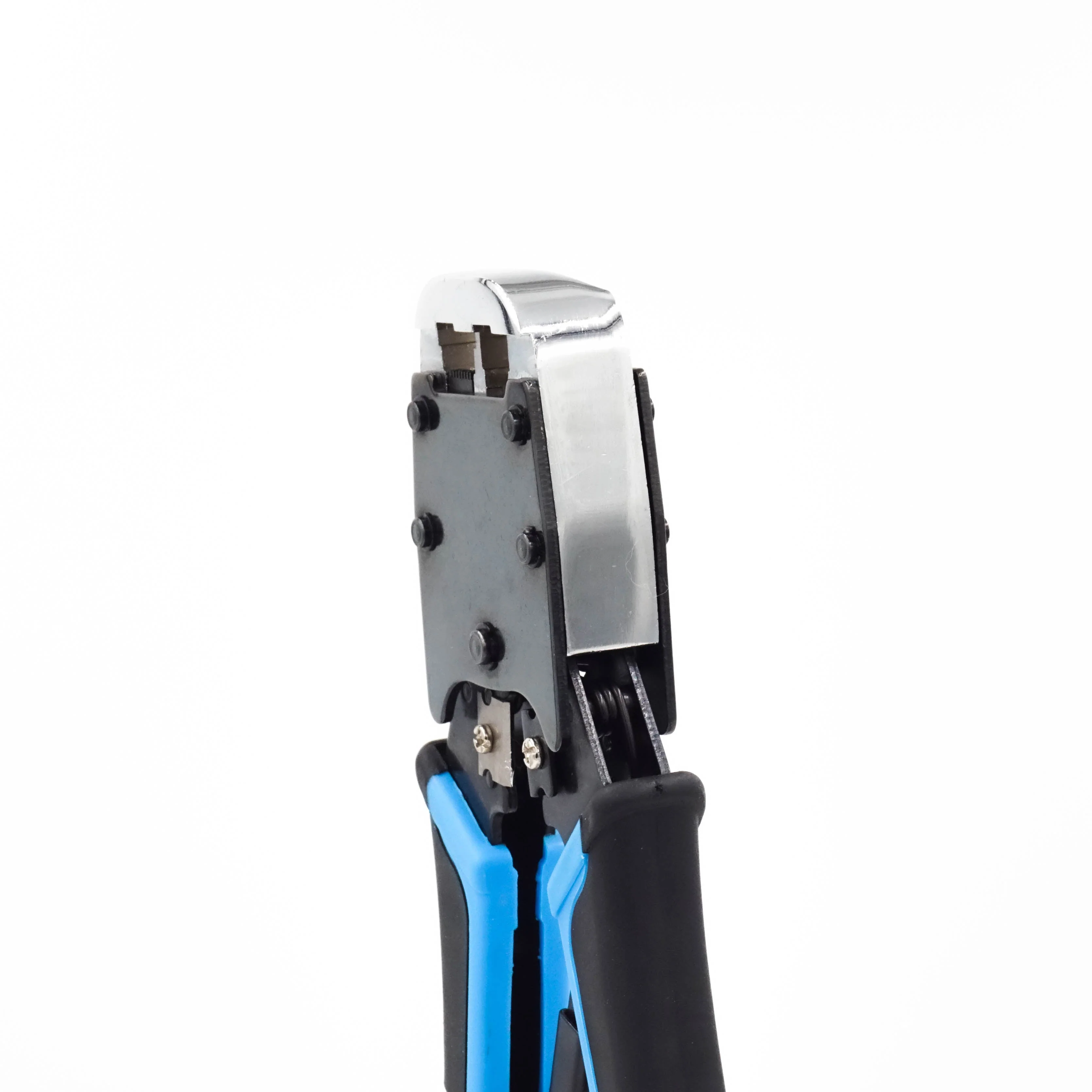

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 23

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

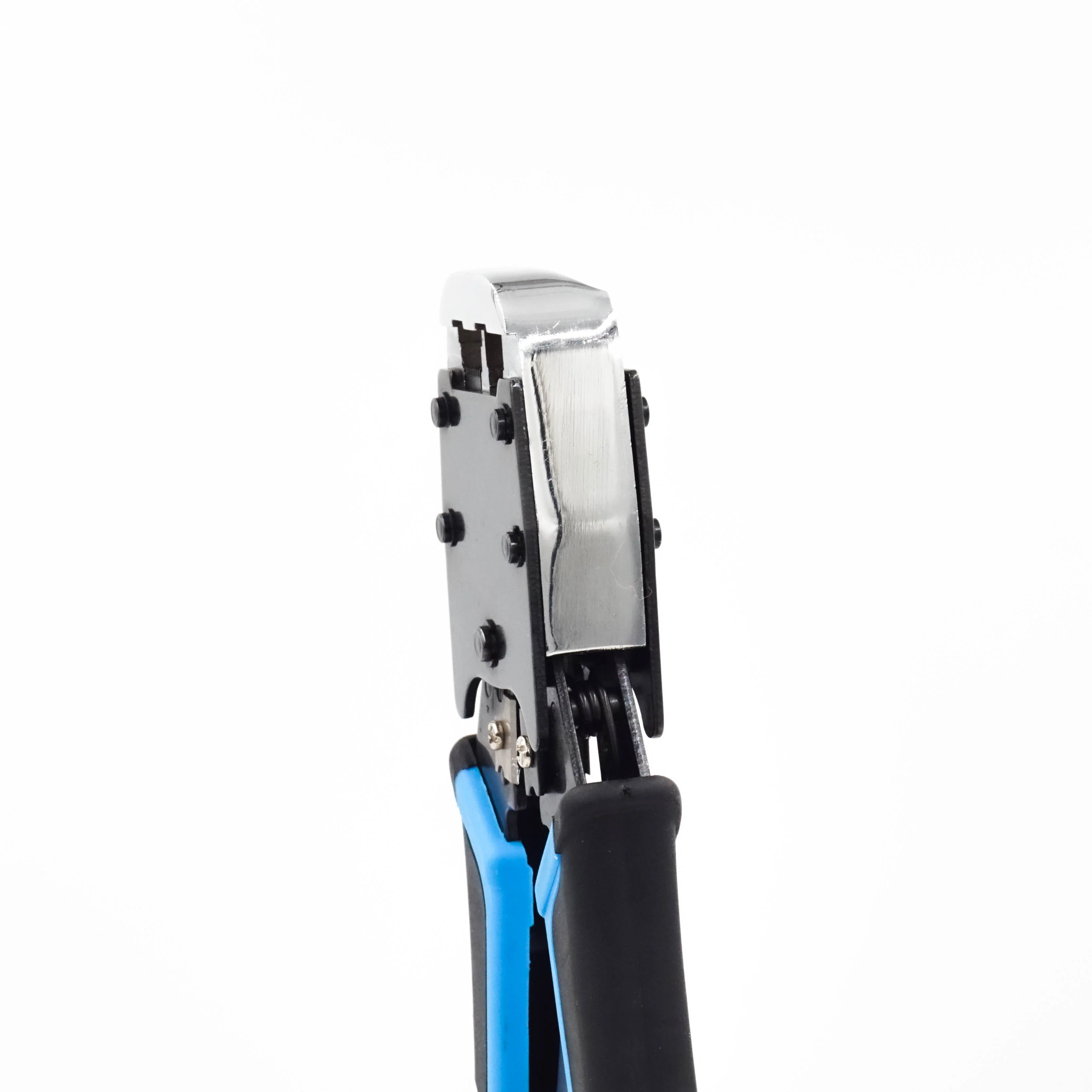

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 24

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

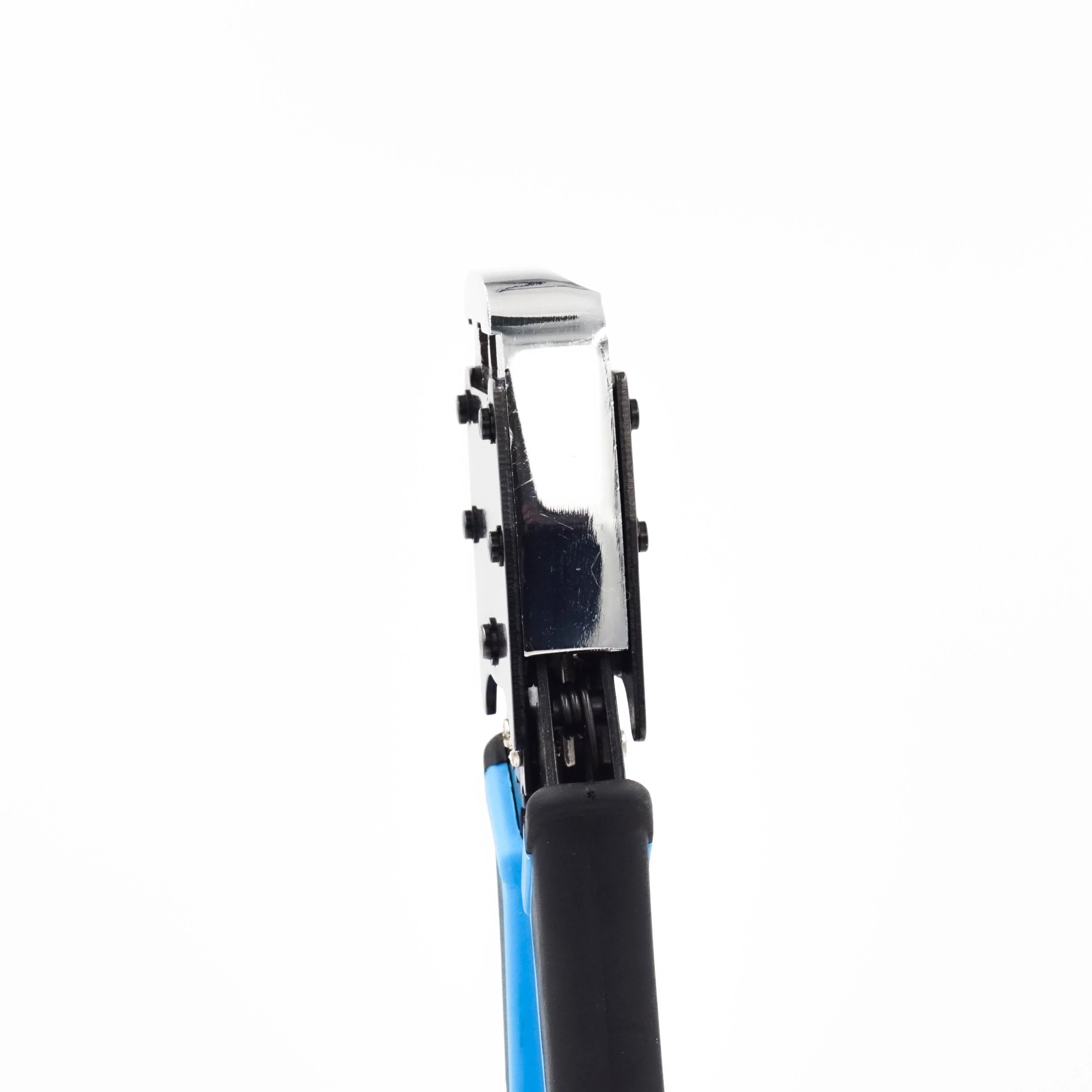

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 25

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

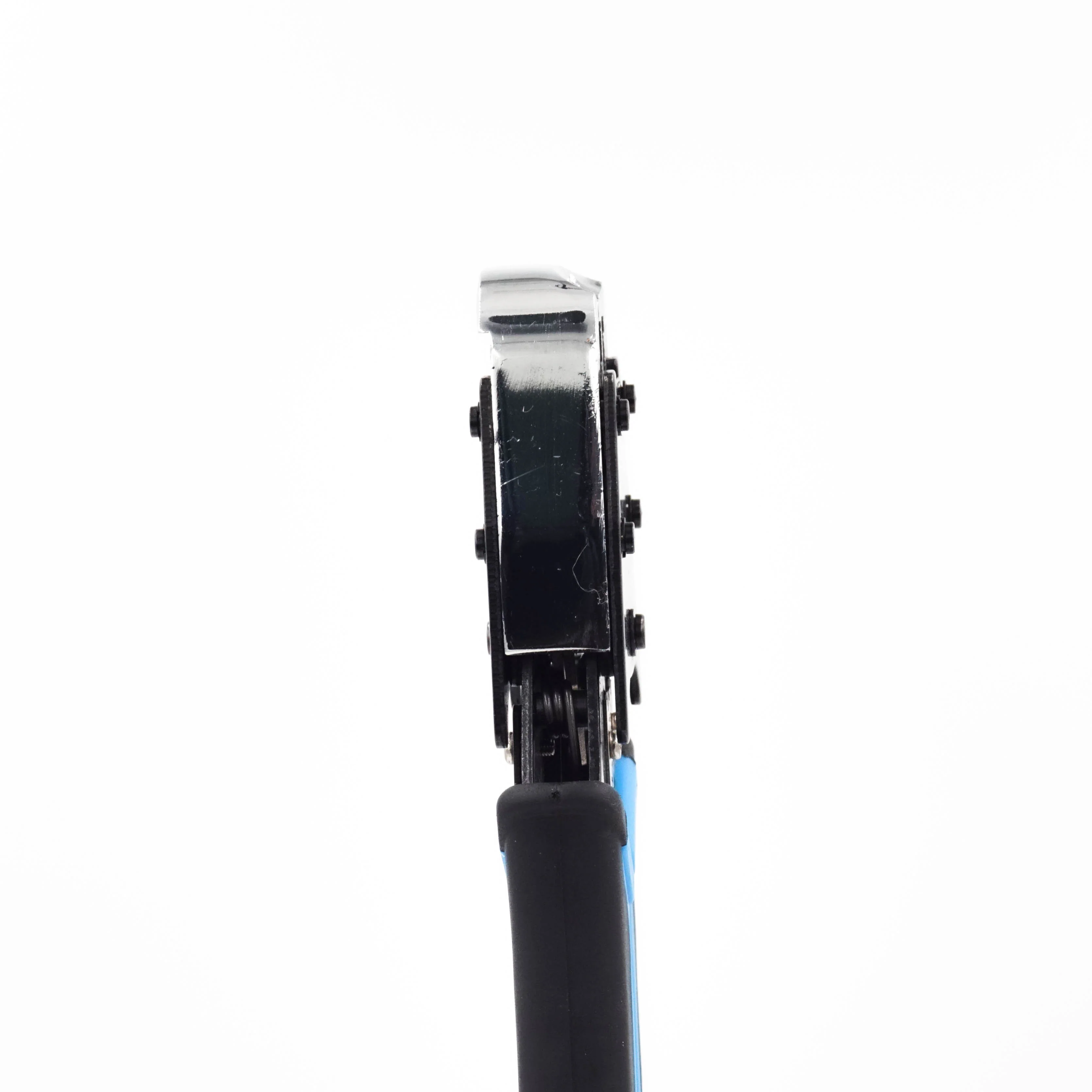

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 26

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

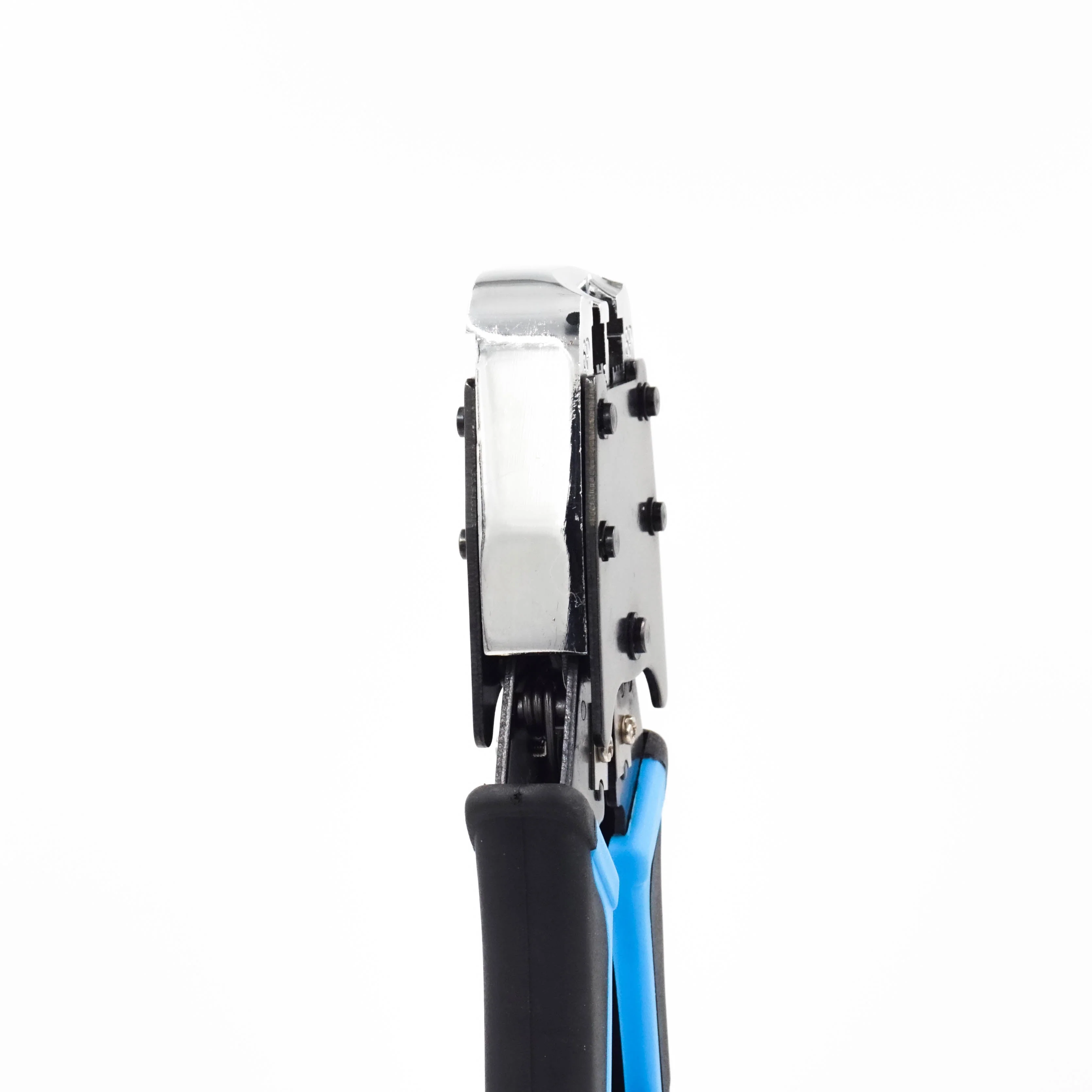

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 27

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 28

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

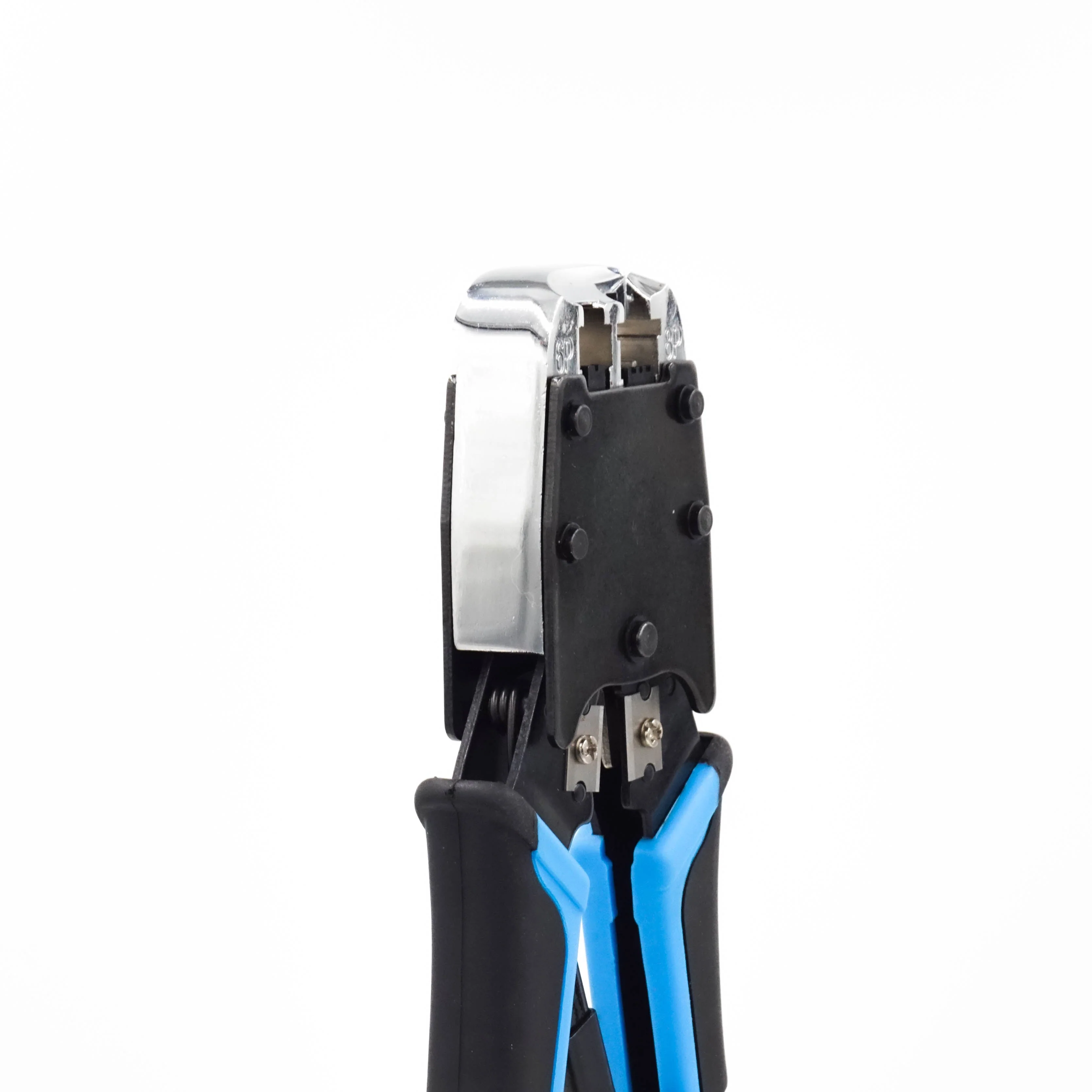

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 29

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

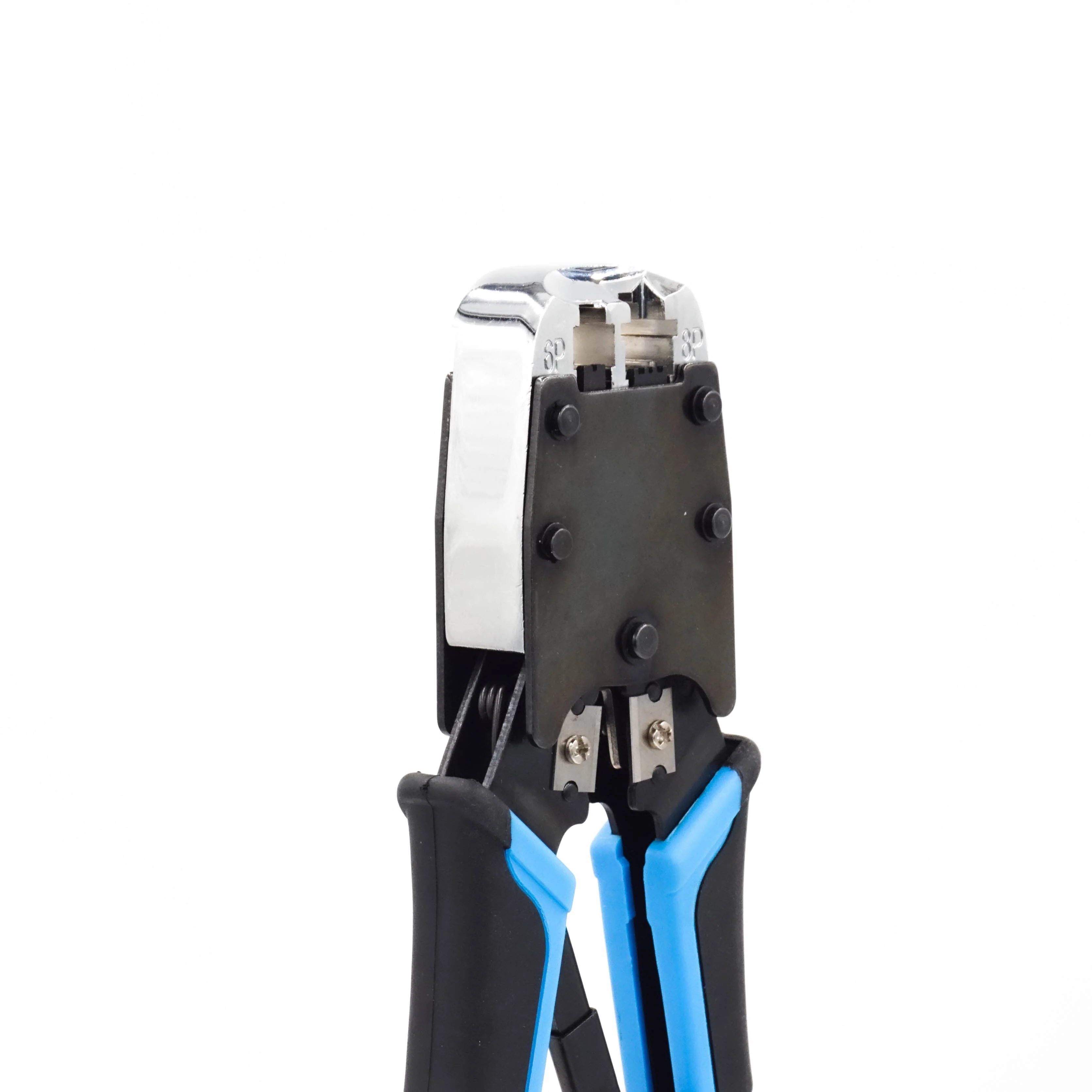

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 30

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

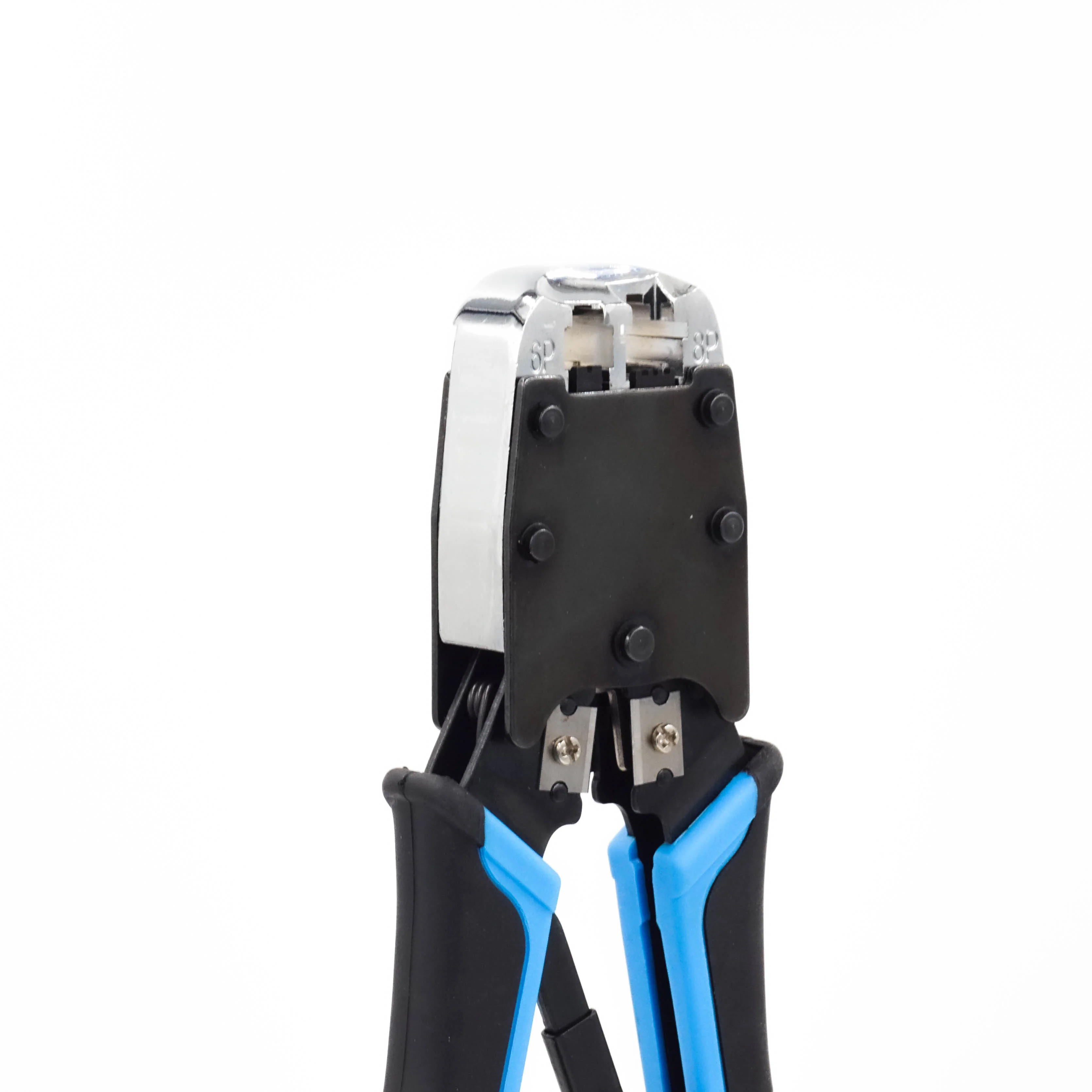

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 31

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

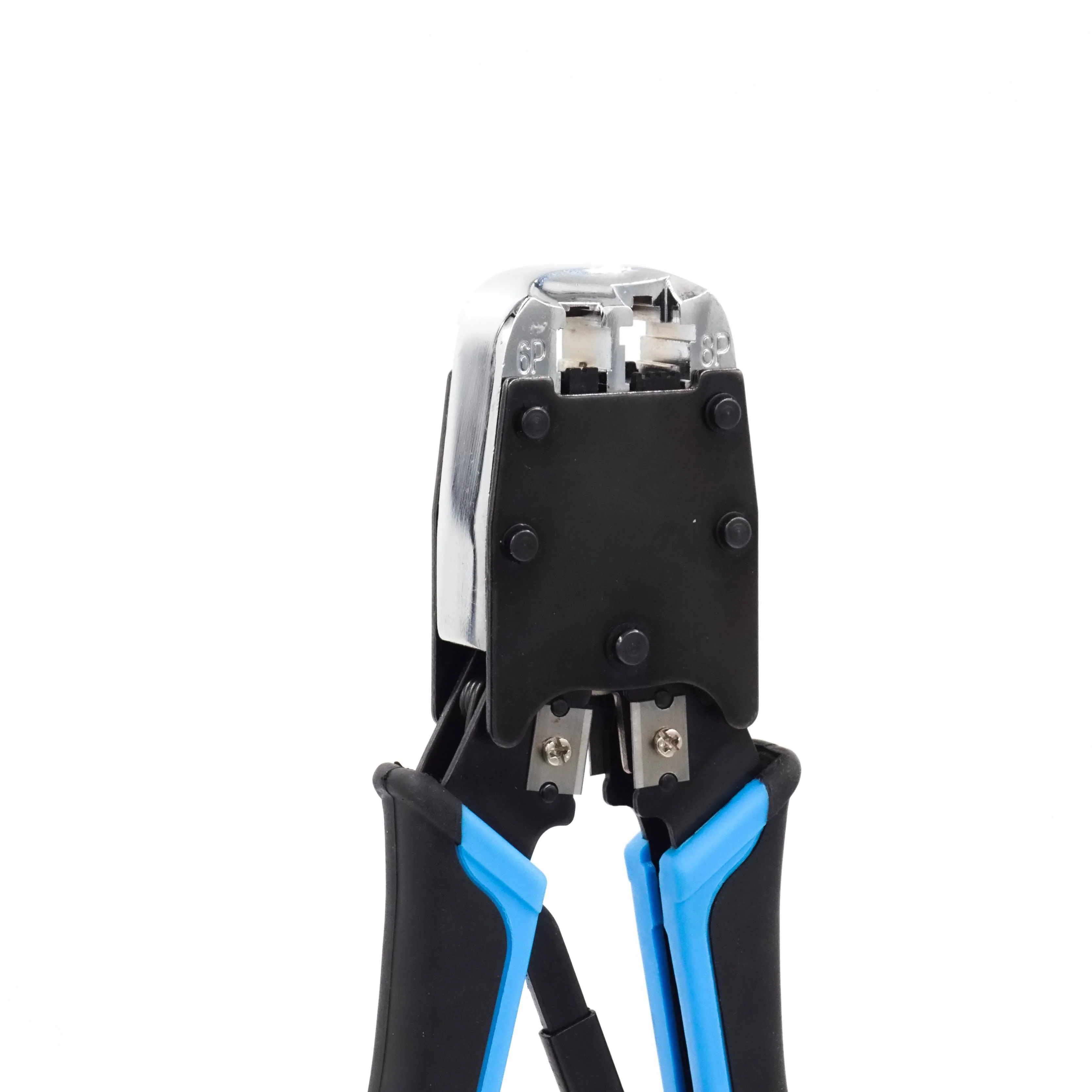

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 32

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

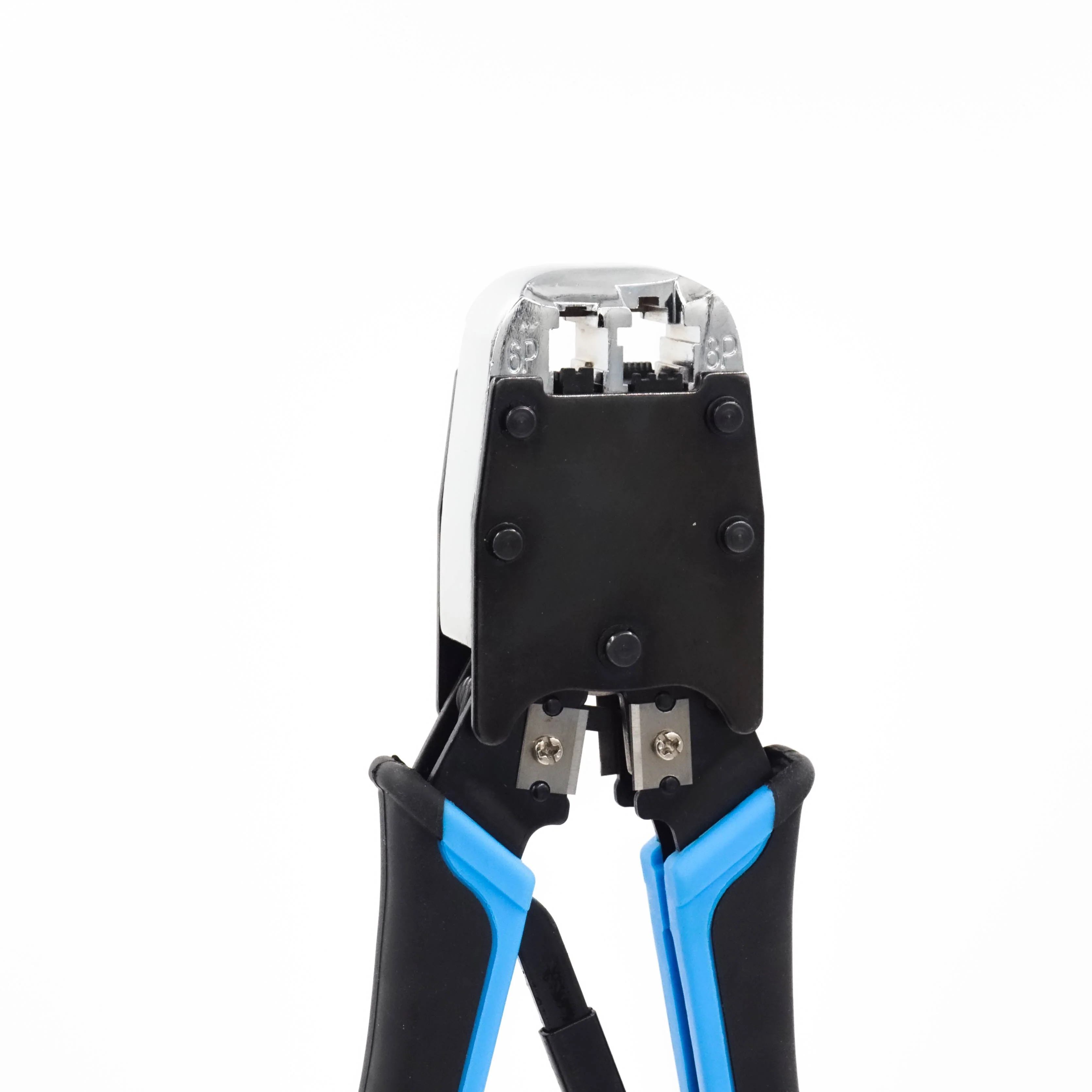

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 33

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

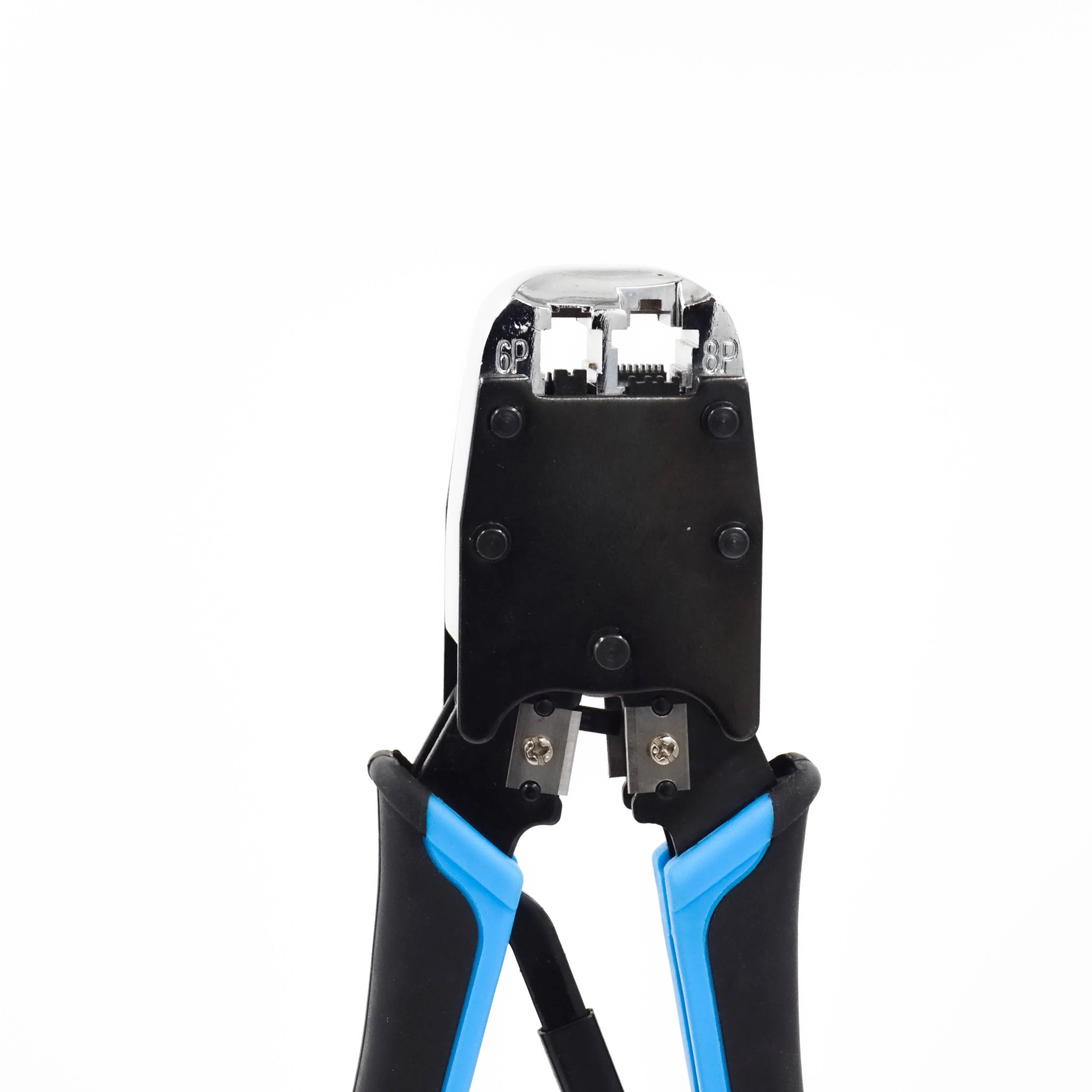

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 34

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 35

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 36

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

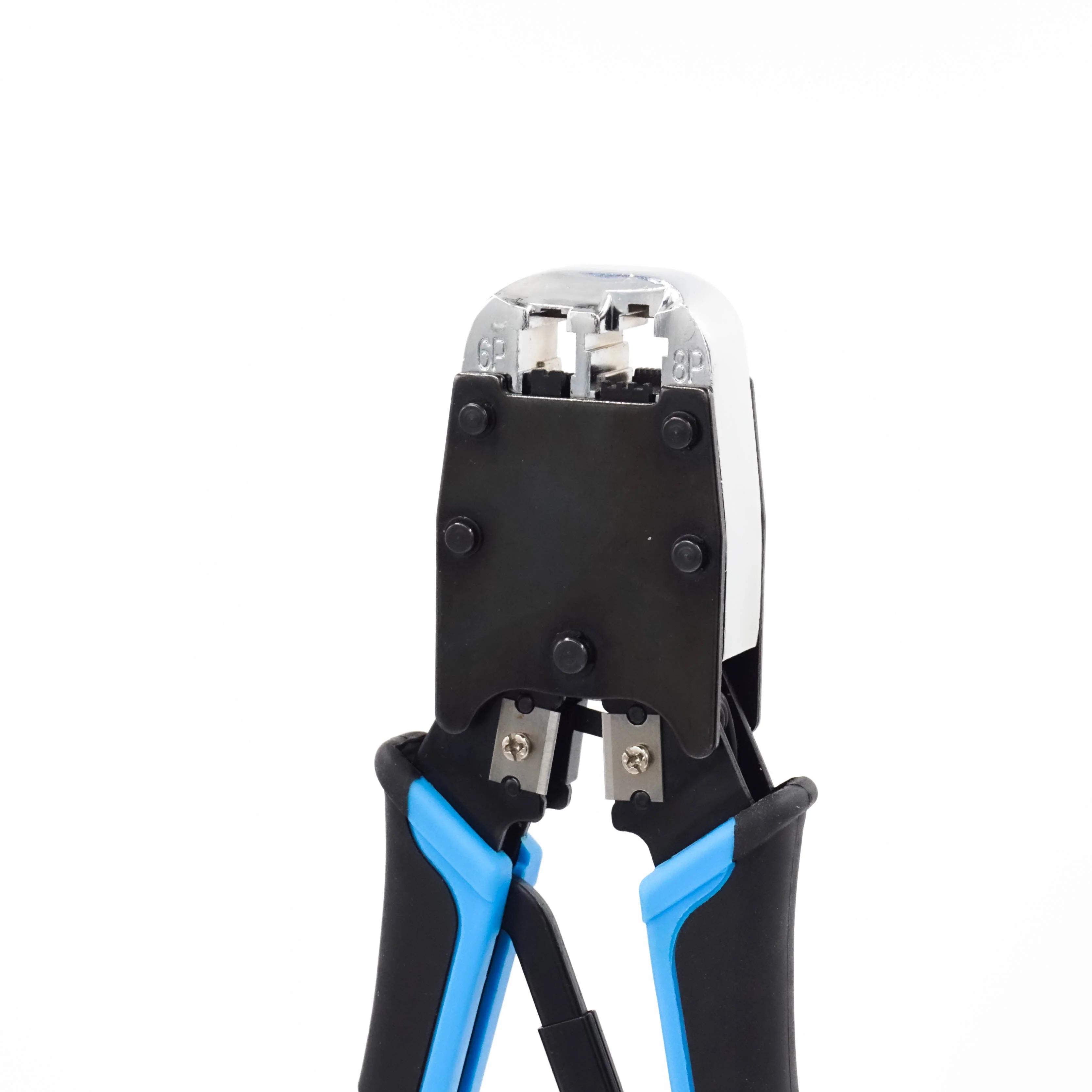

FD500R - CAT5, CAT5E, CAT6 Ethernet & Phone Connectors Crimping Tool, 1 Piece - Image 37
