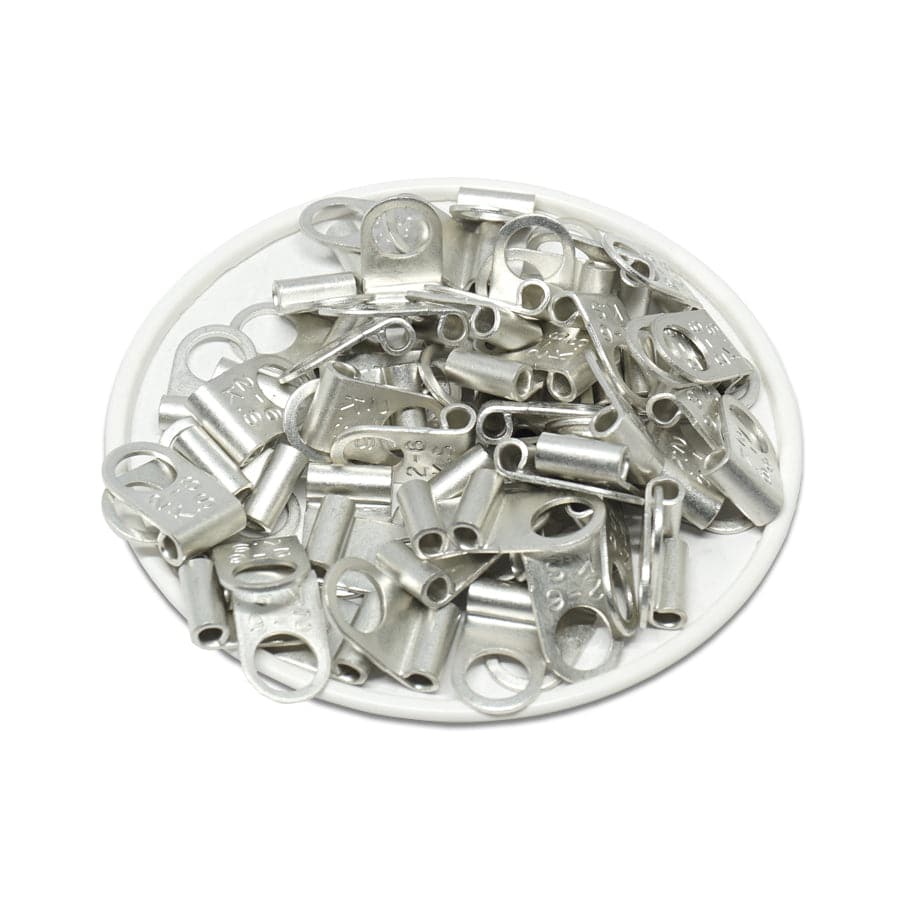

-70%FGNB2-6 - Non Insulated Flag Terminal - Ring Tongue - 16-14AWG—
$23.12
$6.94The Story
Non-insulated flag terminals with ring tongue enable the user to create a 90° connection without bending the conductor..
Dimensions & Features:
Product Drawing:
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | 1/4" |
| T: | 0.8mm (0.03") |
| L: | 16.3mm (0.64") |
| F: | 7.3mm (0.28") |
| W: | 9.6mm (0.37") |
| D: | 4.1mm (0.16") |
| D1: | 2.3mm (0.09") |
| D2: | 6.4mm (0.22") |
| Material: | Tin-Plated Copper |
| Temperature Rating: | 105oC |
| Volt Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts: None:Documents
Click to view product spec sheet:Videos
