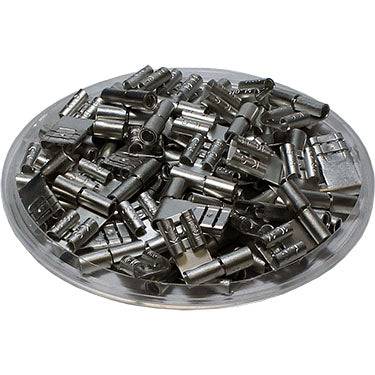

FLDNDX2-187(8) - 90° Non Insulated Quick Disconnects - 16-14AWG

FLDNDX2-187(8) - 90° Non Insulated Quick Disconnects - 16-14AWG

$3.38

Original: $11.27

-70%
FLDNDX2-187(8) - 90° Non Insulated Quick Disconnects - 16-14AWG—

$11.27

$3.38

The Story

Flag terminals are designed for use in tight spaces. The double crimp sleeve and serrations ensures a secure hold onto the wire. This item can be easily installed and removed without the use of tools.


Dimensions & Features:

Wire Range: 16-14AWG
Terminal Material: Tin-Plated Brass
Current: 15AMP
Crimp: Double
NEMA Tab: 0.8mm x 4.75 (0.03" x 0.18)
W: 5.5mm (0.22")
F: 6.2mm (0.24")
L: 12.2mm (0.48")
C: 2.2mm (0.06")
B: 6.5mm (0.26")



Technical Drawing:


Cross References

Cross References:

None:

Documents

Click to view product spec sheet:

Videos

Click here to check out our YouTube channel:

Description

Flag terminals are designed for use in tight spaces. The double crimp sleeve and serrations ensures a secure hold onto the wire. This item can be easily installed and removed without the use of tools.


Dimensions & Features:

Wire Range: 16-14AWG
Terminal Material: Tin-Plated Brass
Current: 15AMP
Crimp: Double
NEMA Tab: 0.8mm x 4.75 (0.03" x 0.18)
W: 5.5mm (0.22")
F: 6.2mm (0.24")
L: 12.2mm (0.48")
C: 2.2mm (0.06")
B: 6.5mm (0.26")



Technical Drawing:


Cross References

Cross References:

None:

Documents

Click to view product spec sheet:

Videos

Click here to check out our YouTube channel:
