Original: $7.10
-70%$7.10
$2.13The Story

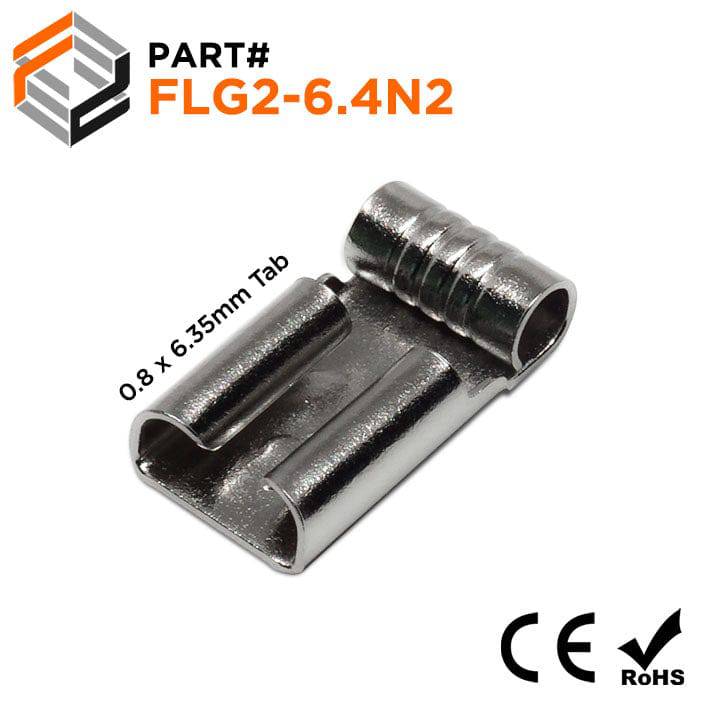

Non insulated flag quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
| Wire Size: | 16 to 14 AWG |
| L: | 14.0mm (0.551") |
| F: | 8.5mm (0.33") |
| W: | 7.4mm (0.291") |
| D: | 7.3mm (0.287") |
| D1: | 3.3mm (0.130") |
| D2: | 2.3mm (0.091") |
| Nema Tab: | 0.8 x 6.35mm (0.03 x 0.25") |
| Max Temperature: | 900 °F (482 °C) |
| Terminal Material: | Nickel Plated Steel |
| Max Electrical Rating: | 10-15 AMP |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
