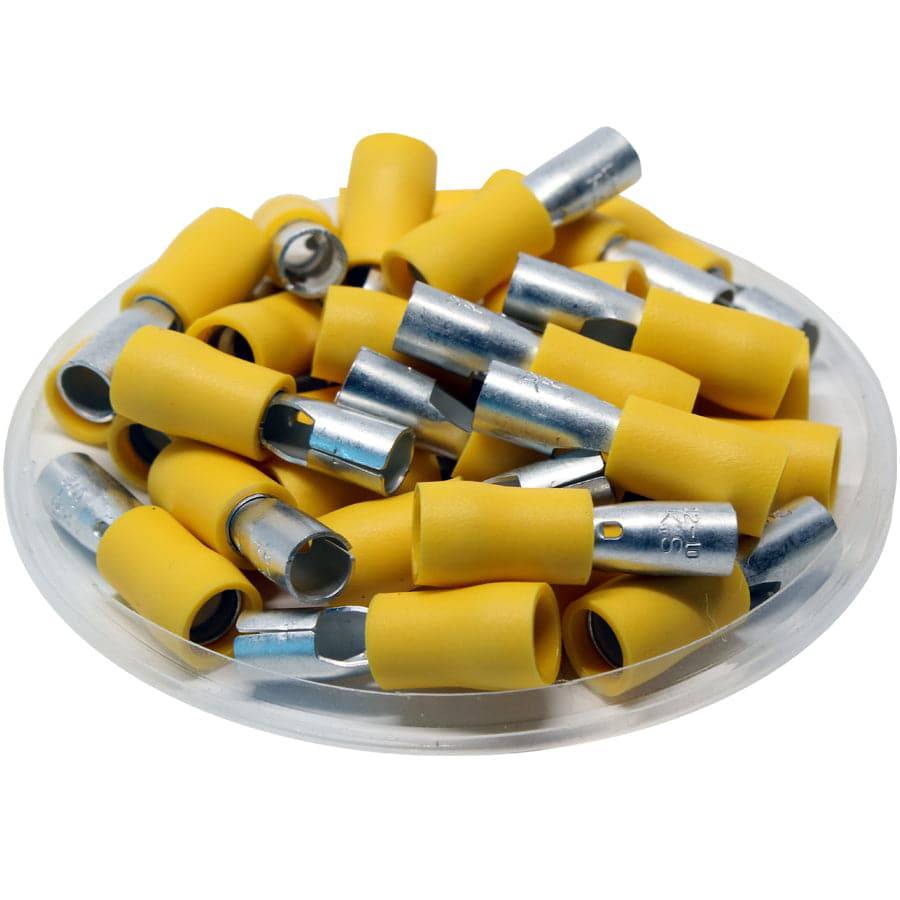

-70%FRSV5-195 - Vinyl Insulated Female Bullet Connectors - 12-10 AWG—
$13.36
$4.01The Story
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Product Drawing:
None:
| Wire Range: | 12-10 AWG |
| C: | 0.13" (3.4mm) |
| L: | 0.96" (24.5mm) |
| F: | 0.28" (7.0mm) |
| B: | 0.43" (11.0mm) |
| W: | 0.19" (4.9mm) |
| D: | 0.24" (6.2mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Vinyl |
| Insulation Color: | Yellow |
| Temperature Rating: | 105oC |
| Max AMP Rating: | 50 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
