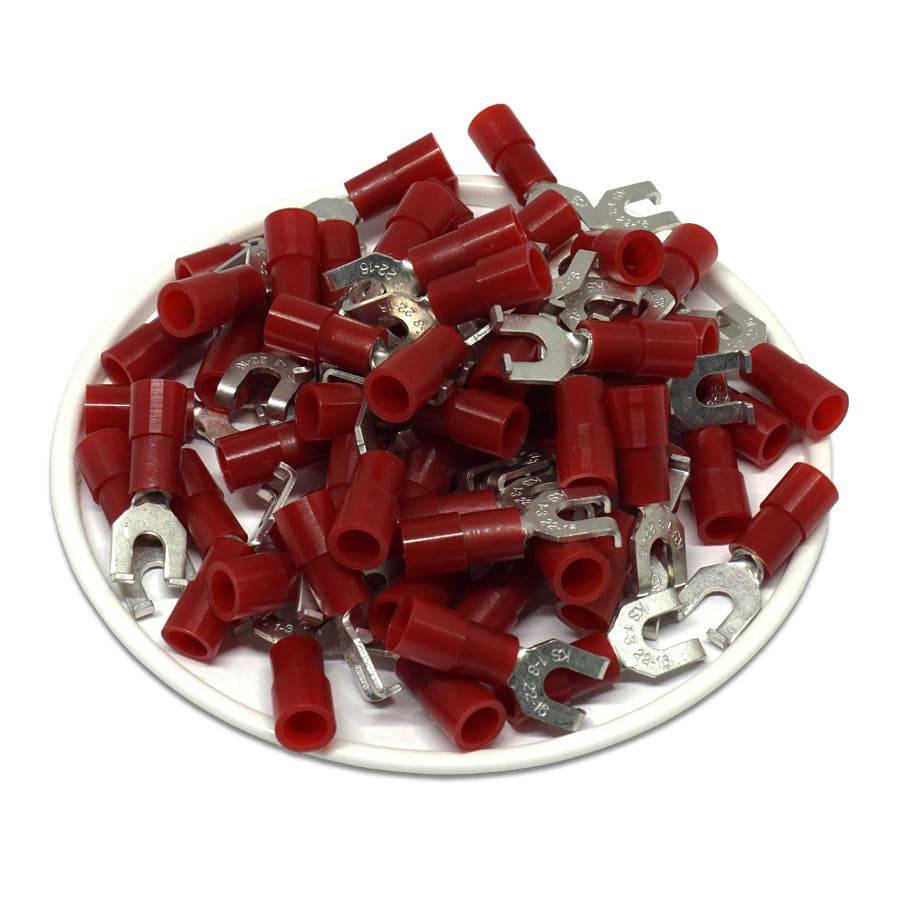

FSNYB1-3.2 - Nylon Insulated Flange Spade Terminals - 22-16 AWG—
$15.41
The Story
Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #4 |
| Color: | Red |
| Insulation Material: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105oC - 600 Volts |
| Maxed Electrical Current: | 18AMP |
| T: | 0.8mm (0.03") |
| L: | 20.0mm (0.80") |
| F: | 5.1mm (0.20") |
| E: | 11.0mm (0.43") |
| W: | 7.5mm (0.30") |
| A: | 1.5mm (0.06") |
| D: | 4.0mm (0.16") |
| D1: | 1.7mm (0.07") |
| D2: | 3.7mm (0.15") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
