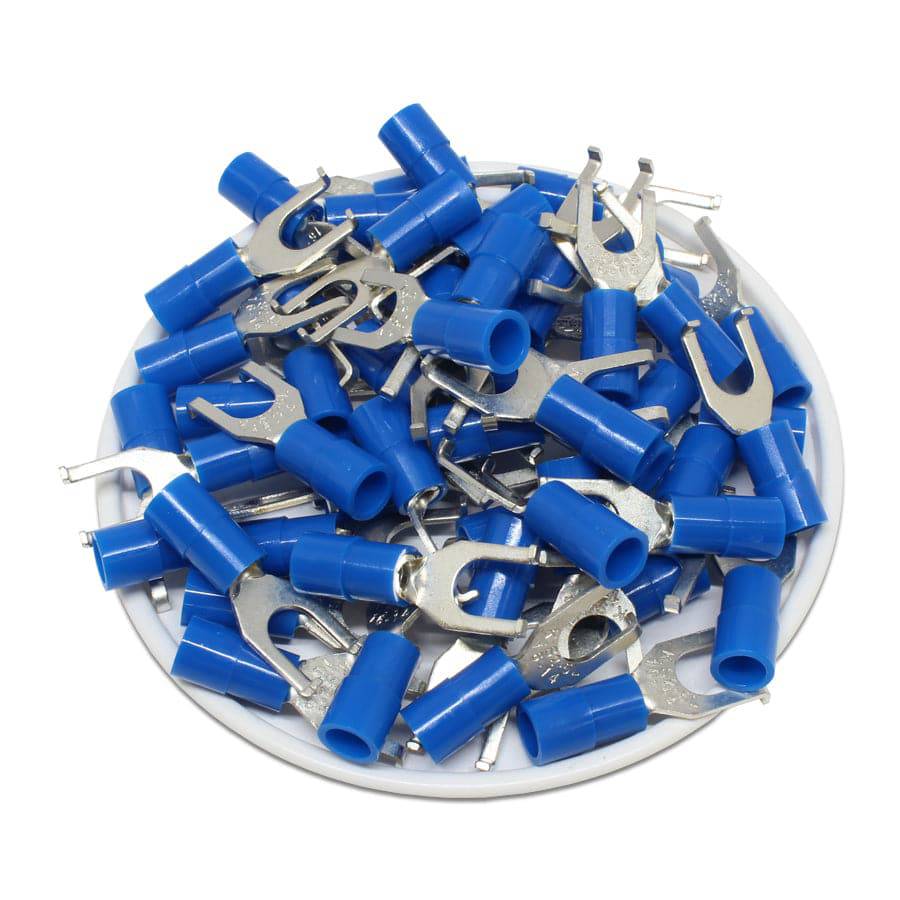

FSNYBL2-4 - 16 to 14 AWG Nylon Insulated Insulated Flange Spade Terminals, #8 Stud, 100 Pieces—
$14.15
The Story
Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
McMaster-Carr: 7869K45
Tyco AMP: RB14-8FS
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | #8 |
| Color: | Blue |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Temperature: | 105oC |
| Max Electrical Rating: | 600 Volts |
| Max Electrical Current: | 30AMP |
| T: | 0.8mm (0.03") |
| L: | 24.0mm (0.95") |
| F: | 7.2mm (0.28") |
| E: | 11.0mm (0.43") |
| W: | 8.5mm (0.34") |
| A: | 1.5mm (0.06") |
| D: | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| D2: | 4.3mm (0.17") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 7869K45
Tyco AMP: RB14-8FS
