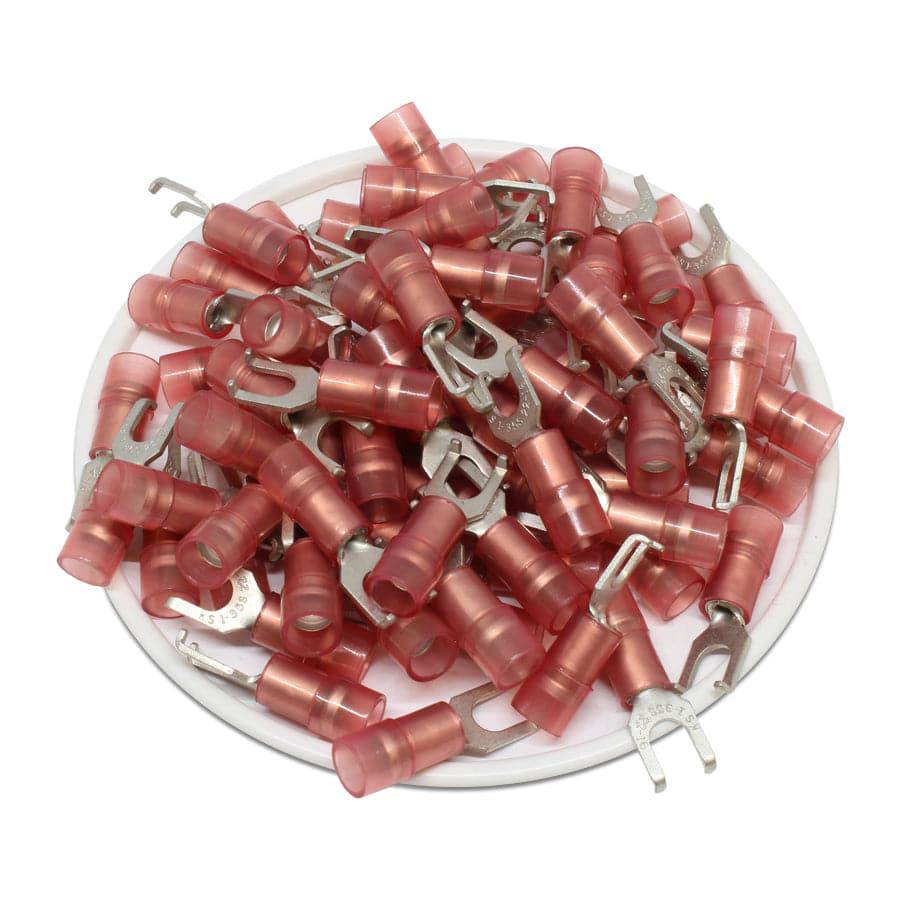

FSNYDS1-37 - Nylon Flange Spade Terminal Double Crimp - 22-16 AWG - Red
HomeStore

FSNYDS1-37 - Nylon Flange Spade Terminal Double Crimp - 22-16 AWG - Red

FSNYDS1-37 - Nylon Flange Spade Terminal Double Crimp - 22-16 AWG - Red

$17.53
FSNYDS1-37 - Nylon Flange Spade Terminal Double Crimp - 22-16 AWG - Red—
$17.53

The Story

Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2

Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: #6 Stud
Color: Red
T: 0.75mm (0.03")
L: 20mm (0.79")
F: 5.1mm (0.20")
E: 11mm (0.43")
W: 6.4mm (0.25")
A: 1.5mm (0.06")
D: 4mm (0.16")
D1: 1.7mm (0.07")
D2: 3.7mm (0.15")
Seam: Brazed
Terminal Material: Tin-Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Amp Rating: 18A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:



Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Click here to check out our YouTube channel:

Description

Nylon insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength. UL Flammability UL94V-2

Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: #6 Stud
Color: Red
T: 0.75mm (0.03")
L: 20mm (0.79")
F: 5.1mm (0.20")
E: 11mm (0.43")
W: 6.4mm (0.25")
A: 1.5mm (0.06")
D: 4mm (0.16")
D1: 1.7mm (0.07")
D2: 3.7mm (0.15")
Seam: Brazed
Terminal Material: Tin-Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Amp Rating: 18A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:



Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Click here to check out our YouTube channel:
