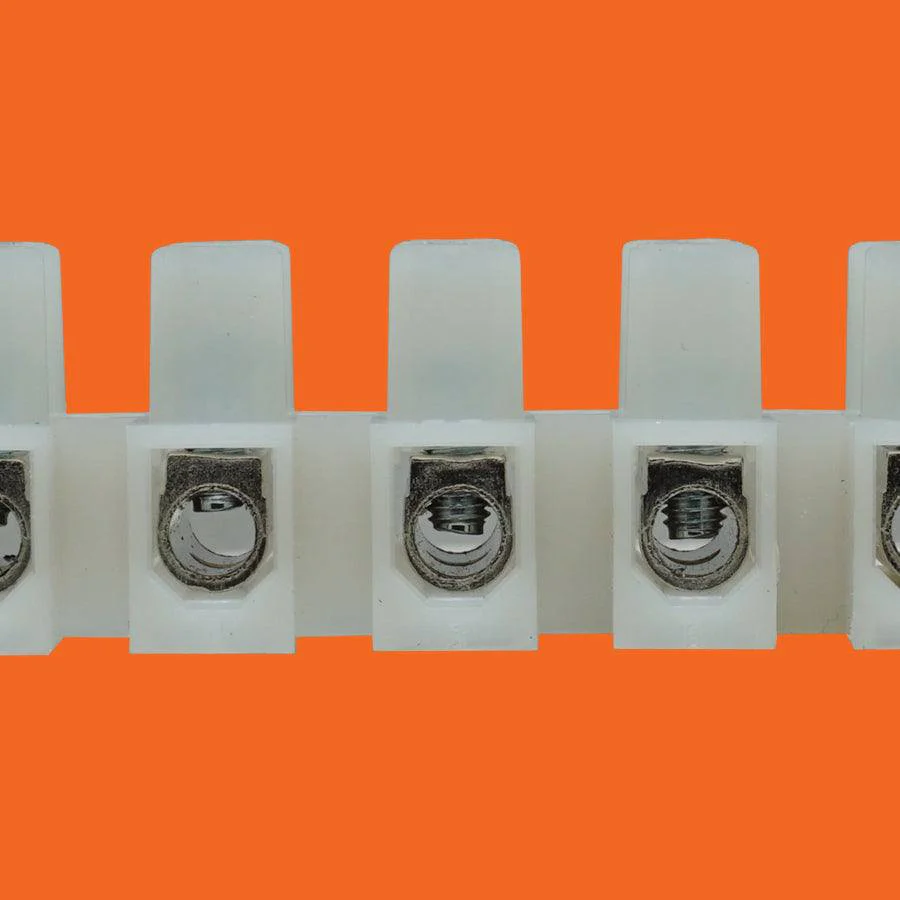

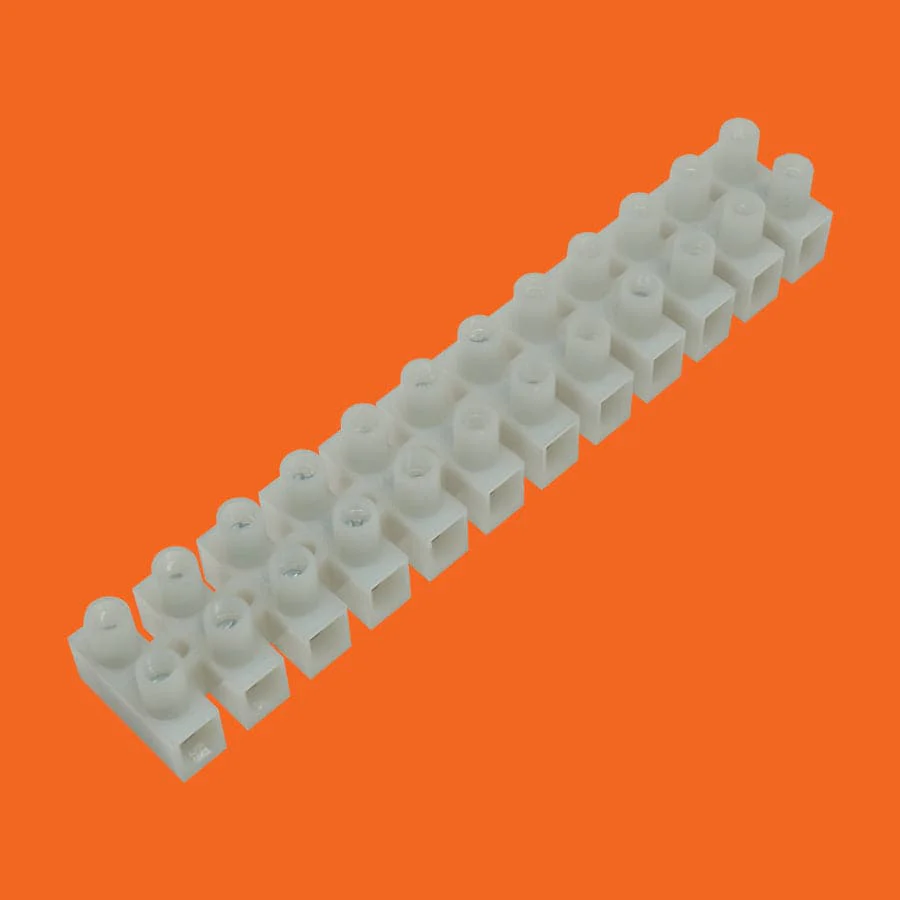

18 to 10 AWG Barrier Strip - 300v, 30A, 12 Poles, 10mm Pitch #GT1450B-10—
$5.85
The Story

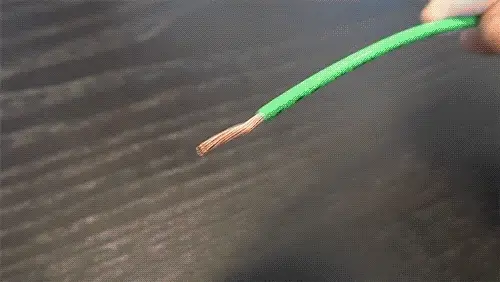

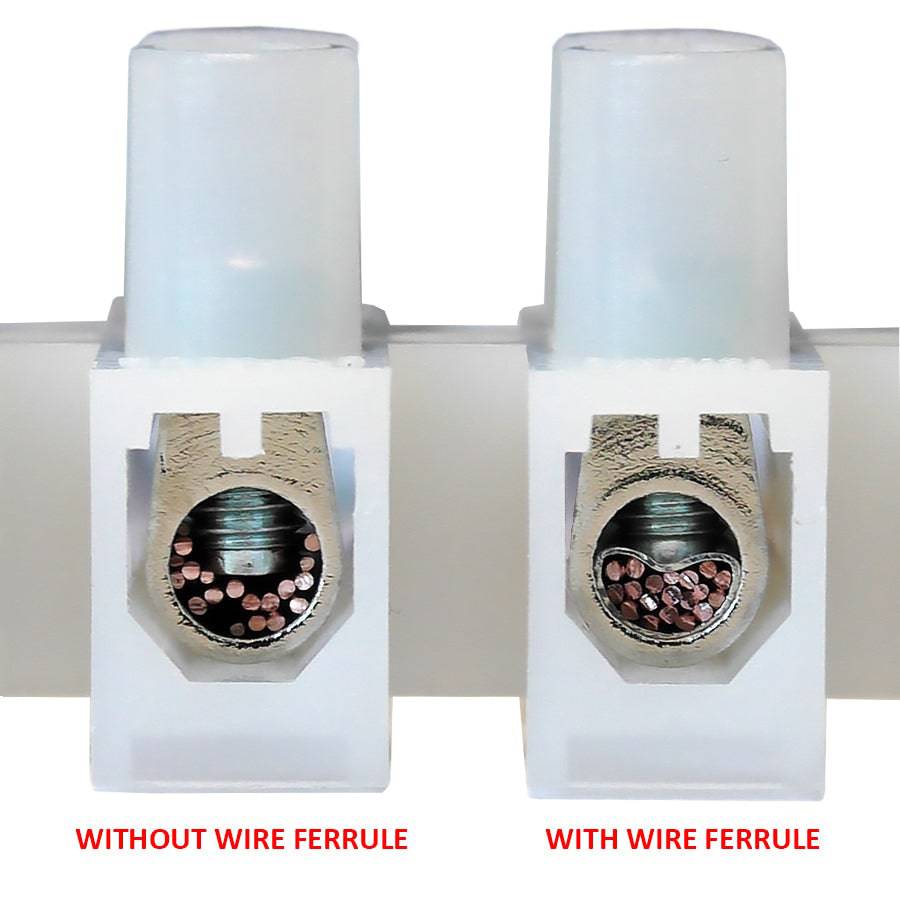

Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule is encouraged to prevent the wire from fraying.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire AWG: | 18-10 AWG |
| Stripping Length: | 7-8mm |
| Pitch: | 10mm (0.39") |
| A: | 116.8mm (4.60") |
| B: | 20mm (0.79") |
| C: | 16.7mm (0.66") |
| D: | 10mm (0.39") |
| E: | 3.5mm (0.14") |
| F: | 6.7mm (0.26") |
| Number of Poles: | 12 Poles |
| Wire Protector: | No |
| Material: | Polyamide (PA66) |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 30AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
