$9.48

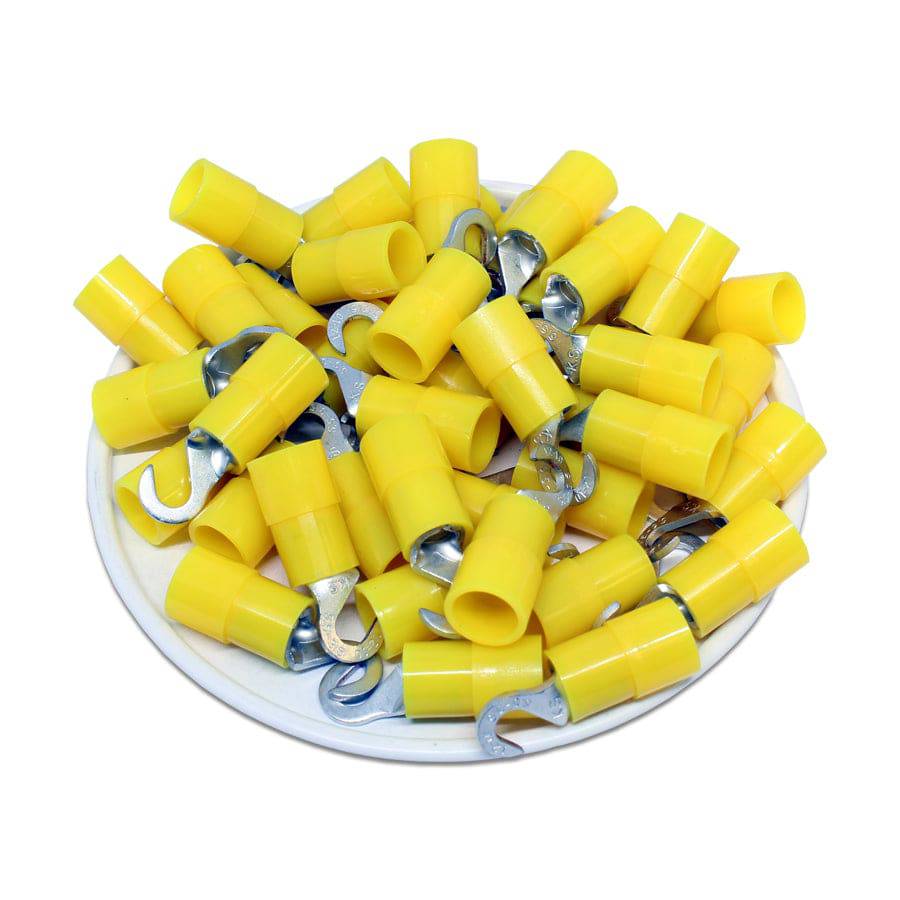

HNYB5-3.7 - Nylon Insulated Hook Terminals - 12-10 AWG - Yellow - 50/pack—
$9.48
The Story
Nylon insulated hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.
Product Drawing:
None:
| Wire Range: | 16-14 AWG |
| T: | 0.04" (1.0mm) |
| L: | 0.89" (22.7mm) |
| F: | 0.24" (6.1mm) |
| E: | 0.51" (13.0mm) |
| W: | 0.37" (7.2mm) |
| D: | 0.25" (6.4mm) |
| D1: | 0.13" (3.4mm) |
| D2: | 0.15" (3.7mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Stud Size: | #6 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!Description
Nylon insulated hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.
