$5.15

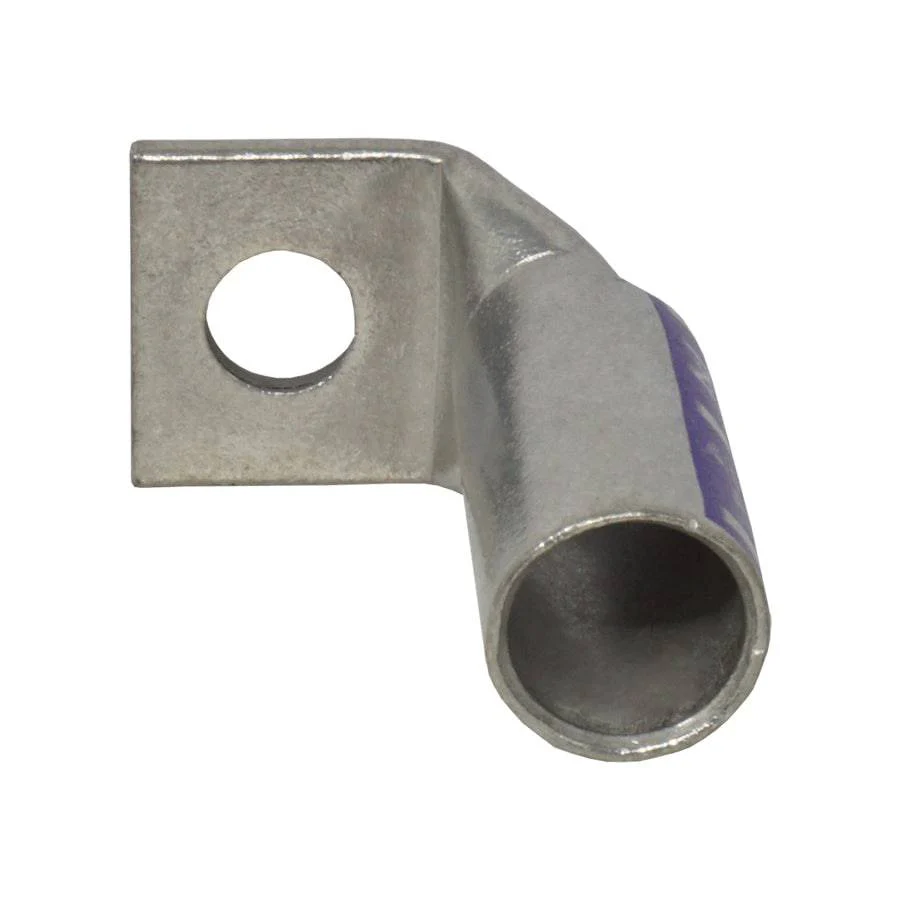

LBF4038 - 90 Degree Long Barrel Compression Lug - 4/0AWG - 3/8" Stud, 1 Piece—
$5.15
The Story
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 4/0Â AWG |
| Stud Size: | 3/8"Â Stud |
| Color: | Purple |
| A: | 17.5mm (0.69") |
| B: | 37.3mm (1.47") |
| C: | 14.2mm (0.56") |
| D: | 25.4mm (1.0") |
| E: | 10.4mm (0.41") |
| G: | 10.2mm (0.40") |
| Material: | Tin Plated Copper |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| UL Approved: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 230A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
