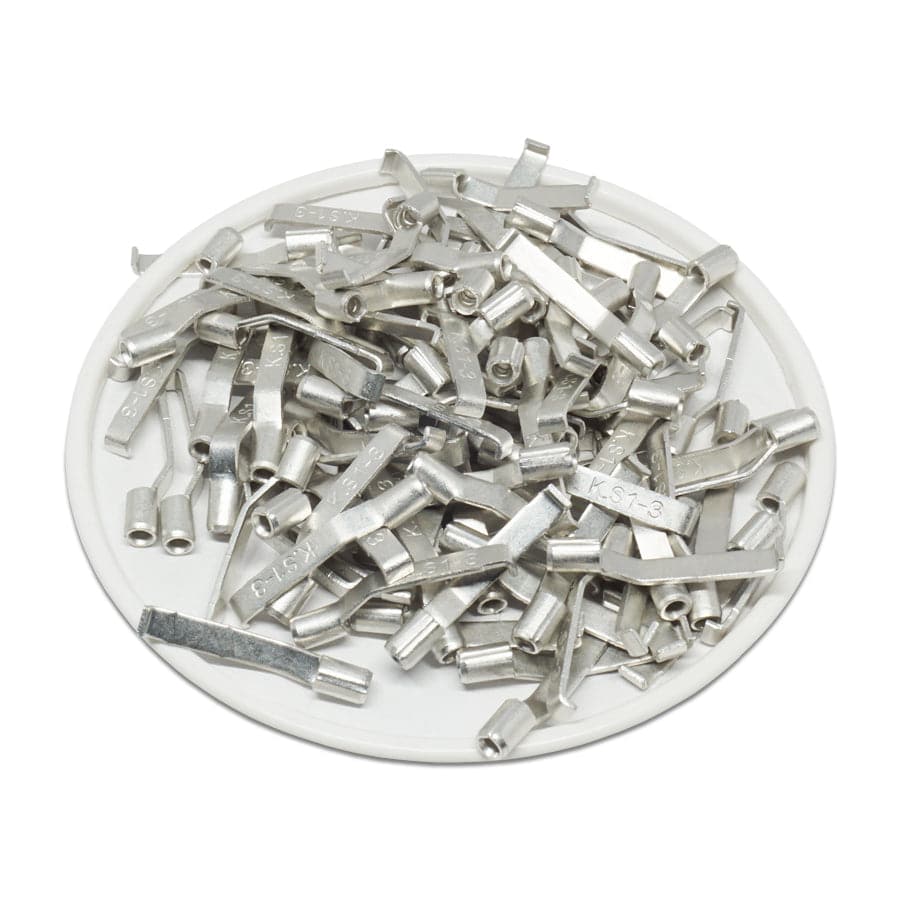

LBNB1-3 - 22 to 16 AWG Non Insulated Lipped Blade Terminals, 1/8" Width, UL Recognized, 100 Pieces—
$14.02
The Story
NON INSULATED LIPPED BLADE TERMINALS
A flat blade terminal is a type of wire connection using a flat conductive blade which is inserted into a blade receptacle. Lipped flat blade terminals, specifically, have a distinctive lipped end to help lock the terminal firmly in place.
DIMENSIONS & FEATURES:
| Wire Size: | 22-16Â AWG |
| T: | 0.8mm (0.03") |
| L: | 22.2mm (0.87") |
| F: | 17.4mm (0.69") |
| E: | 4.8mm (0.19") |
| W: | 3.0mm (0.12") |
| A: | 2.1mm (0.08") |
| D: | 3.4mm (0.13") |
| D1: | 1.7mm (0.07") |
| Material: | Tin Plated Copper |
| Seam: | Brazed |
| Electrical Rating: | 105°C - 600 Volts |
| Electrical Current: | 18Â AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
