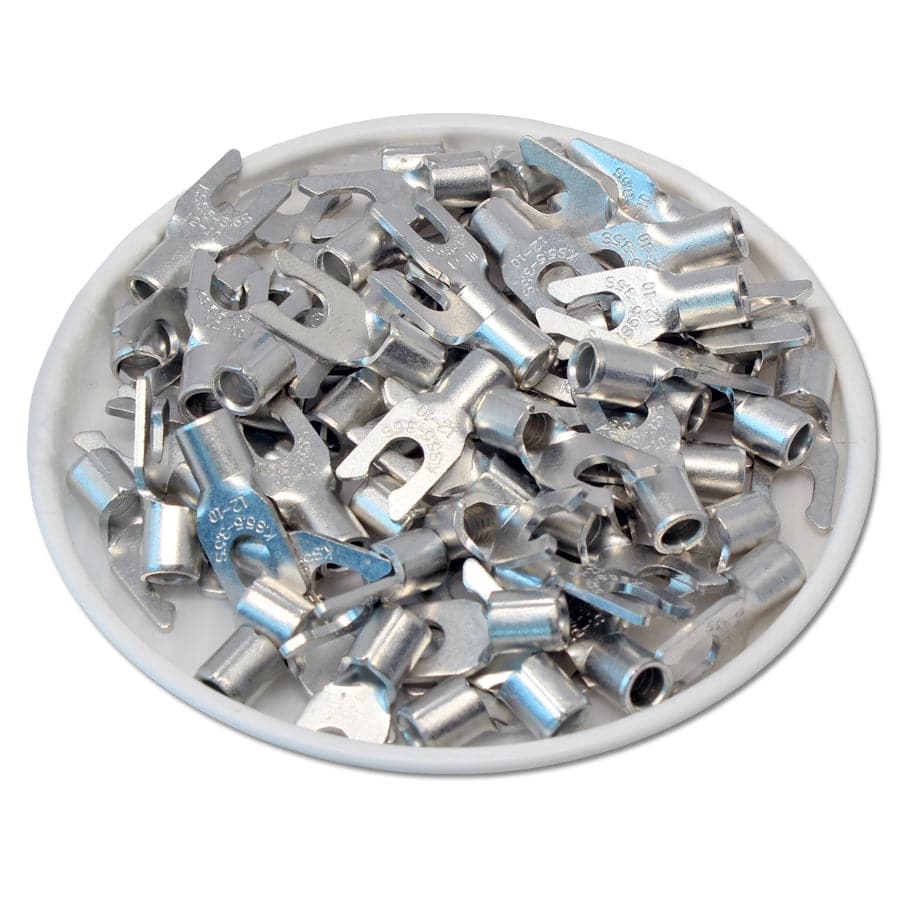

-70%LSNBS5-3.7 Non Insulated Locking Spade Terminals 12-10 AWG—
$19.90
$5.97The Story
Non insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximize tensile strength.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #6 |
| Seam: | Brazed |
| Material: | Copper |
| T: | 1.0mm (0.04") |
| L: | 24.5mm (0.96") |
| F: | 7.0mm (0.28") |
| E: | 6.0mm (0.24") |
| W: | 12.0mm (0.47") |
| D: | 5.6mm (0.22") |
| D1: | 3.4mm (0.13") |
| D2: | 6.5mm (0.25") |
| Maxed Electrical Current: | 30AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
