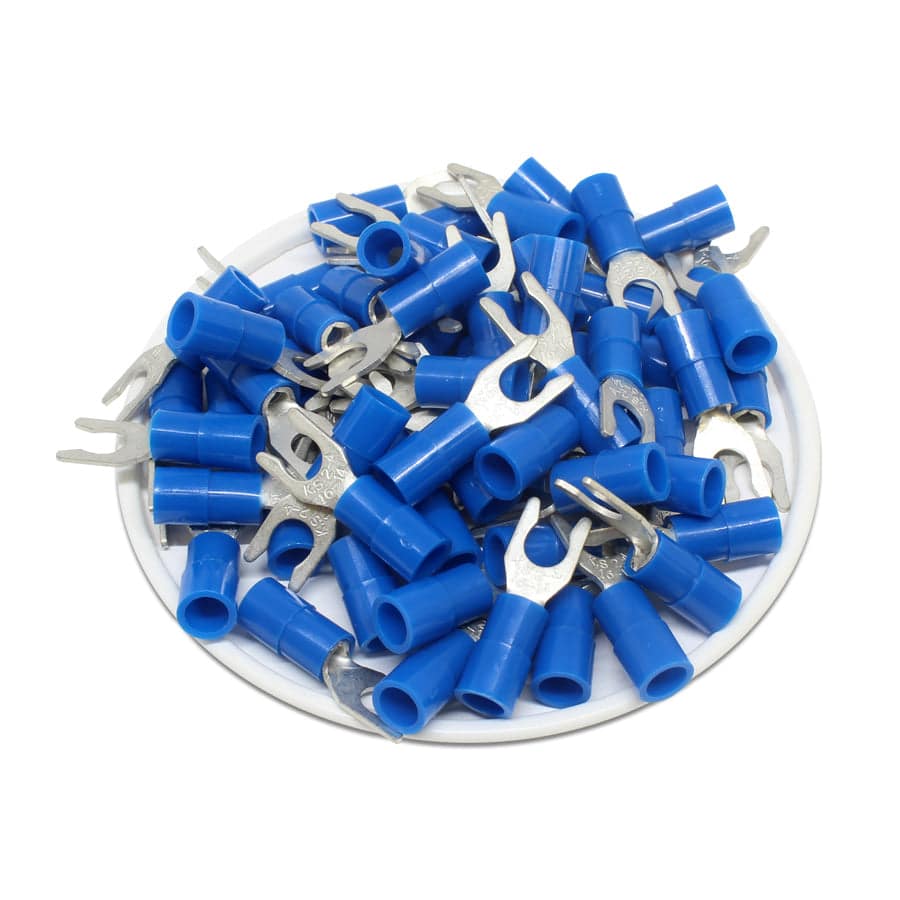

-70%LSNYB2-4 Nylon Insulated Locking Spade Terminals 16-14 AWGā
$14.58
$4.37The Story
Non insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximize tensile strength.
Dimensions & Features:
Product Drawing:
McMaster-Carr: 8007K45
Thomas Betts: RB14-8FL
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Seam: | Brazed |
| Stud Size: | #8 |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Temperature: | 105Ā°C |
| Max Electrical Current: | 30AMP |
| T: | 0.8mm (0.04") |
| L: | 22.0mm (0.87") |
| F: | 6.5mm (0.26") |
| E: | 11.0mm (0.43") |
| W: | 7.2mm (0.28") |
| D: | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| D2: | 4.3mm (0.17") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 8007K45
Thomas Betts: RB14-8FL
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
