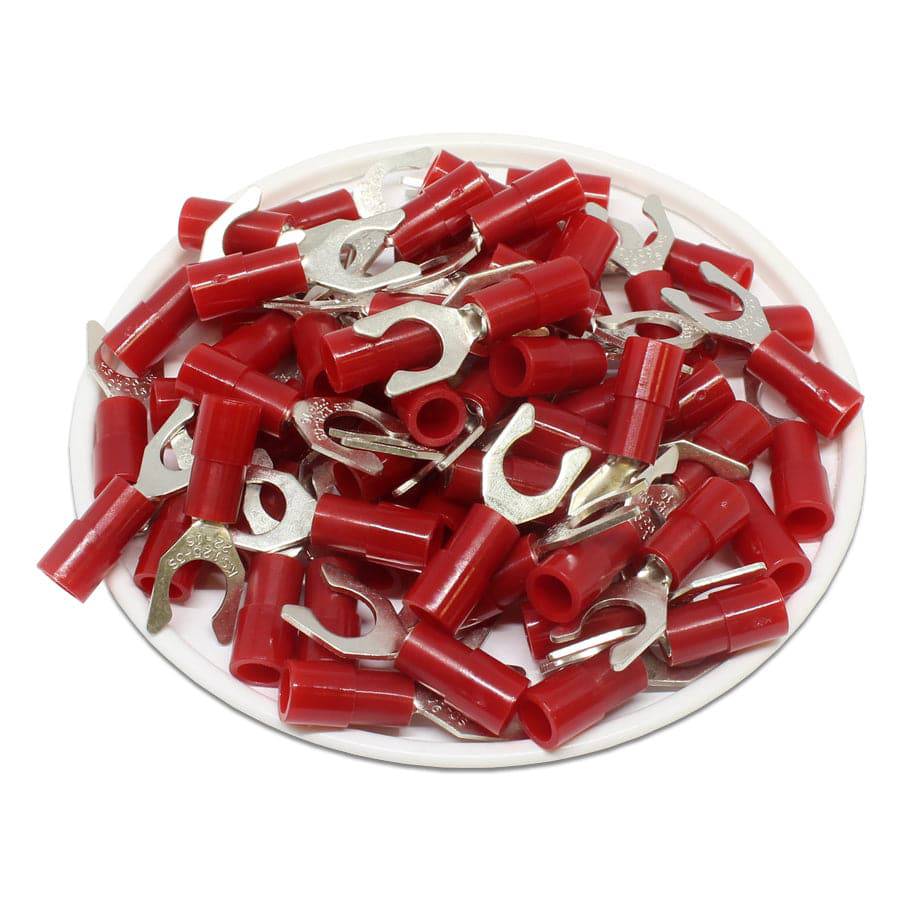

-70%LSNYBS1-5 Nylon Insulated Locking Spade Terminals 22-16 AWGā
$11.10
$3.33The Story
Non insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximize tensile strength.
Dimensions & Features:
Product Drawing:
McMaster-Carr: 8007K43
Thomas Betts: RA18-10FL
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Seam: | Brazed |
| Stud Size: | #10 |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Temperature: | 105Ā°C |
| Max Electrical Current: | 18AMP |
| T: | 0.7mm (0.03") |
| L: | 22.0mm (0.87") |
| F: | 6.5mm (0.26") |
| E: | 11.0mm (0.43") |
| W: | 8.1mm (0.32") |
| D: | 4.0mm (0.16") |
| D1: | 1.7mm (0.07") |
| D2: | 5.3mm (0.21") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 8007K43
Thomas Betts: RA18-10FL
