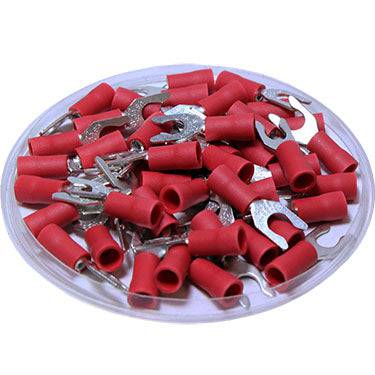

VINYL PVC INSULATED LOCKING SPADE TERMINALS
Vinyl PVC Insulated Locking Spade Terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 22 to 16 AWG |
| Seam: | Brazed |
| Stud Size: | #6 |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Current: | 18AMP |
| Insulation Material: | Vinyl PVC |
| T: | 0.7mm (0.03") |
| L: | 21.0mm (0.63") |
| F: | 6.5mm (0.26") |
| E: | 10.0mm (0.39") |
| W: | 6.4mm (0.25") |
| D: | 4.0mm (0.16") |
| D1: | 1.7mm (0.07") |
| D2: | 3.7mm (0.15") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
Eclipse: 902-427-10
McMaster-Carr: 8007K21
Thomas Betts: 18RA-6FL
Documents
Click to view product spec sheet:
