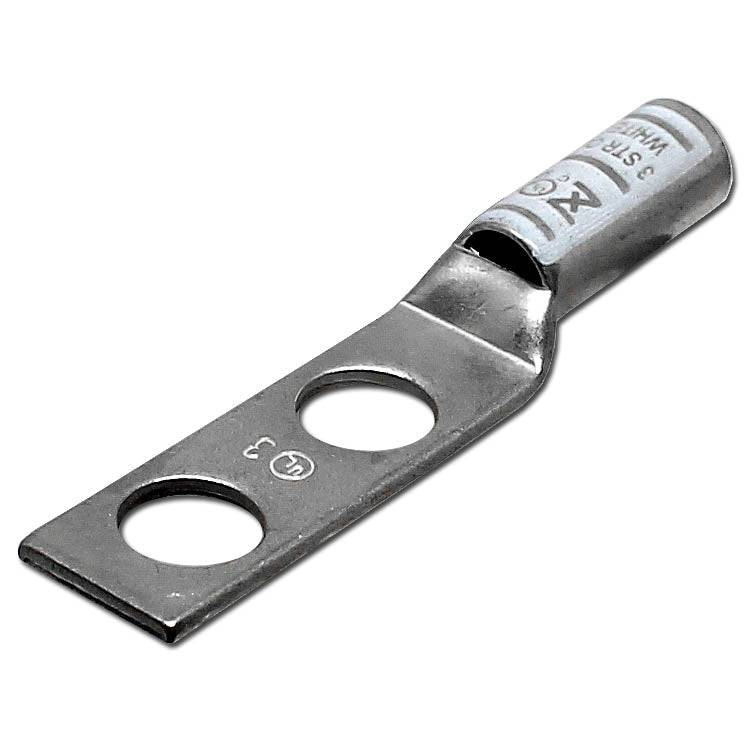

-70%LT314 - 3 AWG Compression Lug - 1/4" Stud Size, 1 Piece—
$1.44
$0.43The Story
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 3Â AWG |
| Stud Size: | 1/4"Â Stud |
| Color: | White |
| L: | 61mm (2.40") |
| L1: | 34.3mm (1.35") |
| L2: | 15.9mm (0.63") |
| D: | 14.5mm (0.57") |
| D1: | 9.9mm (0.39") |
| D2: | 7.9mm (0.31") |
| B: | 22.9mm (0.90") |
| E: | 7.1mm (0.28") |
| F: | 2mm (0.08") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 170A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
