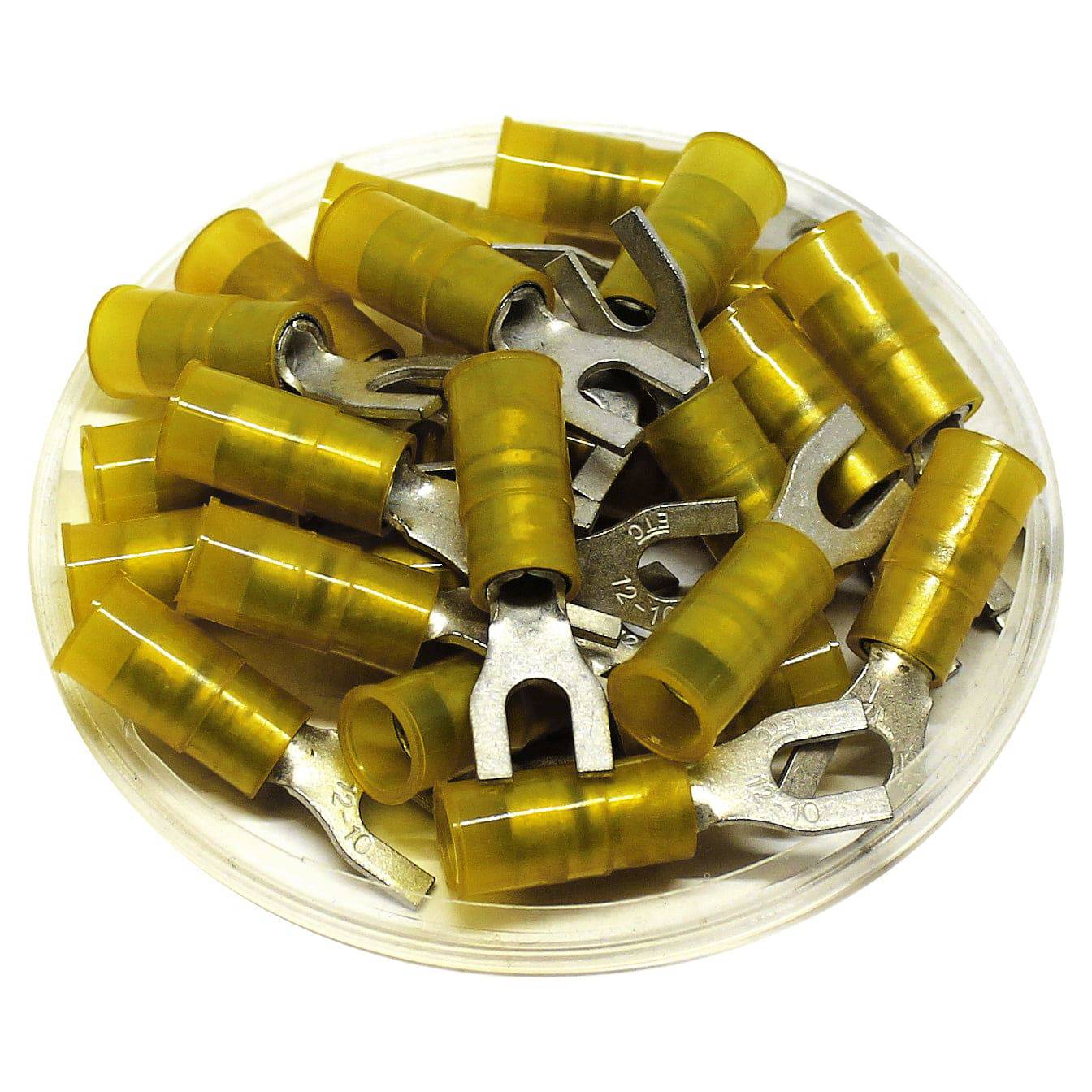

Molex 0191960077 - Nylon Double Crimp Fork Terminals - 12-10 AWG
HomeStore

Molex 0191960077 - Nylon Double Crimp Fork Terminals - 12-10 AWG

Molex 0191960077 - Nylon Double Crimp Fork Terminals - 12-10 AWG

$3.74

Original: $12.46

-70%
Molex 0191960077 - Nylon Double Crimp Fork Terminals - 12-10 AWG—

$12.46

$3.74

The Story

PRODUCT DESCRIPTION

Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2.
DIMENSIONS AND FEATURES
Item Size 12-10 AWG TERMINAL MATERIAL: Tin-Plated Copper
Color YELLOW
 INSULATION MATERIAL: Nylon
T 1mm (.04") STUD SIZE: #8 Stud
L 30.3mm (1.19") TEMPERATURE RATING: 105° C
F 9.8mm (.39") VOLTAGE RATING: 600 Volts
E 16.8mm (.66") UL RECOGNIZED: YES
W 9.5mm (.37") CE CERTIFIED: YES
D 6.5mm (.26") ROHS COMPLIANT: YES
D1 3.4mm (.13")
D2 4.3mm (.17")

TECHNICAL DRAWING




Molex 0191960077 - Nylon Double Crimp Fork Terminals - 12-10 AWG - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

PRODUCT DESCRIPTION

Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2.
DIMENSIONS AND FEATURES
Item Size 12-10 AWG TERMINAL MATERIAL: Tin-Plated Copper
Color YELLOW
 INSULATION MATERIAL: Nylon
T 1mm (.04") STUD SIZE: #8 Stud
L 30.3mm (1.19") TEMPERATURE RATING: 105° C
F 9.8mm (.39") VOLTAGE RATING: 600 Volts
E 16.8mm (.66") UL RECOGNIZED: YES
W 9.5mm (.37") CE CERTIFIED: YES
D 6.5mm (.26") ROHS COMPLIANT: YES
D1 3.4mm (.13")
D2 4.3mm (.17")

TECHNICAL DRAWING
