$11.68

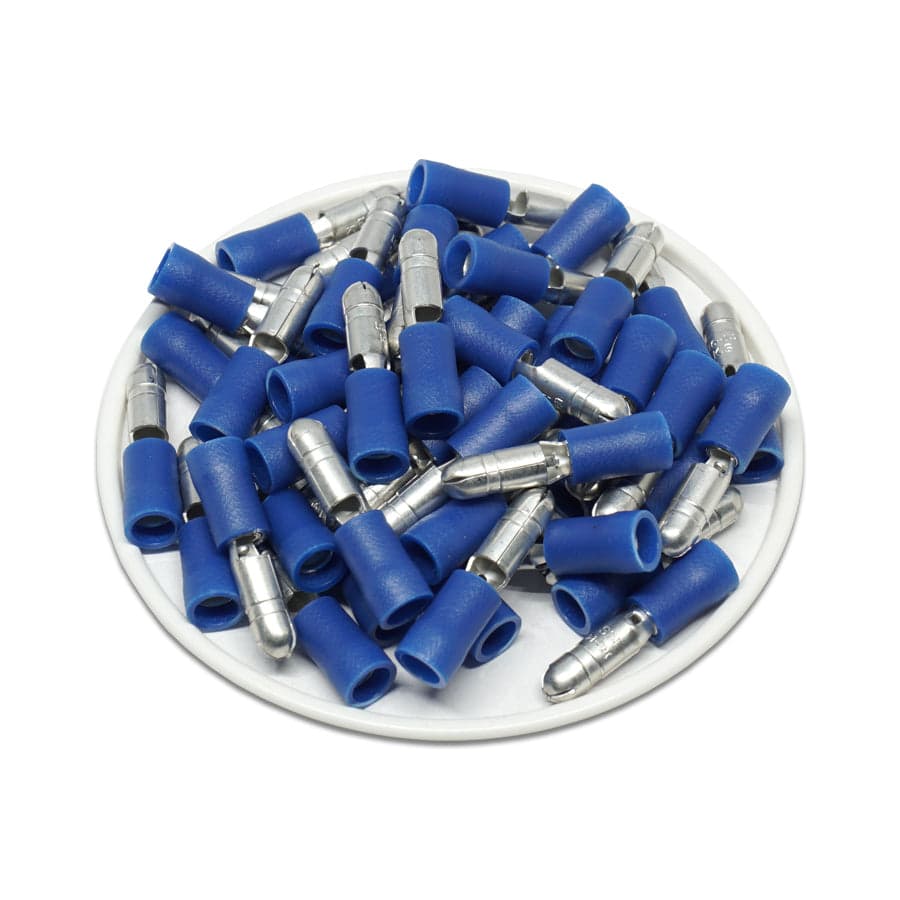

MPDL2-180 - 16 to 14 AWG Vinyl PVC Insulated Male Bullet Connectors, Double Crimp, 100 Pieces—
$11.68
The Story
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Range: | 16-14 AWG |
| W: | 0.18" (4.5mm) |

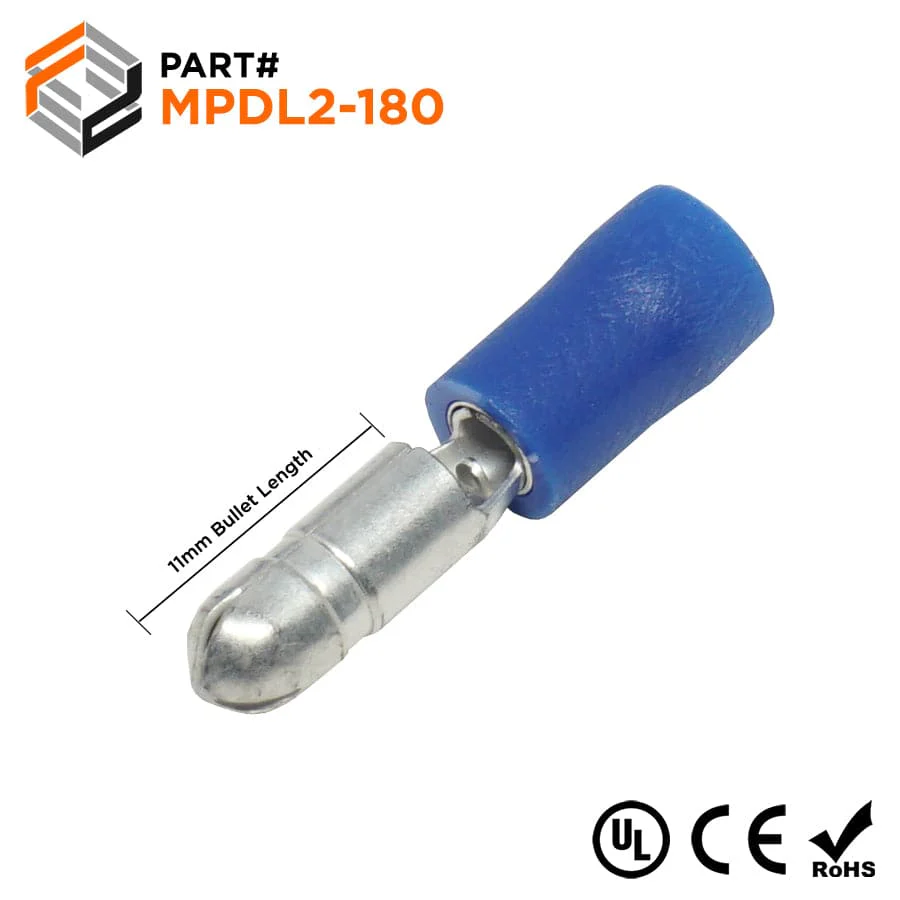

| F: | 0.41" (11.0mm) |
| L: | 0.94" (24.0mm) |
| B: | 0.41" (10.5mm) |
| D: | 0.18" (4.7mm) |
| T: | 0.01" (0.4mm) |
| Terminal Material: | Brass |
| Insulation Material: | Vinyl |
| Insulation Color: | Blue |
| Temperature Rating: | 105oC |
| Max AMP Rating: | 15 AMP |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!
