MPFNYD1-156 - Double Crimp Fully Insulated Male Bullet Connectors - 22-16 AWG - Nylon
HomeStore

MPFNYD1-156 - Double Crimp Fully Insulated Male Bullet Connectors - 22-16 AWG - Nylon

MPFNYD1-156 - Double Crimp Fully Insulated Male Bullet Connectors - 22-16 AWG - Nylon

$4.87

Original: $16.22

-70%
MPFNYD1-156 - Double Crimp Fully Insulated Male Bullet Connectors - 22-16 AWG - Nylon—

$16.22

$4.87

The Story

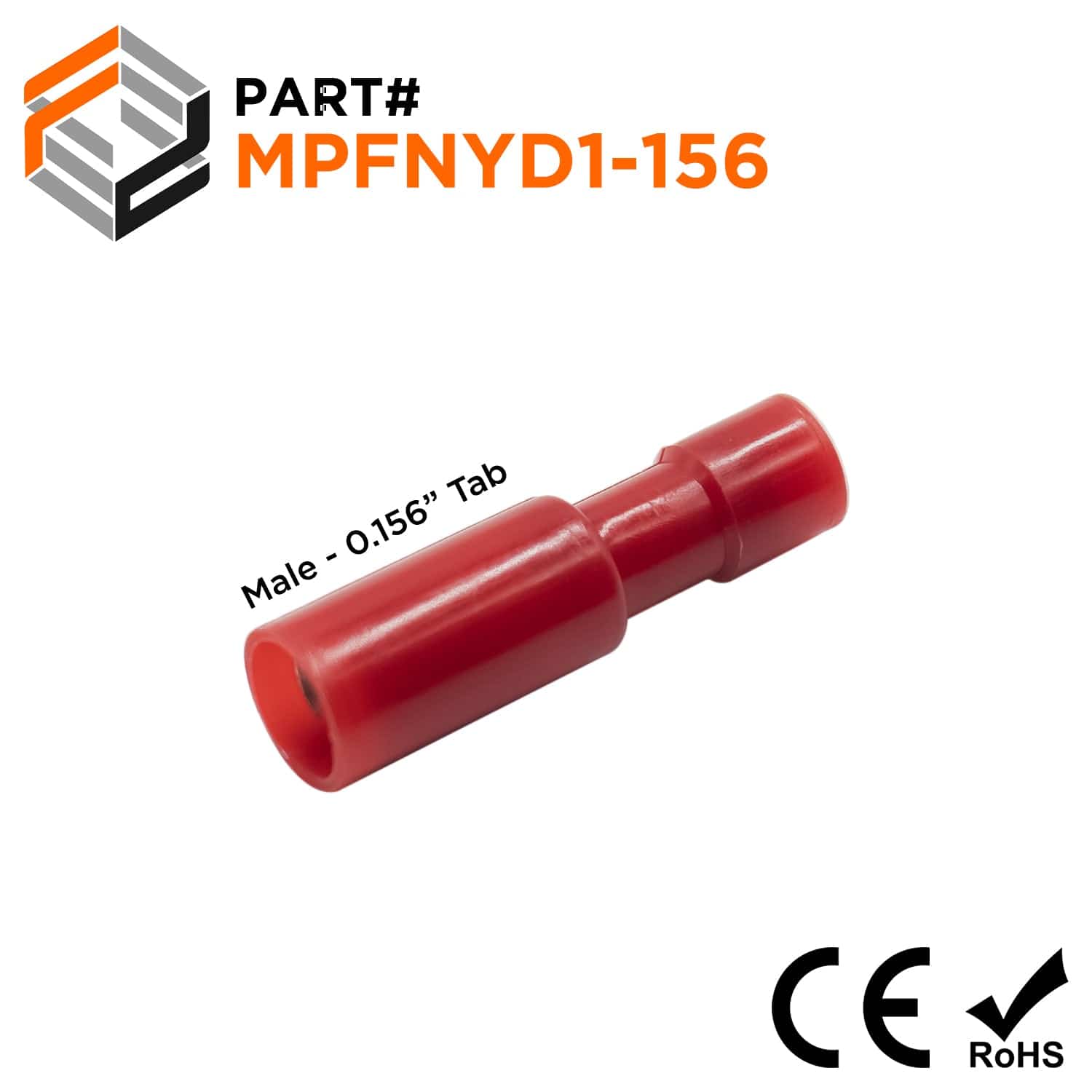

Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on.

Dimensions & Features:

Wire Range: 22-16 AWG
W: 4.0mm (0.157")
F: 10.5mm (0.412")
L: 27.0mm (1.063")
B: 10.0mm (0.394")
D: 4.0mm (0.157")
C: 1.7mm (0.07")
T: 0.4mm (0.016")
Terminal Material: Brass
Insulation Material: Nylon
Insulation Color: Red
Temperature Rating: 105°C - 600 Volts
Max AMP Rating: 10 AMP
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Click below to check out our YouTube channel!
MPFNYD1-156 - Double Crimp Fully Insulated Male Bullet Connectors - 22-16 AWG - Nylon - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

MPFNYD1-156 - Double Crimp Fully Insulated Male Bullet Connectors - 22-16 AWG - Nylon - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on.

Dimensions & Features:

Wire Range: 22-16 AWG
W: 4.0mm (0.157")
F: 10.5mm (0.412")
L: 27.0mm (1.063")
B: 10.0mm (0.394")
D: 4.0mm (0.157")
C: 1.7mm (0.07")
T: 0.4mm (0.016")
Terminal Material: Brass
Insulation Material: Nylon
Insulation Color: Red
Temperature Rating: 105°C - 600 Volts
Max AMP Rating: 10 AMP
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Click below to check out our YouTube channel!
