$8.42

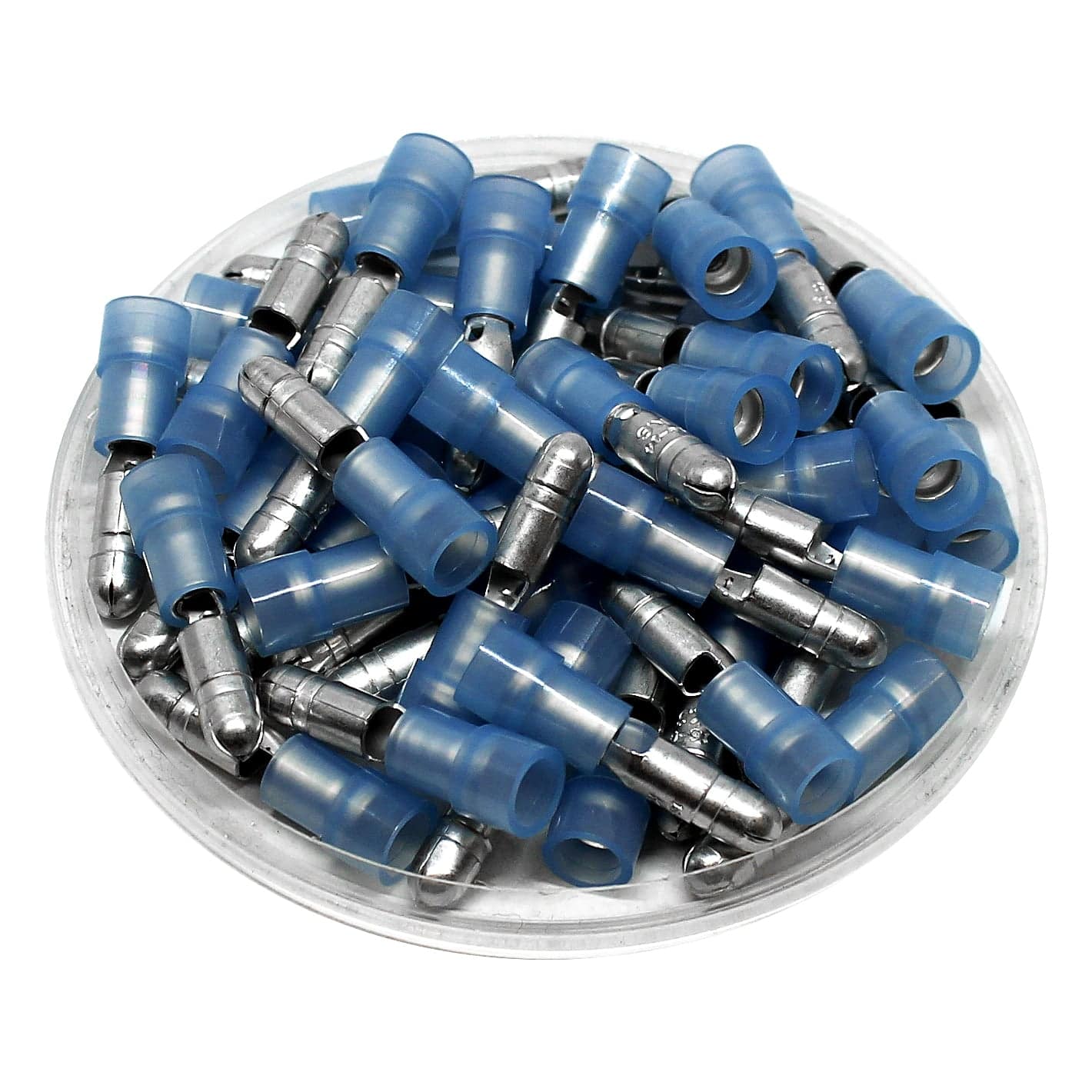

MPNY2-180 - 16 to 14 AWG Nylon Insulated Male Bullet Connectors, 100 Pieces—
$8.42
The Story
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| C: | 2.3mm (.09") |
| L: | 22.2mm (.87") |
| F: | 9mm (.35") |
| B: | 11mm (.43") |
| W: | 4.5mm (.18") |
| D: | 4.5mm (.18") |
| Material: | Tin-Plated Brass |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 15A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!Description
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
