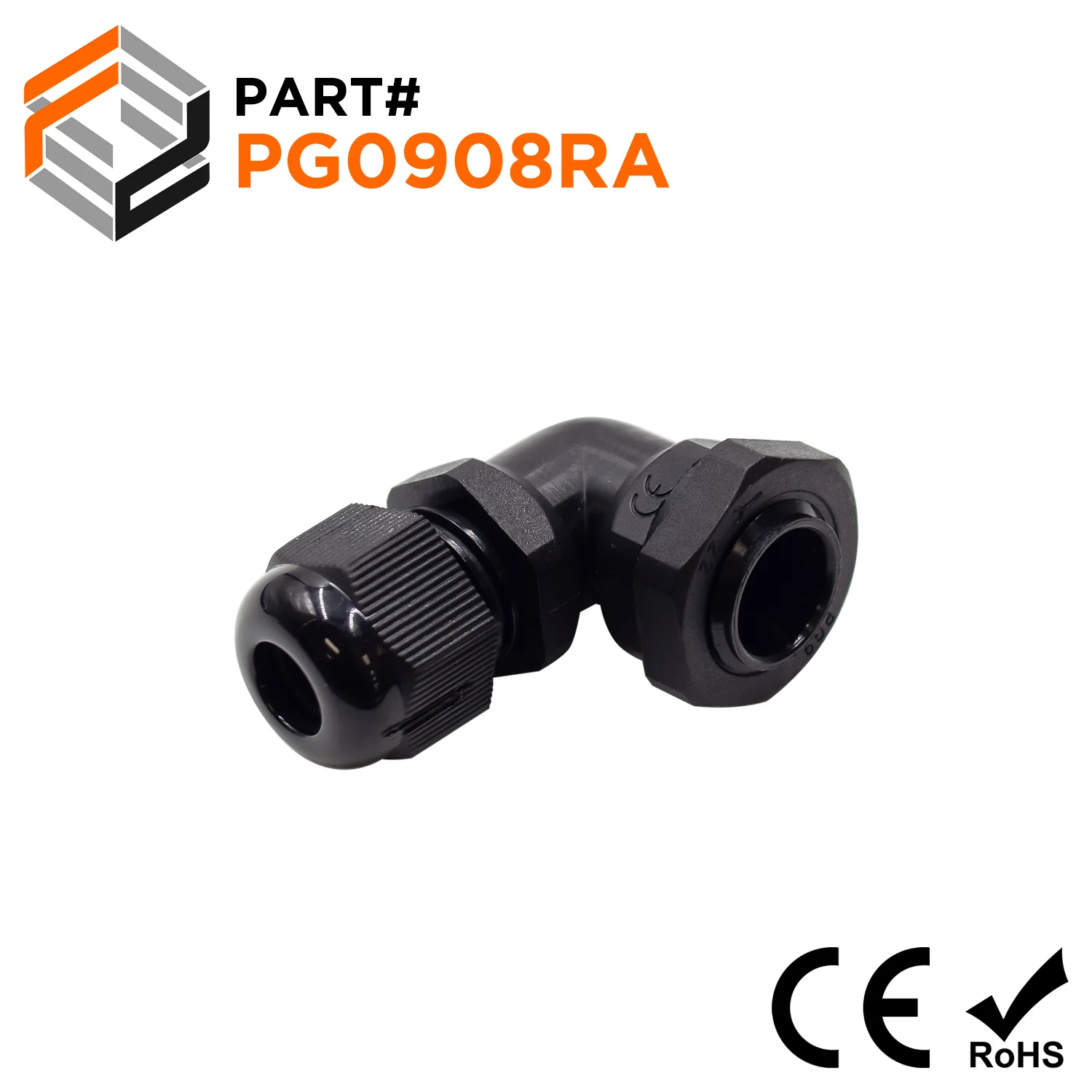

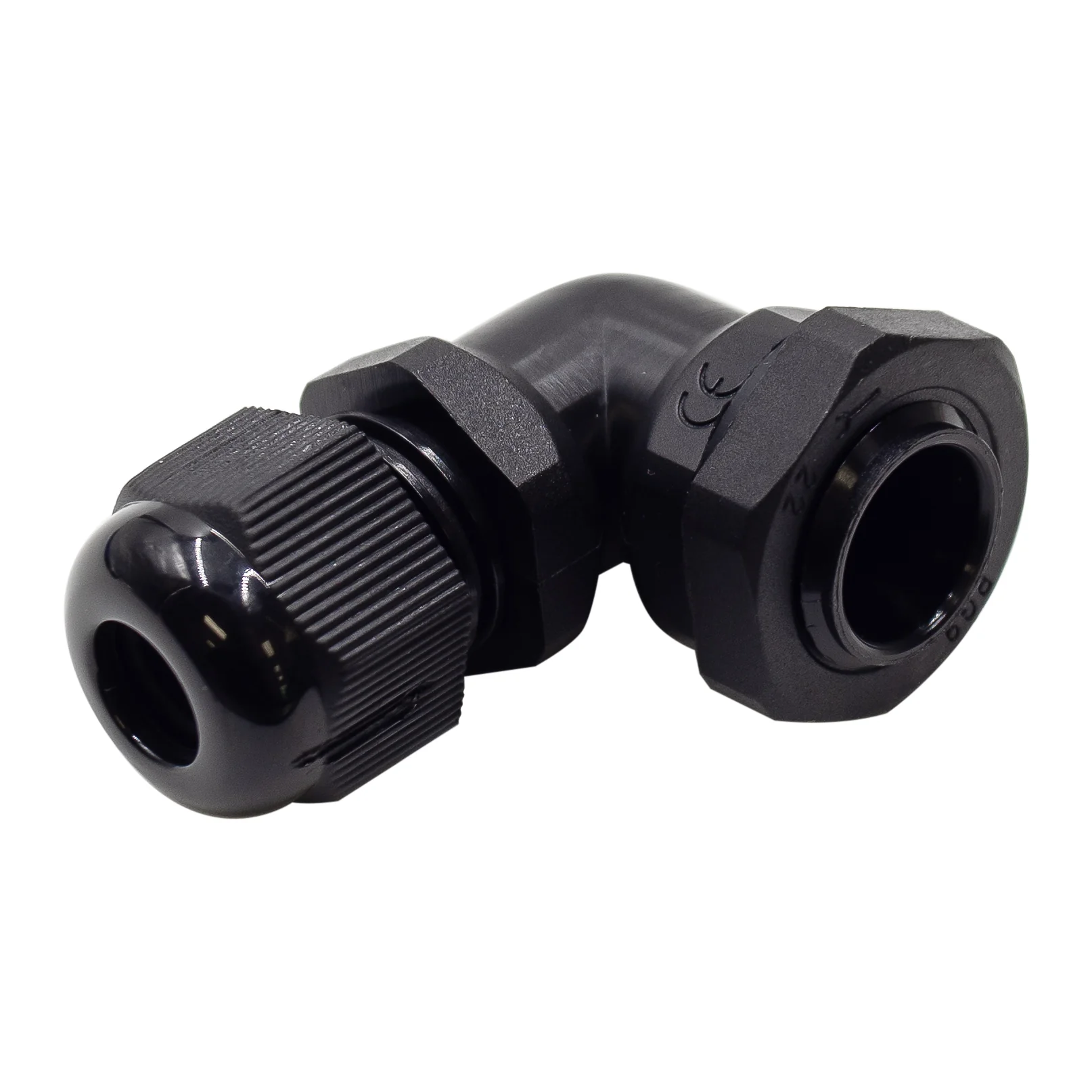

-70%PG9 Right Angle Cable Gland - 4-8mm - Black - PG0908RA—
$1.32
$0.40The Story

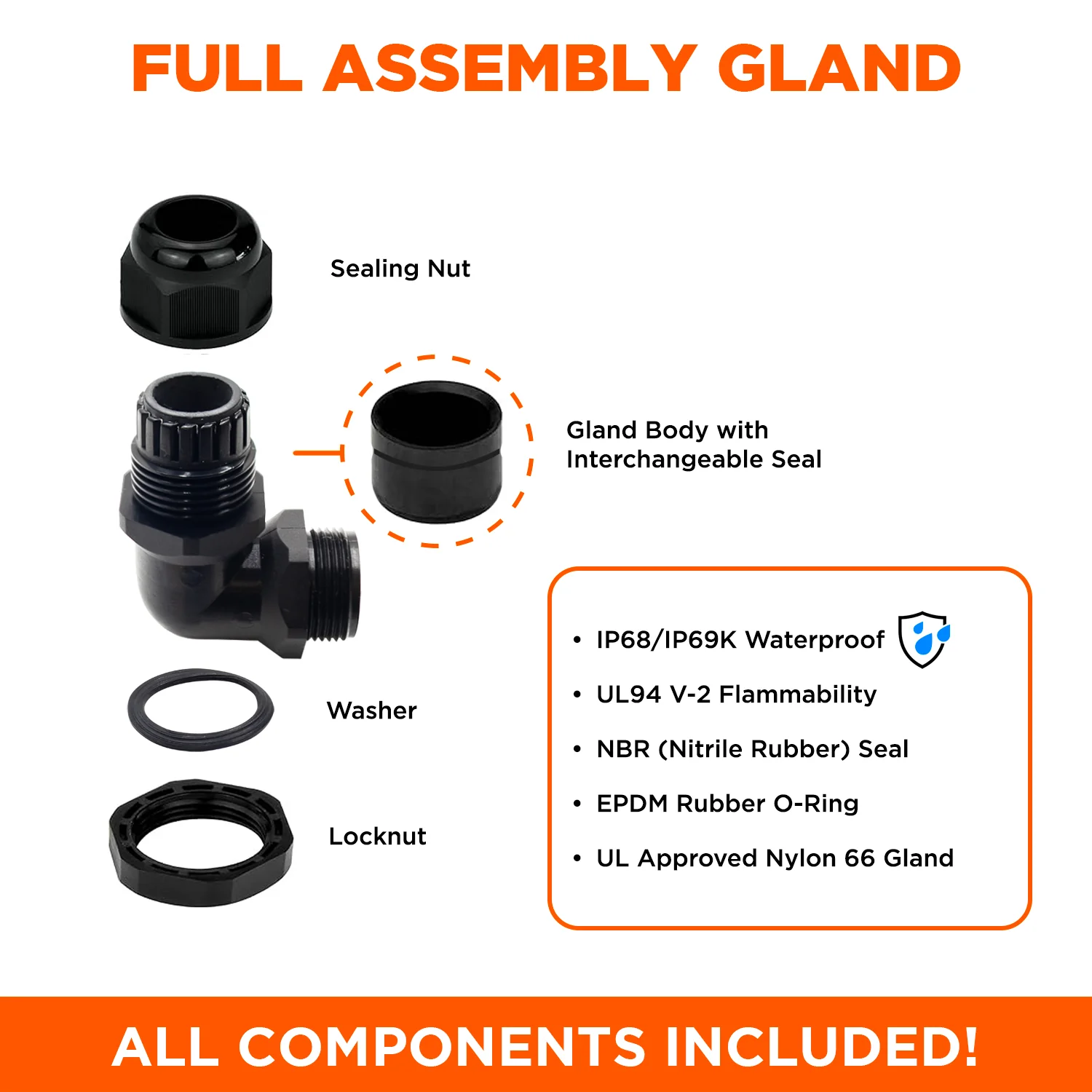

Right Angle PG Thread Black Cable Gland (Includes both locknut and washer)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG9 |
| Cable Range: | 4-8mm |
| Color: | Black |
| C1: | 15.3mm (0.60") |
| C2: | 14mm (0.55") |
| D2: | 11mm (0.43") |
| B1: | 8.9mm (0.36") |
| H: | 24.5mm (0.96") |
| L: | 42mm (1.65") |
| L1: | 7.7mm (0.30") |
| L2: | 10.2mm (0.40") |
| L3: | 14.8mm (0.58") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
