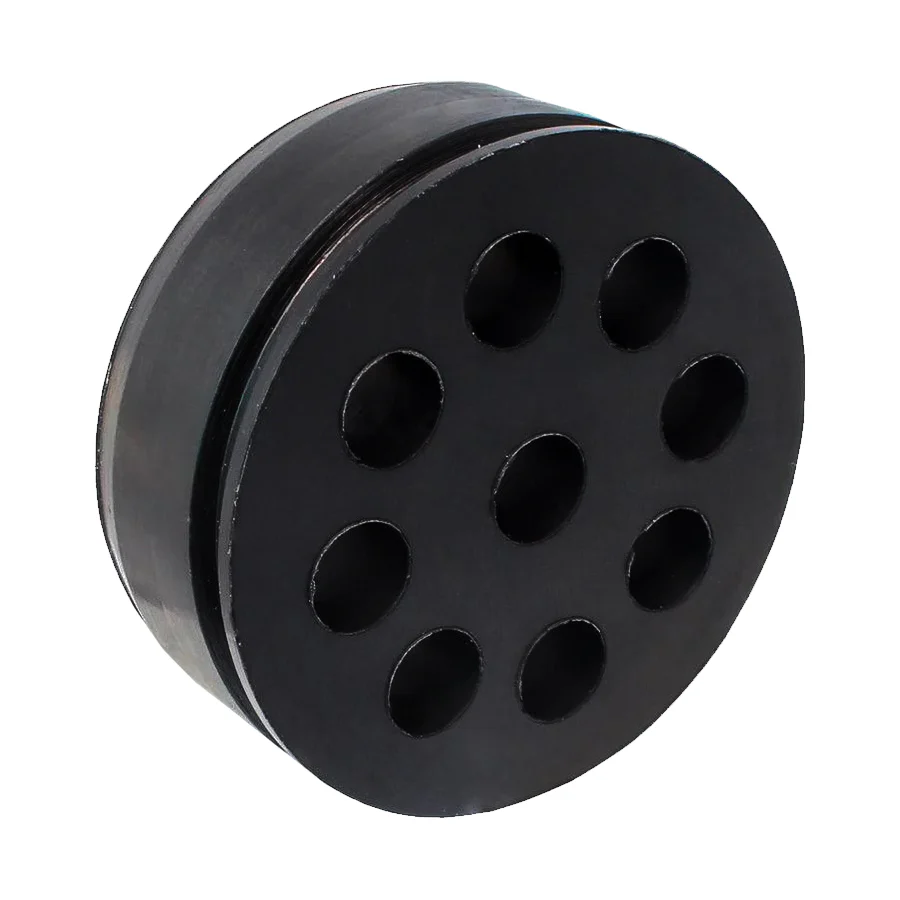

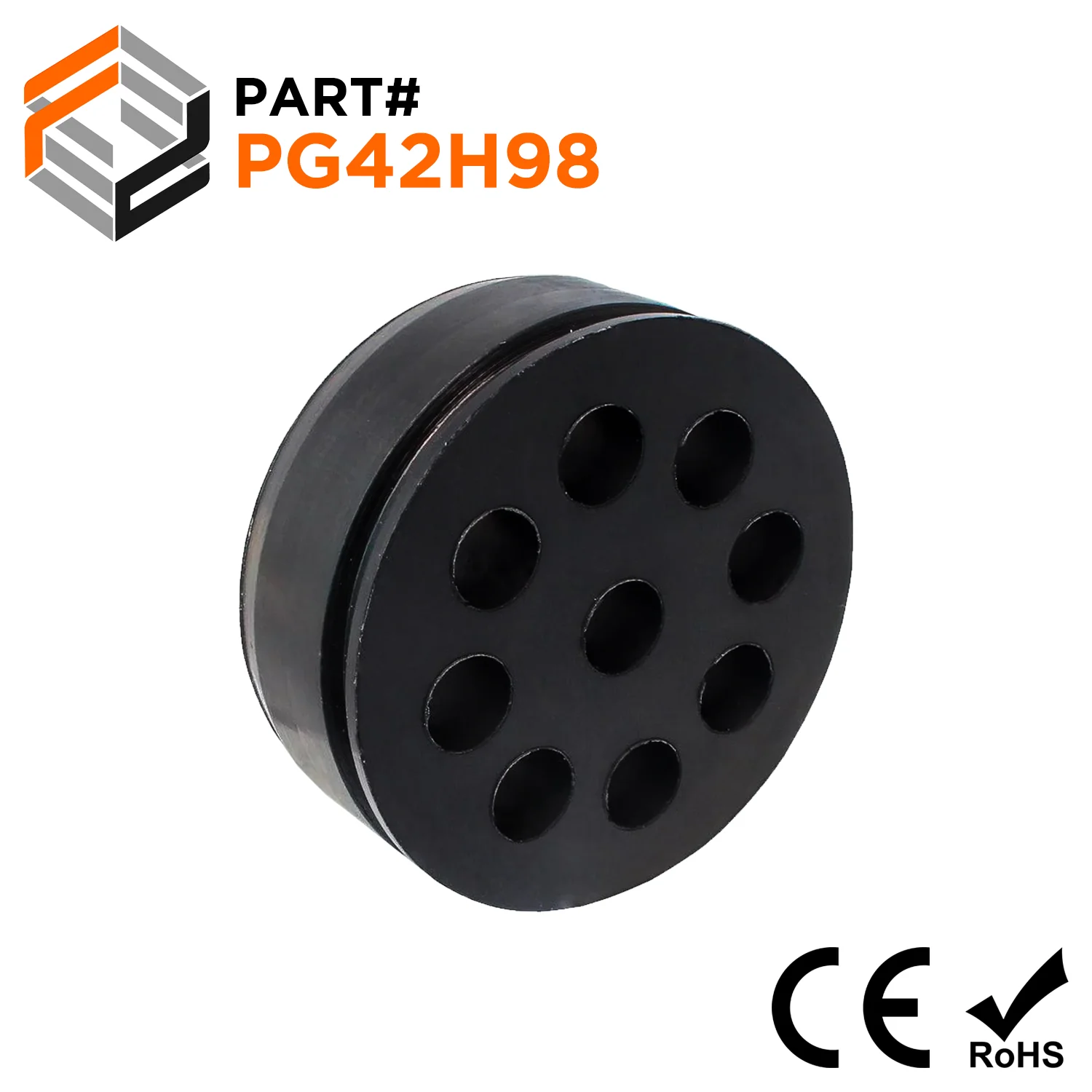

PG42H98 - PG42 Multi-Hole Seal - 9 Hole—
$1.76
The Story
Multi-Hole seal inserts are designed to allow multiple conductors through one cable gland. The gland's internal rubber seal must be first removed in order to insert any multi-hole seal.Â
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG42 |
| Holes: | 9Â Holes |
| D: | 8mm (0.31") |
| L: | 18.9mm (0.74") |
| W: | 49.2mm (1.94") |
| Seal Material: | NBR (Nitrile Rubber) |
| Ingress Protection: | IP68 |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
