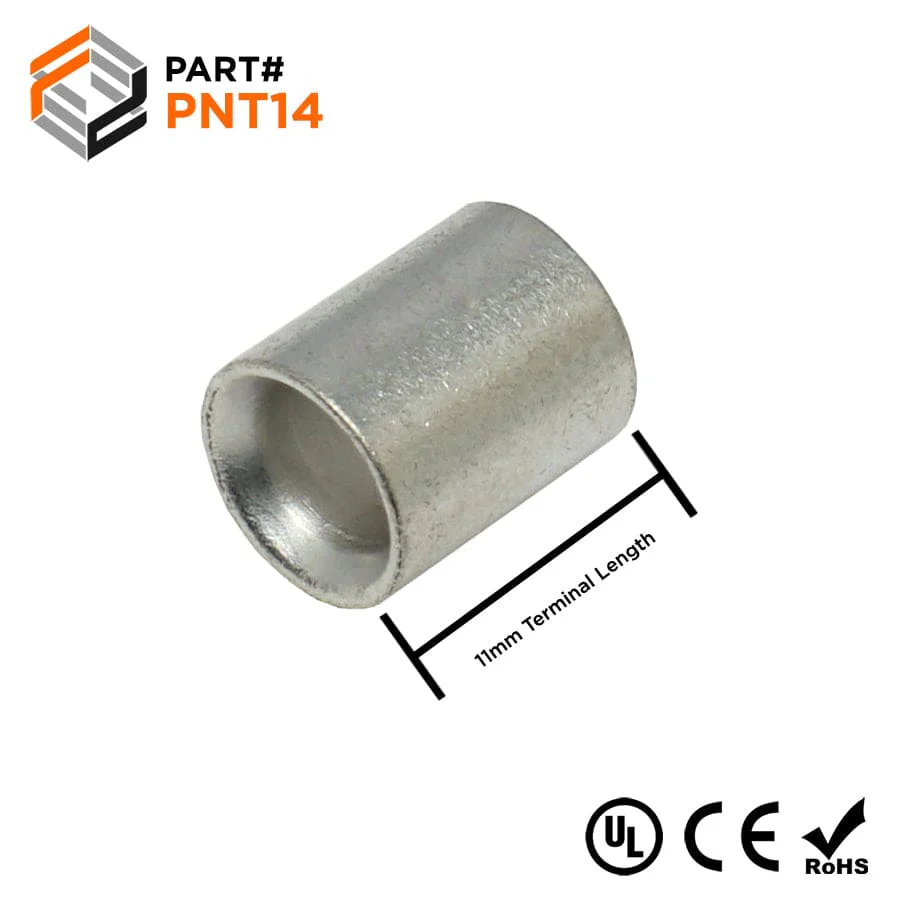

6 AWG Non Insulated Parallel Connectors, 7/16" Length, UL Approved, 50 Pieces - PNT14—
$17.54
The Story
NON INSULATED PARALLEL CONNECTORS
Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.
Dimensions & Features:
| Wire Range: | 6 AWG |
| L: | 11mm (0.43") |
| D: | 8.9mm (0.35") |
| D1: | 5.9mm (0.23") |
| Wall Thickness: | 1.0mm (0.04") |
| Material: | Tin-Plated Copper - Seamless |
| Configuration: | Straight |
| Max Electrical Current: | 95 AMP |
| UL Recognized: | Yes |
| CE Cerified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Elecdirect: P7F
