NON INSULATED PARALLEL CONNECTORS
Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.
Dimensions & Features:
| Wire Range: | 12-10 AWG |

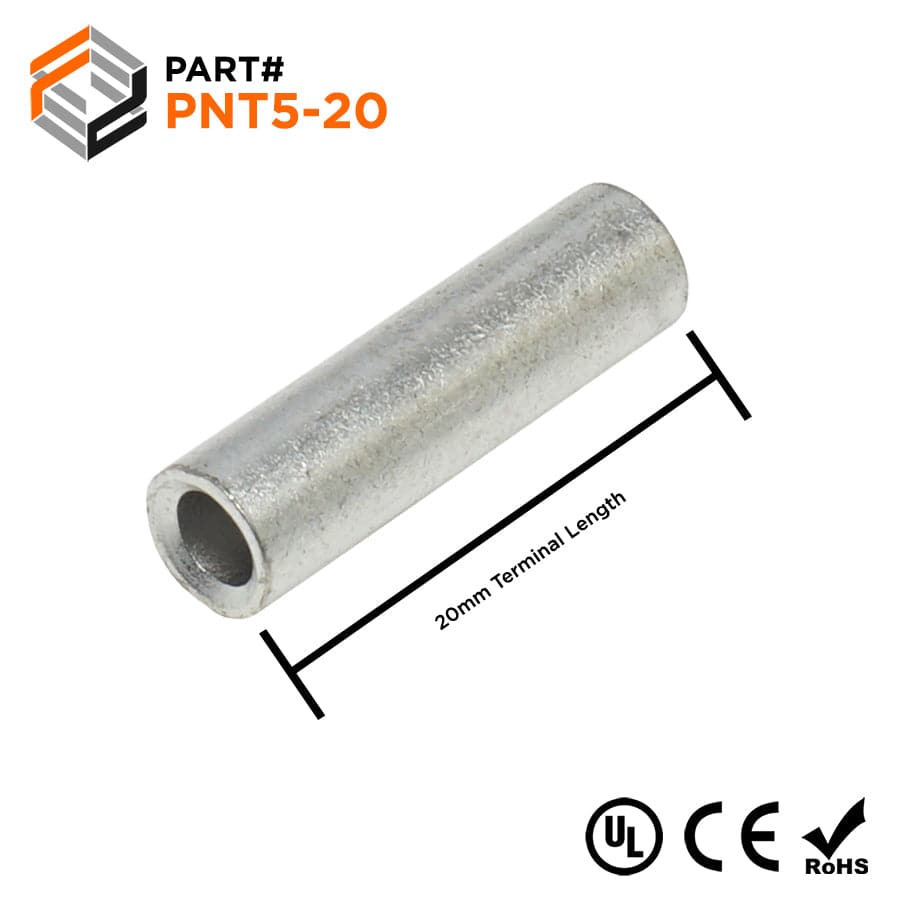

| L: | 20mm (0.79") |
| D: | 5.4mm (0.21") |
| D1: | 3.4mm (0.13") |
| Material: | Tin-Plated Copper - Seamless |
| Configuration: | Straight |
| Max Electrical Current: | 50 AMP |
| Max Electrical Rating: | 105oC - 600 Volts |
| CE Cerified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
