The Story

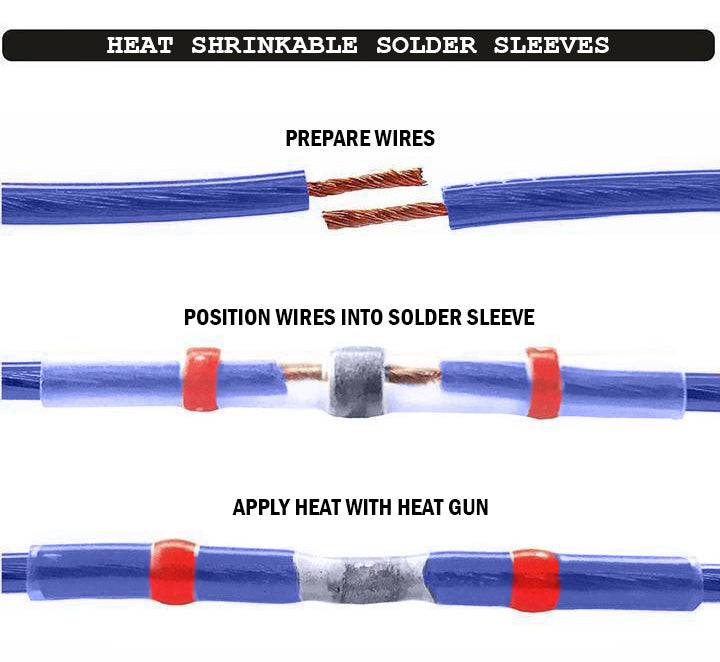

Heat shrink solder sleeves provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
Dimensions & Features:
| Wire Size: | 16-14Â AWG |
| Color: | Blue |
| L: | 40mm ± 1.5 (1.57") |
| D: | 4.5mm (0.18") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyolefin |
| Temperature Rating: | -55°C to 125°C |

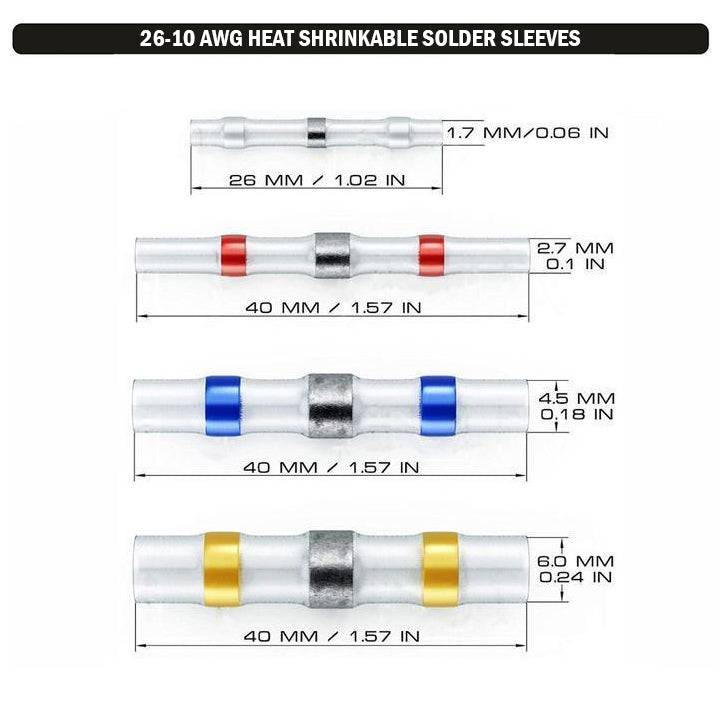

Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
