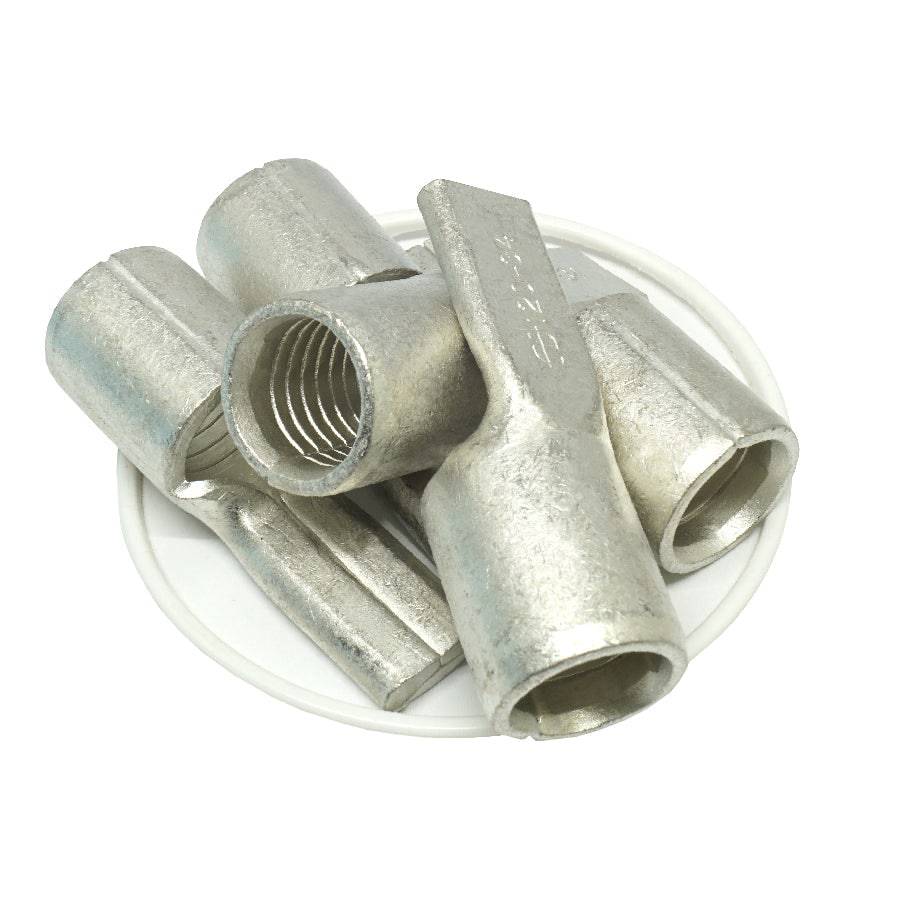

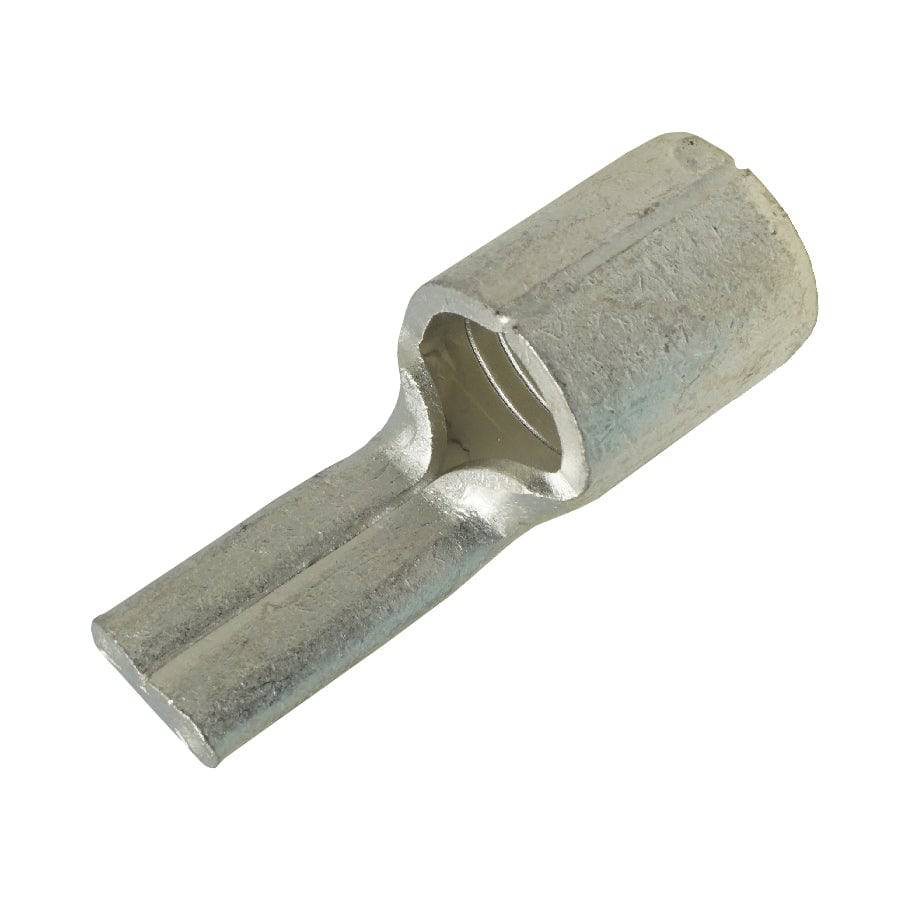

PTNB120-34 - 4/0 AWG Non Insulated Pin Terminals, 34mm Pin, 10 Pieces—
$56.93
The Story
Pin terminals offer a quick and easy connection in applications where set screws or clamps are used to make electrical contact with the wire. Pin terminals simplify the insertion of stranded wire into wire blocks by preventing wire strand foldback.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 4/0 AWG |
| T: | 6.2mm (0.20") |
| L: | 58mm (2.3") |
| F: | 34mm (1.33") |
| E: | 22mm (0.87") |
| W: | 14mm (0.55") |
| D: | 22.5mm (0.89") |
| D1: | 16.5mm (0.65") |
| Seam: | Brazed |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 400A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
