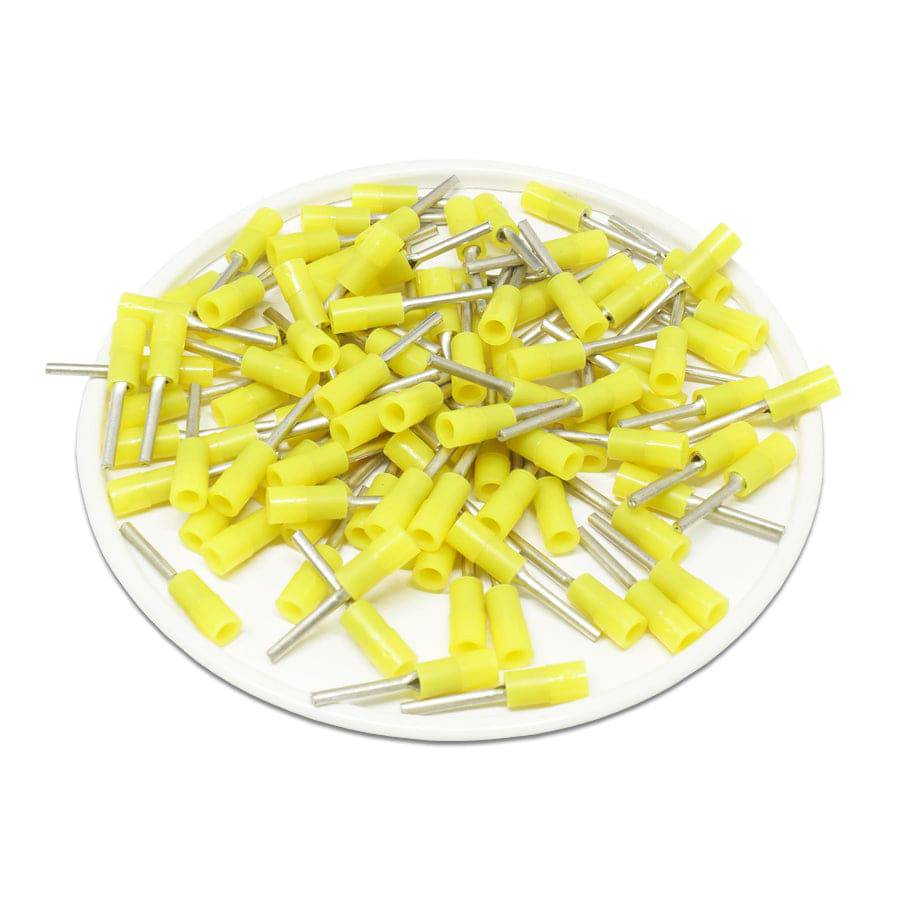

-70%PTNYB05-9 - Nylon Insulated Pin Terminals - 26-22 AWG Single Crimp—
$7.75
$2.32The Story
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 26-22 AWG |
| Color: | Yellow |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| T: | 0.5mm (0.020") |
| L: | 18.0mm (0.709") |
| F: | 10.0mm (0.394") |
| E: | 8.0mm (0.315") |
| W: |
1.4mm (0.055") |
| D: | 2.2mm (0.087") |
| D1: | 1.0mm (0.039") |
| Max Temperature Rating: | 105°F |
| Max Voltage Rating: | 600 Volts |
| Max Electrical Current: | 9AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
